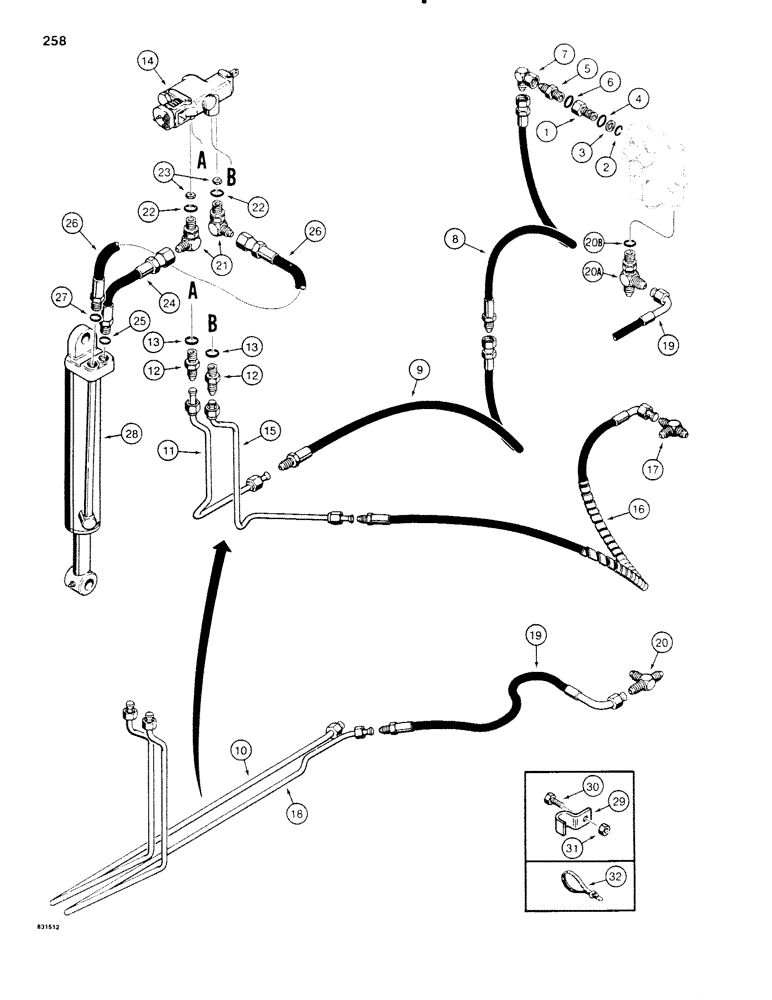

Запчасти Case SD100 (258) - BACKFILL BLADE HYDRAULIC CIRCUIT, MECHANICAL ANGLING, USED ON 30+4 SERIAL NUMBER 4700 AND AFTER (35) - HYDRAULIC SYSTEMS

D61608

SLEEVE

PLUG ASSEMBLY - power beyond, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond, Includes: Ref. 2-4

1шт.

2

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

3

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- adapter

1шт.

5

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 6 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

8

H202101

ELECTRICAL WIRE

HOSE - 28" (711 mm) long pressure from steering valve

1шт.

9

H247841

HOSE

- 34" (864 mm) long, pressure, Serial Range: hose-tube

1шт.

10

H579565

TUBE,0.5" OD

- pressure, hose to valve, used with line layer

1шт.

11

H562116

TUBE,0.5" OD

- pressure, hose to valve, used without line layer

1шт.

12

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 13 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

14

H537647

LOCK VALVE

CONTROL VALVE - one spool, parts list figure 270

1шт.

15

H56124

TUBE - return, valve to hose, used without line layer

1шт.

16

H281576

HOSE

- 90 degree tube end, 89" (2261 mm) long, return, used without line layer

1шт.

17

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- return, used with refs. 15 and 16 only, see figures 168 - 174 for return curcuit

1шт.

18

H579573

TUBE,0.5" OD

- return, valve to hose, used with line layer

1шт.

19

H241547

HOSE

- 90 degree tube end, 23" (584 mm) long, return, used with line layer

1шт.

20

218-594

TEE,3/4"-16, 37 Degree

- return, used with refs. 18 and 19 only, see figure 164, ref. 9 for 30+4 and 40+4 Trencher return circuit

1шт.

20a

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Return, Used with refs. 18 and 19 only, See figure 166, Ref. 1 for 30+4 Special return circuit 3/4"-16, 37º x 3/4"-18, O-Ring Run

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

23

H206235

SCREW

RESTRICTOR - special, .052" (1.321 mm) orifice

1-2шт.

24

H196071

HOSE ASSY.

HOSE - 11-1/2" (292 mm) long, valve port "A" to closed end of cylinder, Includes: Ref. 25

1шт.

26

H196063

HOSE ASSY.

HOSE - 13" (330 mm) long, valve port "B" to rod end of cylinder, Includes: Ref. 27

1шт.

28

H559435

CYLINDER BLOCK

CYLINDER - blade lift, parts list figure 278

1шт.

29

H51763

CLAMP

- hose

1шт.

30

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

31

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex self-locking, 5/16" - 18 NC

1шт.

32

R38237

STRAP

TIE STRAP - hose

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
