Запчасти Case SD100 (254) - SELECTOR VALVE CONTROLS USED WITH BACKFILL BLADE AND LINE LAYER (35) - HYDRAULIC SYSTEMS

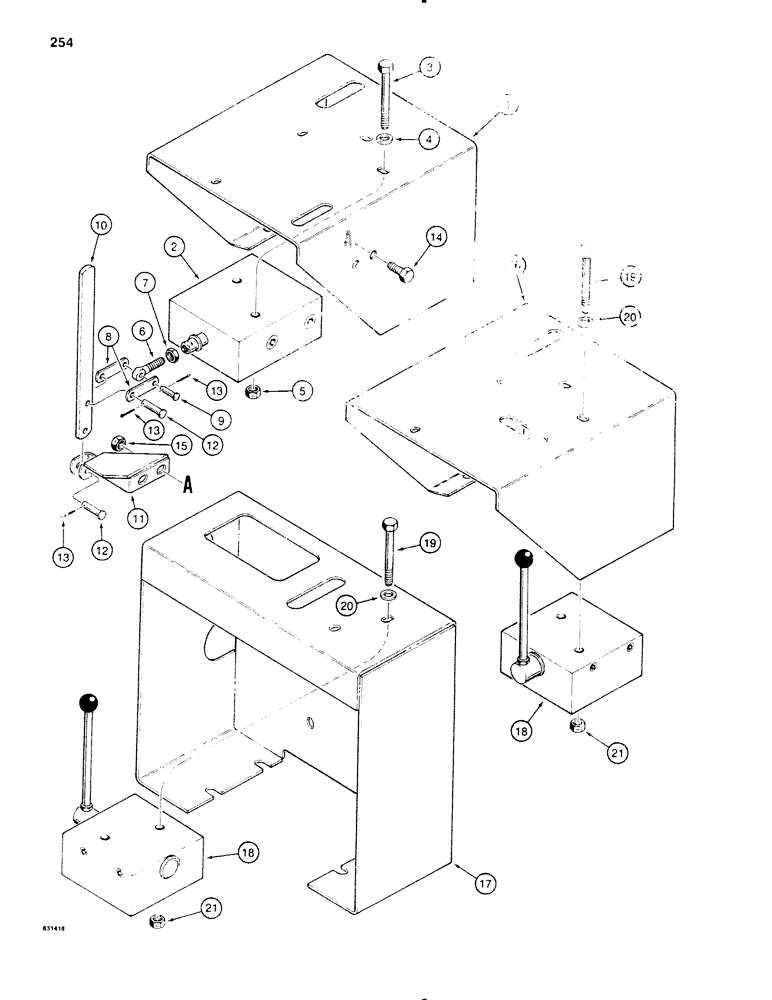

Схема запчастей Case SD100 - (254) - SELECTOR VALVE CONTROLS USED WITH BACKFILL BLADE AND LINE LAYER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONSOLE - valve mounting, no longer used

1шт.

2

H594887

VALVE

SELECTOR VALVE - push-pull, parts list figure 274, no longer used, for service order H616763

1шт.

3

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

6

H213421

ROD

EYEBOLT - valve

1шт.

7

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

8

H185066

DRAG LINK

LINK -, Serial Range: spool-lever

2шт.

9

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

1шт.

10

H213181

HANDLE

- valve control

1шт.

11

H571273

LEVER

BRACKET - handle mounting

1шт.

12

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long

2шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

16

H559930

CONSOLE

- valve mounting, see figure 248 for console and mounting used with one or three spool control valve only

1шт.

17

H628495

CONSOLE - valve mounting, see figure 252 for console and mounting used with one or three spool control valve only

1шт.

18

H616763

LOCK VALVE

SELECTOR VALVE - rotational, parts list figure 274 used with one or three spool control valve only

1шт.

19

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Used with one or three spool control valve only Hex, 5/16"-18 x 2 3/4", G5

2шт.

20

195-521

WASHER,5/16", SAE

- flat, 516" used with one or three spool control valve only

2шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC used with one or three spool control valve only

2шт.
