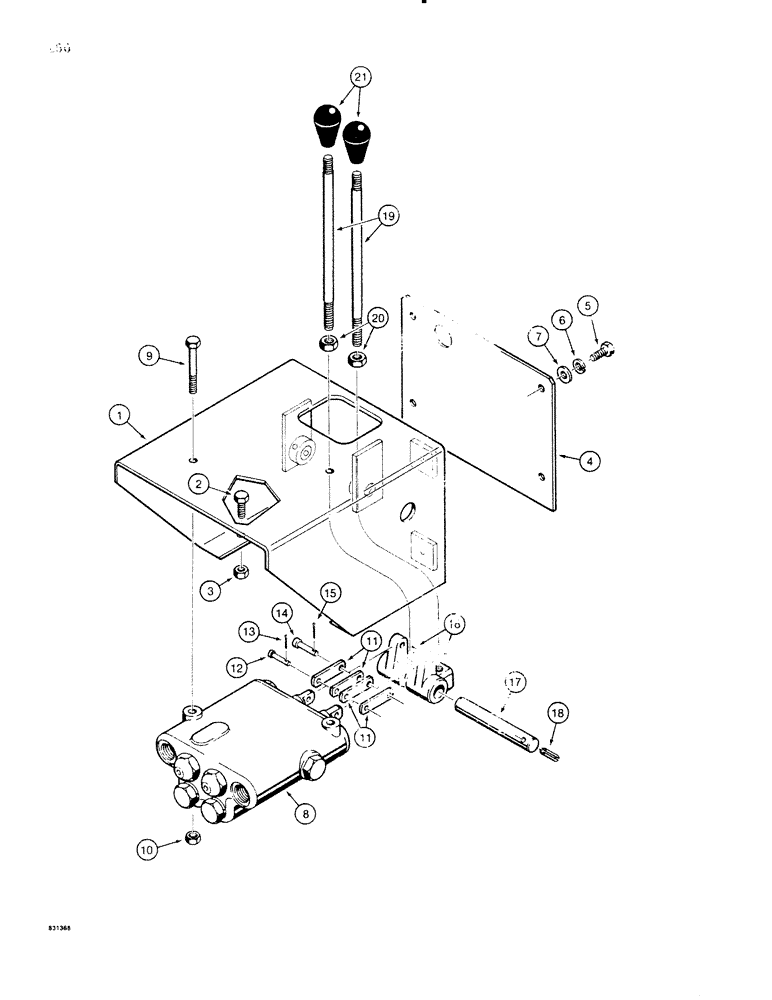

Запчасти Case SD100 (250) - BLACKFILL BLADE CONTROLS, HYDRAULIC ANGLING, ONE ANGLE CYLINDER (35) - HYDRAULIC SYSTEMS

1

H561597

CONSOLE

- valve mounting

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

4

H195131

PLATE

COVER - console, front

1шт.

5

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4"

4шт.

6

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16", if used

4шт.

8

H553818

VALVE

CONTROL VALVE - two spool, parts list figure 52

1шт.

9

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

11

H185066

DRAG LINK

LINK -, Serial Range: spool-lever

4шт.

12

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - speciall, 3/16" x 57/64' long, spool

2шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

14

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long, lever

2шт.

15

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

16

H275263

LEVER

- control handle

2шт.

17

H201020

SHAFT

- lever mounting

1шт.

18

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted, Shaft

1шт.

19

H191916

ROD

HANDLE - lever

2шт.

20

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

21

A14051

GRIP

KNOB - handle

2шт.
