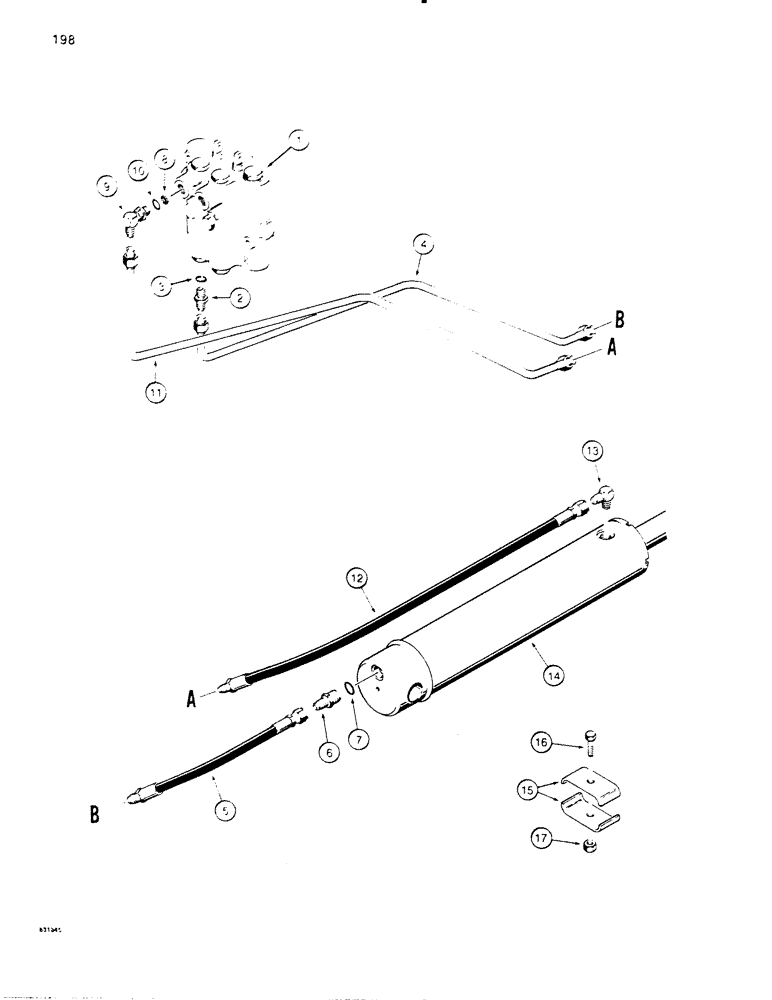

Запчасти Case SD100 (198) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H550079

LOCK VALVE

VALVE ASSEMBLY - steering and boom, parts list figure 52

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - spraight, valve to tube, Incl. Ref. 3

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

H559989

TUBE,0.375" OD x 15, 11.25" L

- control valve to closed end of boom cylinder

1шт.

5

H165340

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm, SAE 100R1

To Closed End of Boom Cylinder 6.35 mm ID x 304.80 mm, SAE 100R1

1шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, closed end of boom cylinder, Includes: Ref. 7

1шт.

8

H746875

SCREW

RESTRICTOR - special, .043" (1.09 mm) orifice

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, valve to tube, Includes: Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

11

H559997

TUBE,0.375" OD x 17, 15.062" L

- control valve to rod end of boom cylinder

1шт.

12

H195362

HYDRAULIC HOSE,6.35 mm ID x 685.80 mm, SAE 100R1

To Rod End of Boom Cylinder 6.35 mm ID x 685.80 mm, SAE 100R1

1шт.

13

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, 3/8" NPT at cylinder

1шт.

14

H530519

CYLINDER BLOCK

CYLINDER - boom lift, parts list figure 200

1шт.

15

H239061

CLAMP

- tube, if used

2шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

17

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, if used

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
