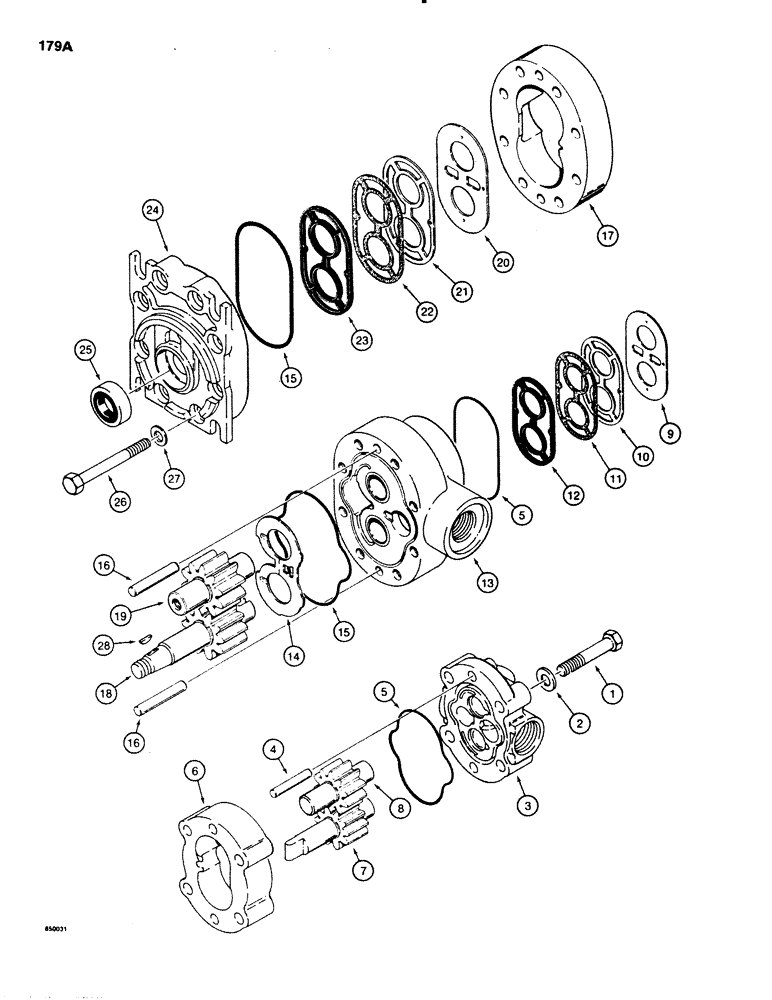

Запчасти Case SD100 (179A) - DEUTZ DIESEL ENGINE, H671446 DUAL HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

H671446

PUMP

- hydraulic, Parker No. HD39EZ2A-17A, Includes: Ref. 1-28

1шт.

1

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

3

N9275

COVER

HOUSING - second stage, port end

1шт.

4

D40205

DOWEL

PIN - dowel, second stage

2шт.

5

S5627

O-RING,2.114" ID x 2.254" OD x 0.07"

- housing, second stage

2шт.

6

N9123

VALVE BLOCK

HOUSING - center, second stage

1шт.

7

N9124

GEAR

- drive, second stage

1шт.

8

N9125

GEAR

- driven, second stage

1шт.

9

N9280

LARGE PLATE

PLATE - wear

1шт.

10

N9281

LARGE PLATE

SHIELD - heat

1шт.

11

N9282

GASKET

- shield

1шт.

12

N9283

SEAL

- "V" type

1шт.

13

N9122

VALVE BLOCK

HOUSING - mid section

1шт.

14

R31029

LARGE PLATE

PLATE - thrust, first stage

1шт.

15

F30415

O-RING,3" ID

- housing, first stage

2шт.

16

G15011

DOWEL

PIN - dowel, first stage

2шт.

17

N7952

HOUSING

- center, first stage

1шт.

18

N9121

GEAR

- drive,first stage

1шт.

19

H643932

GEAR, IDLER

GEAR - driven, first stage

1шт.

20

R31020

LARGE PLATE

PLATE - wear, first stage

1шт.

21

R31021

SHIELD

- heat, first stage

1шт.

22

R31022

GASKET

- shield, first stage

1шт.

23

R31023

SEAL

- "V" type, first stage

1шт.

24

N9115

COVER

HOUSING - drive end

1шт.

25

R31027

RUBBER SEAL

SEAL - shaft

1шт.

26

61-540

BOLT - hex socket head, 5/16" - 18 NC x 2-1/2"

8шт.

27

195-2026

WASHER,.328" x 5/8" x .065"

- flat, 5/16"

8шт.

28

836-3065

WOODRUFF KEY,M3 x 6.5

KEY - drive, pump to gear

1шт.

An O-Ring is no longer used between the pump and the engine, Use RTV sealer instead.

1шт.
