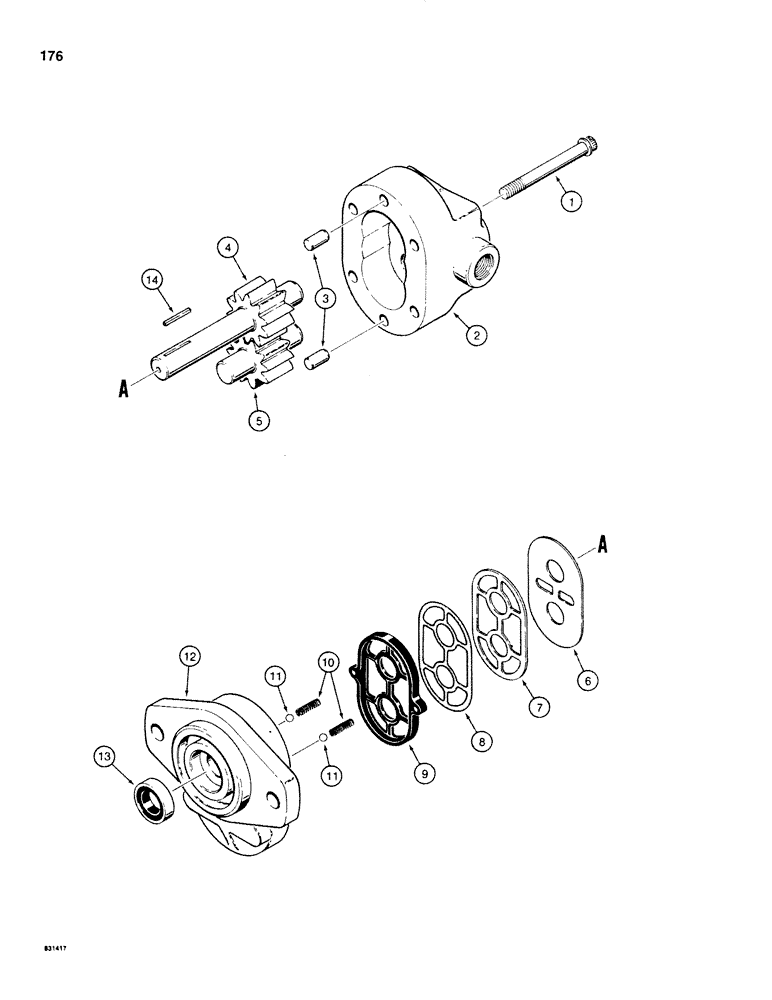

Запчасти Case SD100 (176) - H554899 AND H558734 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

H554899

PUMP

- hydraulic, Cessna No. 24109-RAA, clockwise rotation, used on 40+4 with Deutz engine

1шт.

H558734

PUMP

- hydraulic, Cessna No. 24109-LAA, counterclockwise rotation, used with Wisconsin engine, Includes: Ref. 1-14

1шт.

1

166-11

12 PT SCREW,Flg, 1/4" - 20 x 2 1/4", Gr 8

BOLT - Ferry head, 1/4" - 20 NC x 2-1/4"

4шт.

2

H205005

HOUSING

- port end

1шт.

3

A47309

PIN

DOWEL PIN - housing

2шт.

4

H204990

GEAR

- drive

1шт.

5

H204982

GEAR - idler

1шт.

6

H286286

DIAPHRAGM

- pump

1шт.

Part of seal kit P/N H591503

1шт.

7

H138404

GASKET

- backup

1шт.

Part of seal kit P/N H591503

1шт.

8

H138396

GASKET

- protector

1шт.

Part of seal kit P/N H591503

1шт.

9

H138388

SEAL

- diaphragn

1шт.

Part of seal kit P/N H591503

1шт.

10

H138420

SPRING

SRING - ball

2шт.

Part of seal kit P/N H591503

1шт.

11

211-305

BALL,3/16" Dia

- steel

2шт.

Part of seal kit P/N H591503

1шт.

12

H135483

PLATE ASSY.

HOUSING - drive end

1шт.

13

H138370

SEAL

- shaft

1шт.

Part of seal kit P/N H591503

1шт.

14

F9856

KEY

- shaft

1шт.

H591503

SEAL ASSY.

KIT - seal, Includes: Refs. 6 - 11 and 13

1шт.
