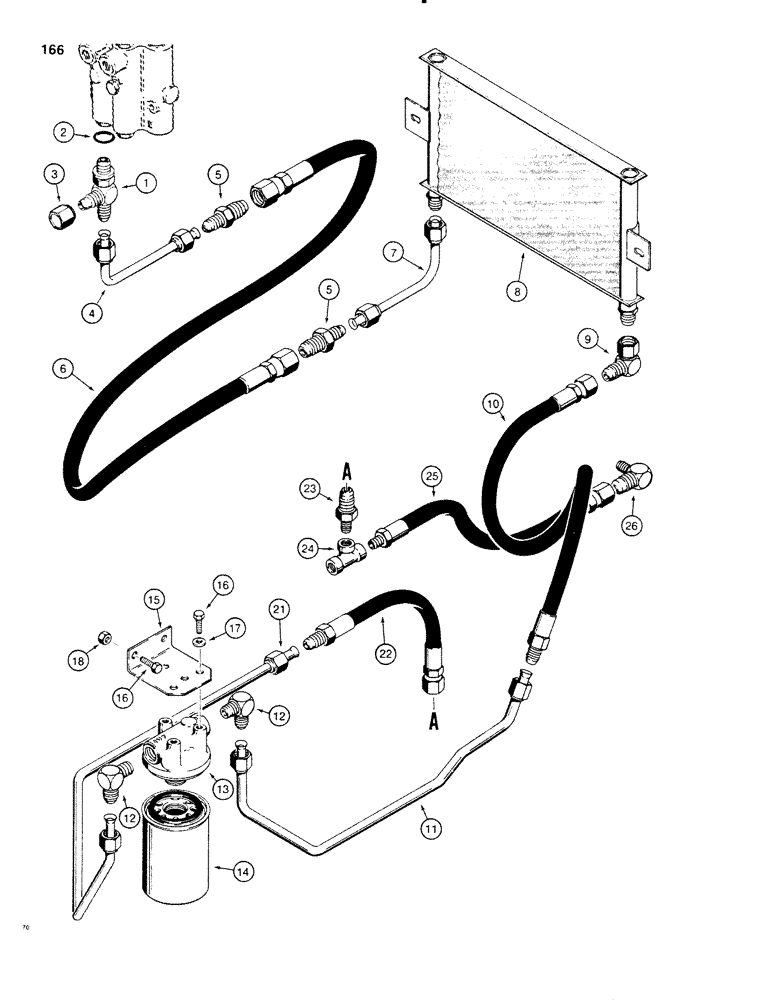

Запчасти Case SD100 (166) - HYDRAULIC OIL FILTER AND COOLER CIRCUIT, USED BEFORE SERIAL NUMBER 3751 (35) - HYDRAULIC SYSTEMS

1

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, From steering valve, Includes: Ref. 1 3/4"-16, 37º x 3/4"-18, O-Ring Run

1шт.

3

218-755

CAP,37 Degree, 3/4"-16

Tee 37º, 3/4"-16

1шт.

4

H558916

TUBE - to hose, return 0.5" OD x 5, 2" L

1шт.

5

218-853

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, male

2шт.

6

H219519

HYDRAULIC HOSE,19.05 mm ID x 584.20 mm, SAE 100R1

Return, Tube to Tube 19.05 mm ID x 584.20 mm, SAE 100R1

1шт.

7

H558916

TUBE - 90 degree, to cooler inlet 0.5" OD x 5, 2" L

1шт.

8

H559609

COOLER, OIL

OIL COOLER - hydraulic

1шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

10

H190041

HYDRAULIC HOSE,9.52 mm ID x 457.20 mm, SAE 100R1

Cooler to Tube 9.52 mm ID x 457.20 mm, SAE 100R1

1шт.

11

H563460

TUBE - hose to filter 0.5" OD

1шт.

12

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2" NPT, at filter

2шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, Includes: Ref. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

BASE - filter

1шт.

14

H311654

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

15

H191528

BRACKET

- filter mounting

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8"

3шт.

18

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

21

H571590

TUBE - filter to hose, return

1шт.

22

H195263

HOSE

E - tube to return tee, 9" (229 mm) long

1шт.

23

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male, hose to tee

1шт.

24

221-424

TEE,1/2" NPT

- pipe, 1/2" NPT

1шт.

See figures 84 and 86 for remainder of return to reservoir circuit.

1шт.

25

H195404

HOSE

- 11" (279 mm) long, Serial Range: return-reservoir

1шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2" NPT at tank

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.
