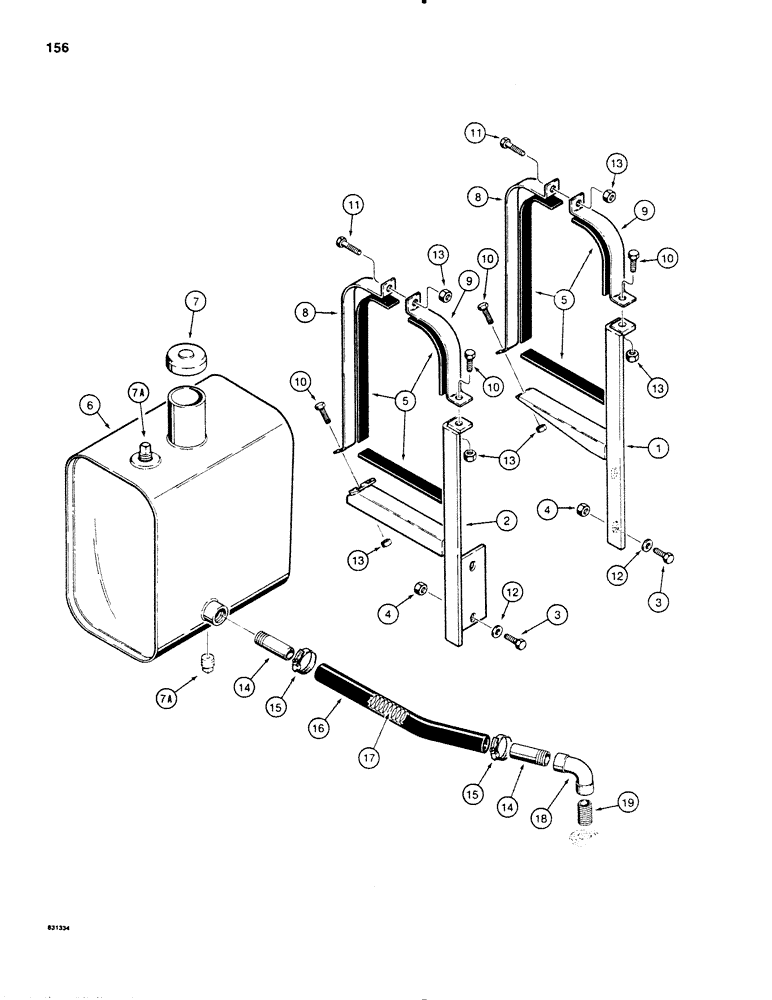

Запчасти Case SD100 (156) - H608174 AUXILIARY HYDRAULIC RESERVOIR (35) - HYDRAULIC SYSTEMS

H608174

KIT - auxiliary hydraulic reservoir, Includes: Ref. 1-19

1шт.

1

H608190

BRACKET - reservoir support, front

1шт.

2

H608208

BRACKET

- reservoir support, rear

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

5

H10363

STRIP

CUSHION - rubber, reservoir mouniting

1шт.

6

H608182

RESERVOIR

- hydroaulic, auxiliary, Includes: Ref. 7, 7A

1шт.

7

H151274

CYLINDER END CAP

CAP - reservoir

1шт.

7a

221-843

PLUG,Hex Soc, 3/8"-18

PIPE PLUG - hex socket head, 3/8" NPT

2шт.

8

H297895

STRAP

- reservoir mounting, side

2шт.

9

H297903

STRAP

- reservoir mounting, top

2шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

11

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

12

195-103

WASHER,5/16"

- flat, 5/16"

2-4шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

6шт.

14

H30650

NIPPLE, LUBE

NIPPLE - special, 1" NPT

2шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, worm drive, SAE No. 20

2шт.

16

H123729

HYDRAULIC HOSE,14.50"

- Reservoir to reservoir 14.50"

1шт.

17

H216994

VALVE SPRING

SPRING - hose

1шт.

18

221-378

ELBOW,90 Degree, 3/4" NPT

- 90 degree, female, 3/4" NPT

1шт.

19

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT x 1-38" long

1шт.
