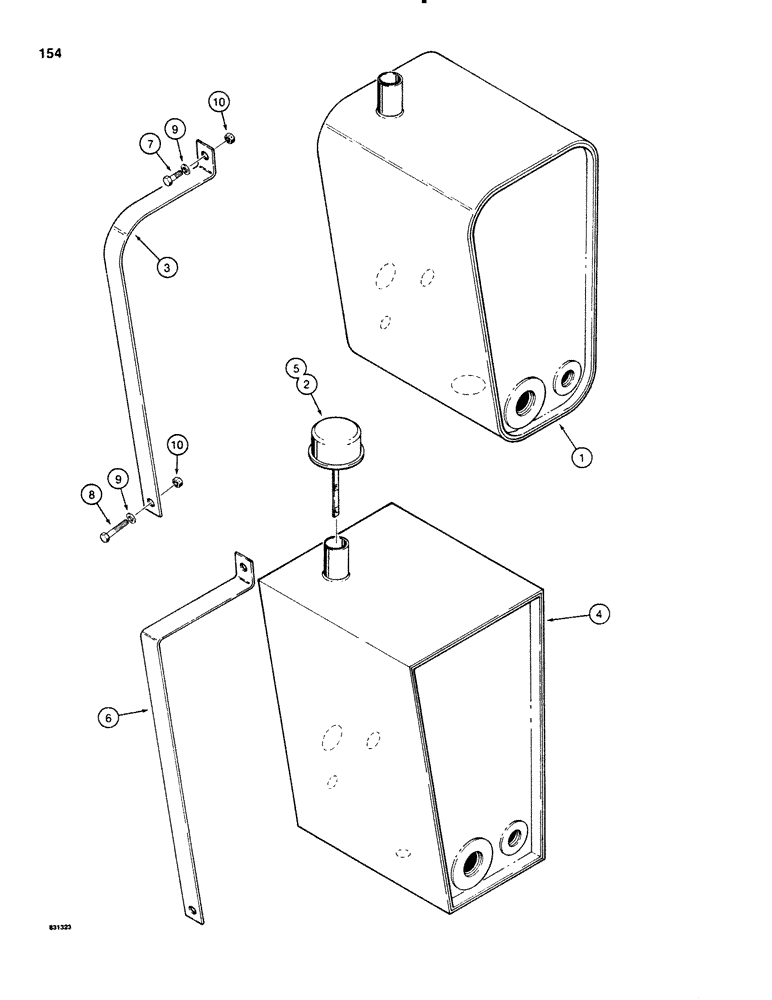

Запчасти Case SD100 (154) - HYDRAULIC RESERVOIR AND MOUNTING (35) - HYDRAULIC SYSTEMS

1

H556423

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil, if used, Includes: Ref. 2

1шт.

2

H196394

BREATHER

DIPSTICK - reservoir

1шт.

3

H190694

BAND

STRAP - reservoir mounting, use wiht H556423 only

1шт.

4

H598524

RESERVOIR

- hydraulic oil, if used, Includes: Ref. 5

1шт.

5

H196394

BREATHER

DIPSTICK - reservoir

1шт.

6

H277707

STRAP - reservoir mounting, use with H598524 only

1шт.

7

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

Upper, if used Hex, 7/16"-14 x 3/4", G5, Full Thd

2шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Upper, if used Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Lower, if used Hex, 7/16"-14 x 1 1/2", G5

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Lower, if used Hex, 3/8"-16 x 1 1/2", G5

2шт.

9

195-529

WASHER,7/16", SAE

- flat, 7/16", if used

4шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", if used

4шт.

10

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC, if used

4шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, If used

4шт.
