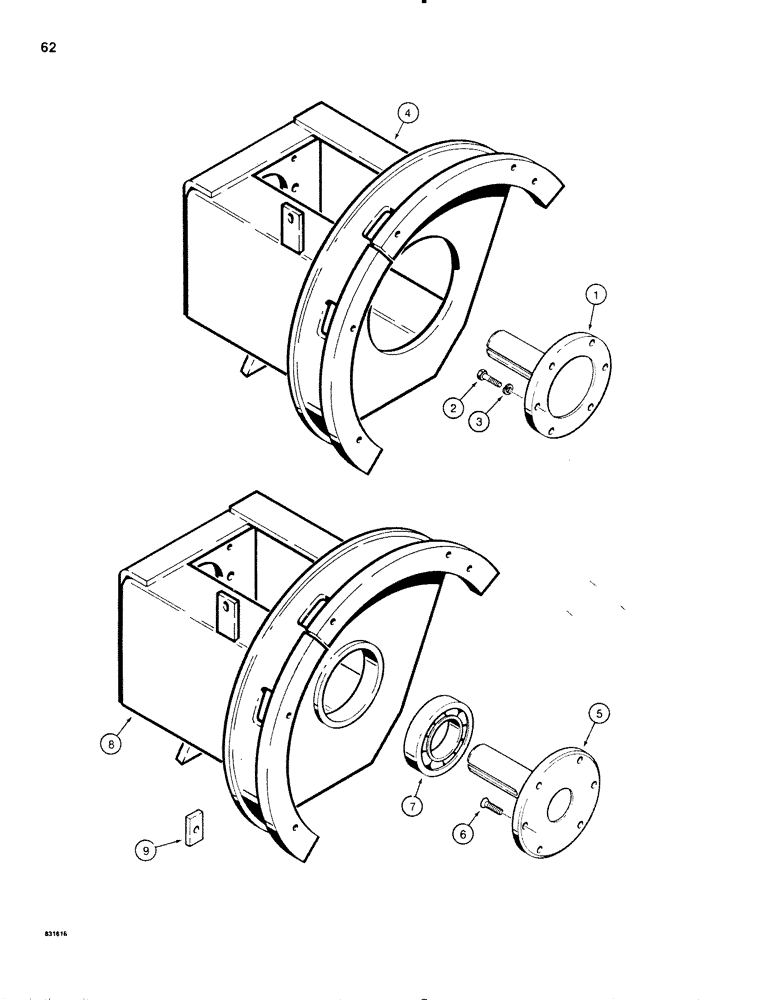

Запчасти Case SD100 (062) - PROPULSION PUMP MOUNTING ADAPTER SHAFT, 40+4 DEUTZ ENGINE MODEL (29) - HYDROSTATIC DRIVE

1

H570408

SHAFT

ADAPTER SHAFT - pump drive, Deutz, used without bearing

1шт.

2

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 30 mm (8.8), used without shaft bearing

6шт.

3

892-1108

LOCK WASHER,M8

used without shaft bearing M8

6шт.

4

REF

INSTRUCTION

BRACKET - pump mounting, see figure 60, ref. 10, for correct bracket, used without shaft bearing

1шт.

5

H608711

SHAFT

ADAPTER SHAFT - pump drive, Deutz, used with bearing, used with shaft bearing

1шт.

6

H319186

BOLT (SPREADER),Flat Hd, M8 x 20mm

SCREW - hex socket flat head, 8 mm - 125 x 20 mm, used with shaft bearing

6шт.

7

H757328

BEARING

- adapter shaft, used with bearing

1шт.

8

H594861

BRACKET

- pump mounting, see figure 60 for mounting, used with shaft bearing

1шт.

9

H219675

PLATE

SPACER - bracket, if used, with shaft bearing

1шт.
