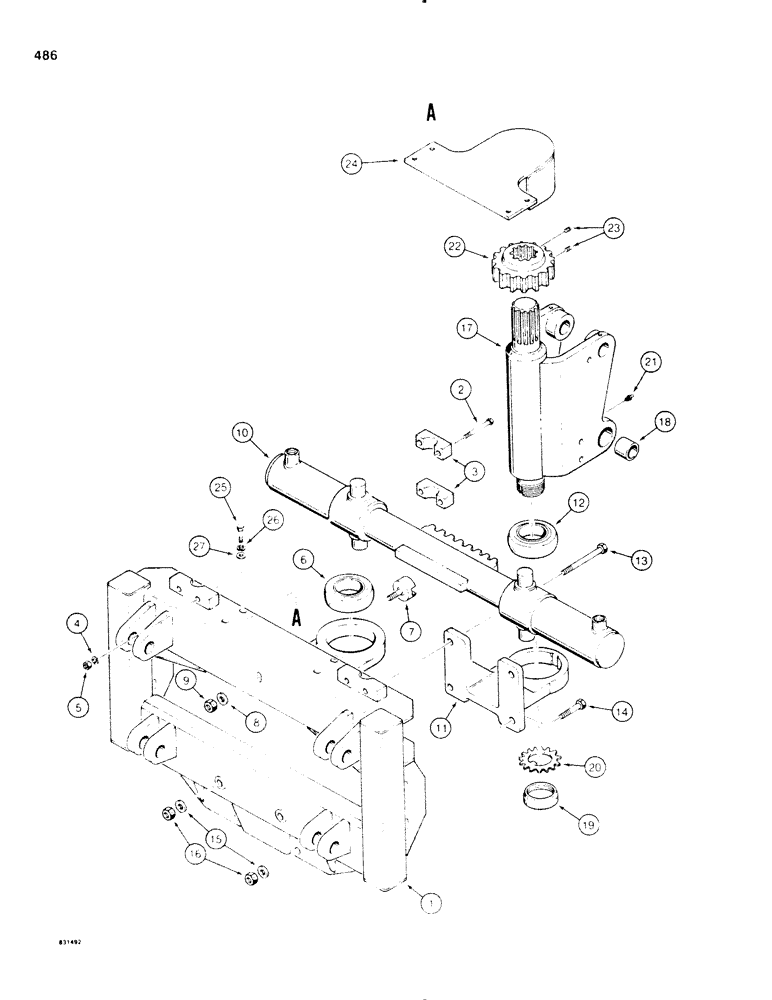

Запчасти Case SD100 (486) - BACKHOE FRAME AND SWING TOWER (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
H555946
FRAME
ASSEMBLY - SD-100 backhoe, Includes: Ref. 2-6
1шт.
2
113-248
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
8шт.
3
NSS
NOT SOLD SEPARAT
BLOCK - swing cylinder
4шт.
4
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
5
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8" - 16 NC
8шт.
6
H747170
BALL BEARING
BEARING - swing tower, upper
1шт.
7
H50377
GUIDE
- rack, swing cylinder
1шт.
8
195-541
WASHER,5/8", SAE
- flat, 5/8"
1шт.
9
131-1171
LOCK NUT,5/8"-18, GB
NUT, LOCK, 5/8"-18, GB
1шт.
10
H514125
CYLINDER ASSY.
CYLINDER - swing, parts list figure 468
1шт.
11
H50724
HOLDER
HOUSING - lower, swing tower pivot
1шт.
12
H747170
BALL BEARING
BEARING - swing tower, lower
1шт.
13
113-649
BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5
- hex head, 5/8" - 11 NC x 4-1/4", if used
2шт.
13
113-629
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
- hex head, 5/8" - 11 NC x 3-3/4", if used
2шт.
14
113-604
BOLT,Hex, 5/8" - 11 x 2", Gr 5
2шт.
15
195-541
WASHER,5/8", SAE
- flat, 5/8", if used
4шт.
16
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC
4шт.
17
H514596
POST
SWING TOWER - backhoe, Includes: Ref. 18
1шт.
18
H56192
BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L
- swing tower
1шт.
19
131-1037
BEARING LOCK NUT,Bearing, 2.1654" Bore
NUT - hex, self-locking, special for ball bearings
1шт.
20
192-311
BEARING WASHER,Bearing, W-11
WASHER - special, bearing lock
1шт.
21
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg
1шт.
22
H50369
GEAR WHEEL
GEAR - swing
1шт.
23
178-53
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
- 3/8" - 16 NC x 3/8"
4шт.
24
H514380
COVER ASSY
COVER - gear
1шт.
25
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
4шт.
26
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
27
195-525
WASHER,3/8", SAE
- flat, 3/8"
4шт.
The mounting plate that no. 6 brg fits into part no. H50062.
1шт.
Выбрано товаров: 29
