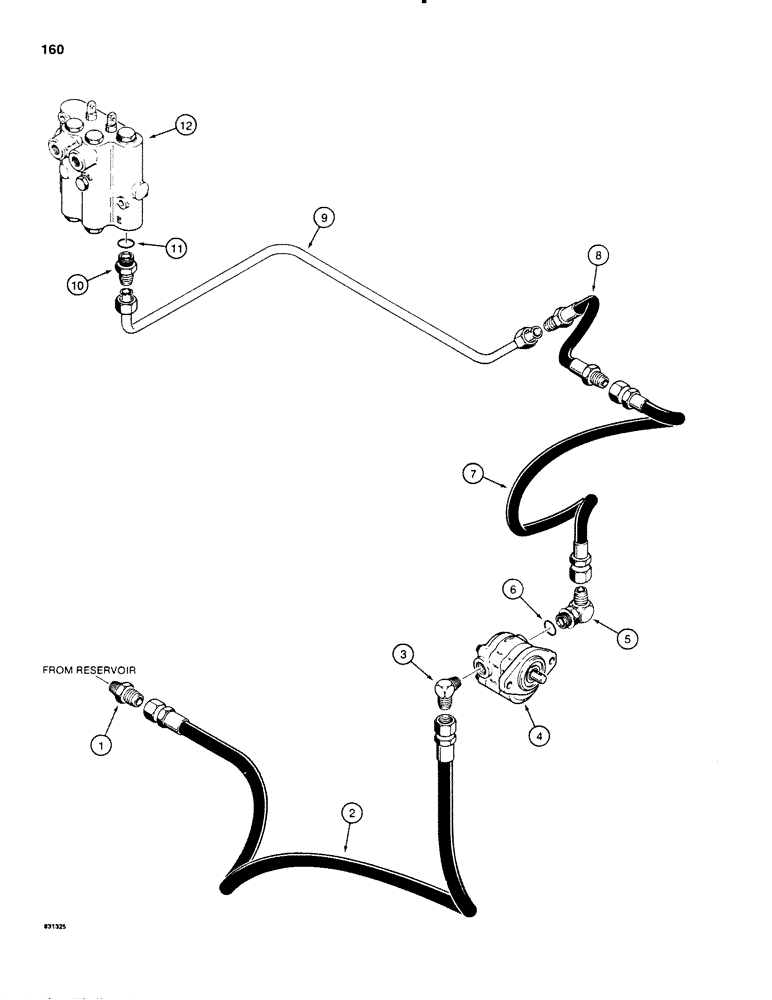

Запчасти Case SD100 (160) - STEERING AND EQUIPMENT PUMP HYDRAULIC CIRCUIT, 40+4 DEUTZ BEFORE SERIAL NUMBER 3400 (41) - STEERING

1

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight

1шт.

2

H169052

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Suction 12.70 mm ID x 508.00 mm, SAE 100R1

1шт.

3

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

4

H554899

PUMP

- hydraulic, Cessns No. 24109-RAA, clockwise rotation, parts list figure 176, mounts on inside of bracket

1шт.

5

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, Includes: Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

D59771

HOSE

- pressure, 27" (686 mm) long

1шт.

8

H195370

HOSE

- pressure, 9" (229 mm) long

1шт.

9

H569871

TUBE,0.5" OD

- resuere, hose to valve

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 11 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

12

H550079

LOCK VALVE

CONTROL VALVE - CESSNA No. 31522-AL. parts list figures 52 and 54

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
