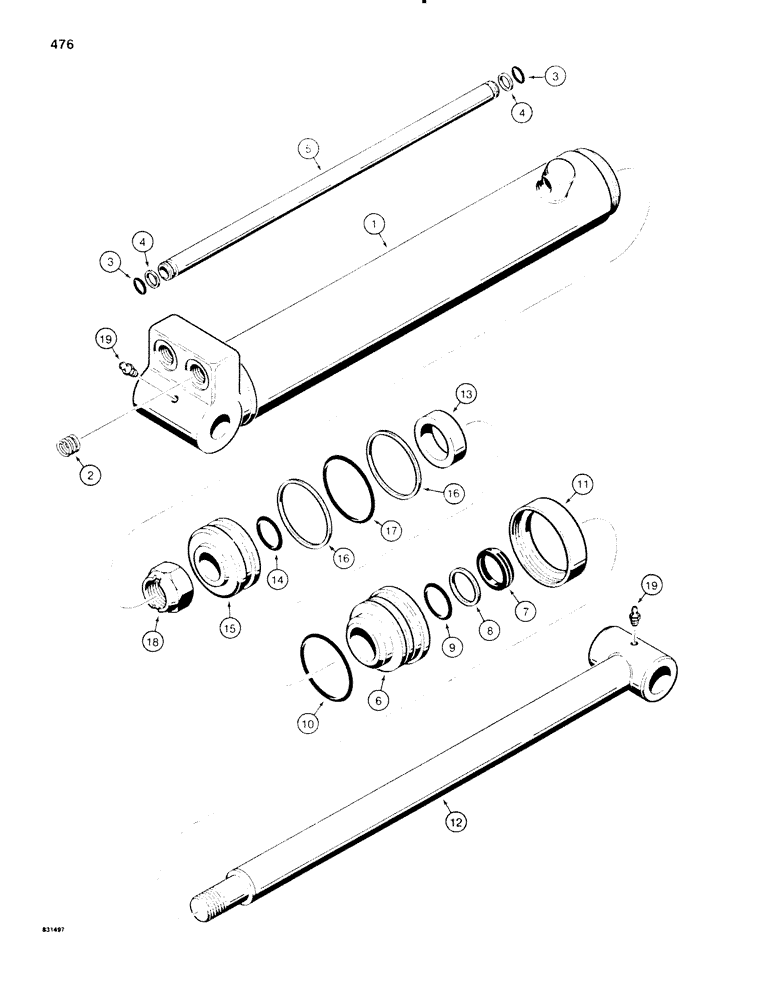

Запчасти Case SD100 (476) - H607697 BOOM, DIPPER, AND BUCKET CYLINDER, USED ON FIVE SPOOL BACKHOE SER. NO. 1515646 THRU 1109114 (35) - HYDRAULIC SYSTEMS

H607697

CYLINDER

- backhoe, 3" (76 mm) ID x 15" (381 mm) stroke, Lantex No. 2903-BL, Includes: Ref. 1-19

3шт.

1

H608265

TUBE

- cylinder

1шт.

H602607

KIT

- manifold, Includes: Ref. 2-5

1шт.

2

H286013

VALVE SPRING

SPRING - manifold

1шт.

3

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- seal

2шт.

4

H754622

RING

BACKUP RING - O-ring

2шт.

5

NSS

NOT SOLD SEPARAT

TUBE - hydraulic

1шт.

6

H223081

GLAND

- cylinder

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

7

H222935

WIPER SEAL

WIPER - rod

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

8

H745687

WASHER

BACKUP RING - piston rod O-ring

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

9

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - piston rod, small, gland inner

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

10

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- gland, outer

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

11

H223032

COLLAR CLAMP

CAP - gland retaining

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

12

H608257

ROD

- piston, 1-1/2" (38 mm) diameter

1шт.

13

H298018

SPACER

- piston

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

14

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- piston, inner

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

15

H754614

WASHER

PISTON - cylinder

1шт.

16

H754614

WASHER

BACKUP RING - piston seal

2шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

17

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- piston seal, outer

1шт.

Use H621573 kit to rework this cylinder into a H621029 cylinder, parts list figure 478.

1шт.

18

131-1141

LOCK NUT,1 1/8" - 12, Gr A

NUT - hex, self locking, 1-1/8" - 12 NF

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.
