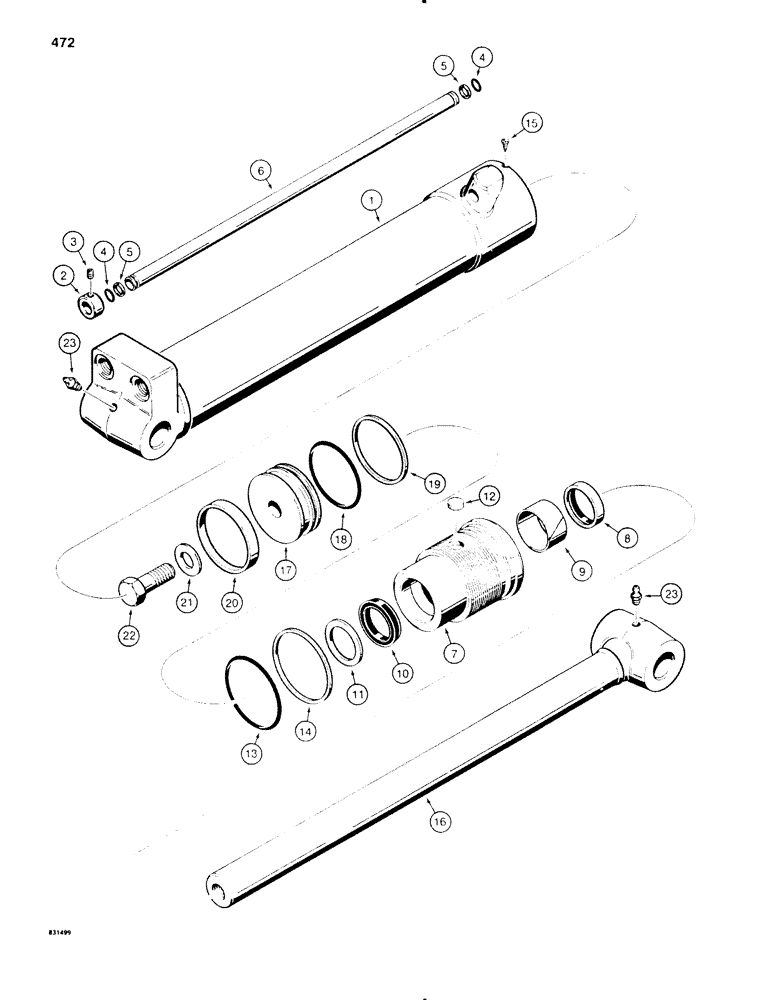

Запчасти Case SD100 (472) - G34186 BOOM, DIPPER, AND BUCKET CYLINDER, USED ON FIVE SPOOL BACKHOE SERIAL NO. 1515103 THRU 1515346 (35) - HYDRAULIC SYSTEMS

G34186

CYLINDER ASSY.

CYLINDER - backhoe, 3" (76 mm) ID x 15" (381 mm) stroke, Includes: Ref. 1-23

3шт.

1

G34187

TUBE,2.996" ID x 21.01" L

- cylinder

1шт.

2

G34478

COLLAR

CLAMP - tube, Includes: Ref. 3

1шт.

3

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex socket, 1/4" - 20 NC x 1/4" 1

1шт.

4

A8613

O-RING,0.426" ID x 0.566" OD

- tube seal

2шт.

5

D54861

BACK-UP RING

BACKUP RING - O-ring

2шт.

6

G34193

TUBE,0.472" ID x 0.5625" OD x 17.88" L

- hydraulic

1шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 7-14

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of seal kit G105502

1шт.

9

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Gland, piston rod

1шт.

Part of seal kit G105502

1шт.

10

D36969

CUP

SEAL - piston rod, wide

1шт.

Part of seal kit G105502

1шт.

G100776 SEAL, see below

1шт.

11

G104224

SEAL

- piston rod, narrow, used in additon to ref. 10 in some glands, if used

1шт.

Part of seal kit G105502

1шт.

12

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

13

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit G105502

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit G105502

1шт.

15

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self - tapping, hex slotted head, No. 8-32 NC x 3/8", if used

1шт.

16

G34191

ROD

- piston, 1-1/2" (38 mm) diameter

1шт.

17

G104108

PISTON

- cylinder

1шт.

18

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston seal

1шт.

Part of seal kit G105502

1шт.

19

A32034

NUT

BACKUP RING - O-ring

1шт.

Part of seal kit G105502

1шт.

20

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of seal kit G105502

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, piston

1шт.

22

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105502

SEAL

KIT - seal, includes items 8-11, 13, 14, and 18-20

1шт.

G100776

SEAL

- piston rod, service option, severe heat or cold

1шт.
