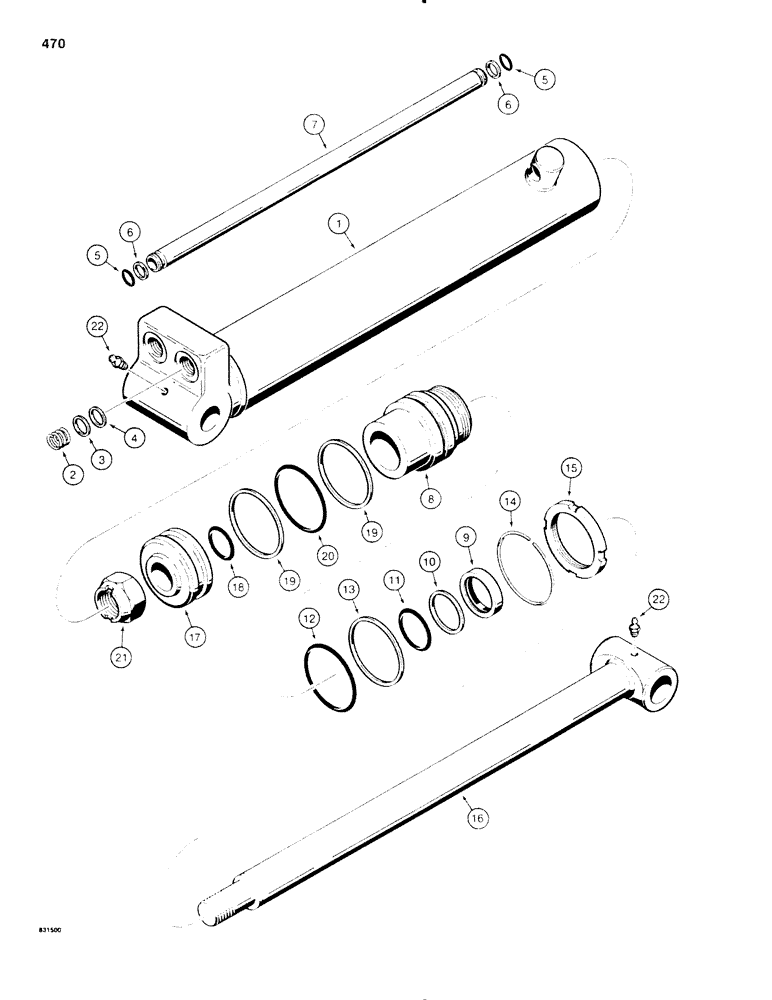

Запчасти Case SD100 (470) - H514109 BOOM, DIPPER, AND BUCKET CYLINDER, USED BEFORE BACKHOE SERIAL NUMBER 1515103 (35) - HYDRAULIC SYSTEMS

H514109

CYLINDER ASSY.

CYLINDER - backhoe, 3" (76 mm) ID x 15" (381 mm) stroke, Cessna No.41093-BA, Includes: Ref. 1-22

3шт.

1

H52738

DRUM

TUBE - cylinder

1шт.

2

H52712

VALVE SPRING

SPRING - seal

1шт.

3

H215269

WASHER

- .030" (0.76 mm) thick

1шт.

4

H215277

WASHER

- .058" (1.47 mm) thick

1шт.

5

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- tube seal

2шт.

Part of seal kit P/N H52795

1шт.

6

H754622

RING

BACKUP RING - O-ring

2шт.

7

H52720

TUBE

- hydraulic

1шт.

8

H52753

BEARING

GLAND - cylinder

1шт.

9

H52779

GLAND

WIPER - rod, service with A41785

1шт.

9

A41785

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit P/N H52795

1шт.

10

T31052

RING

BACKUP RING - rod seal O-ring

1шт.

Part of seal kit P/N H52795

1шт.

11

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

SEAL - piston rod, small gland inner

1шт.

Part of seal kit P/N H52795

1шт.

12

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- gland, outer

1шт.

Part of seal kit P/N H52795

1шт.

13

H745760

WASHER

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N H52795

1шт.

14

H52761

RING

RETAINING RING - gland

1шт.

Part of seal kit P/N H52795

1шт.

15

H745794

BEARING LOCK NUT

NUT - lock, gland

1шт.

16

H52787

ROD

- piston

1шт.

17

NLS

NO LONGER SERVICED

- cylinder

1шт.

18

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

- piston, inner

1шт.

Part of seal kit P/N H52795

1шт.

19

H745588

WASHER

BACKUP RING - piston, leather, service, with H754614

2шт.

19

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

BACKUP RING - piston, rubber

2шт.

Part of seal kit P/N H52795

1шт.

20

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- piston seal

1шт.

Part of seal kit P/N H52795

1шт.

21

131-1141

LOCK NUT,1 1/8" - 12, Gr A

NUT - hex, self-locking, 1-1/8" - 12 NF

1шт.

22

219-13

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16" driven

2шт.

H52795

SEAL

KIT - seal, Includes: Refs. 5, 9 - 14, 18, 19 (D38755) and 20

1шт.
