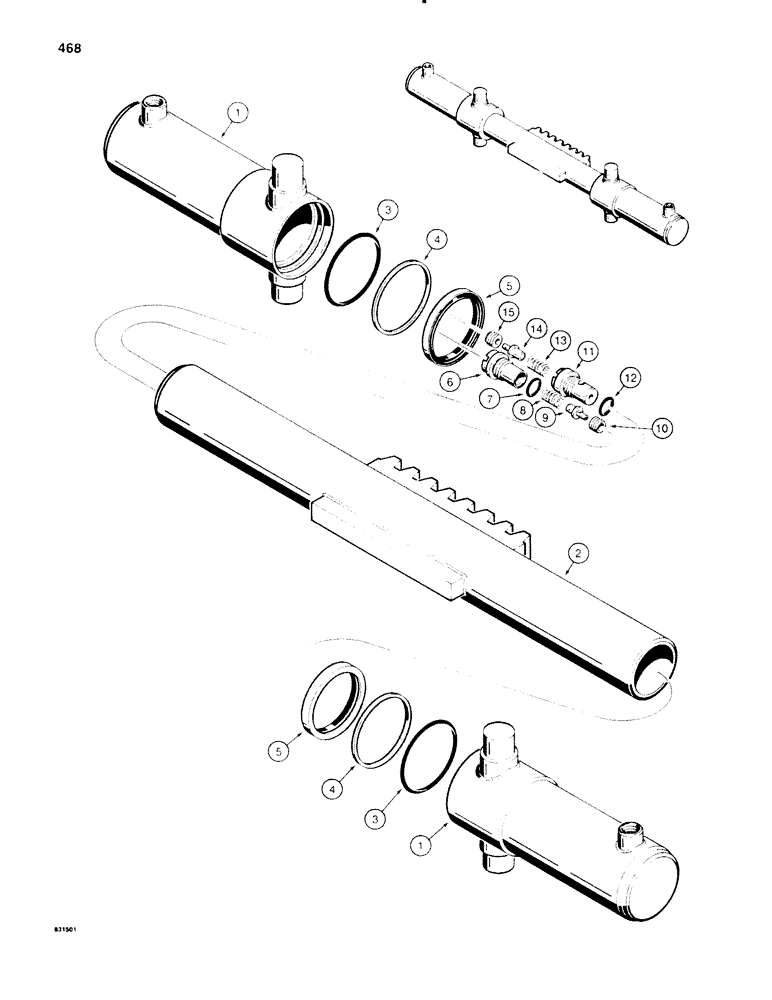

Запчасти Case SD100 (468) - H514125 SWING CYLINDER (35) - HYDRAULIC SYSTEMS

H514125

CYLINDER ASSY.

CYLINDER - swing, 2-3/4" (69.85 mm) ID x (203 mm) stroke, Includes: Ref. 1-15

1шт.

1

H392068

BARREL

TUBE - swing cylinder

2шт.

2

H53017

PISTON ROD

ROD - piston

1шт.

3

H743591

O-RING

- tube seal

2шт.

Part of seal kit P/N H53041

1шт.

4

H754606

WASHER

BACKUP RING - O-ring (replaces S114167)

2шт.

Part of seal kit P/N H53041

1шт.

5

H215202

SEAL ASSY.

SEAL - dust

2шт.

Part of seal kit P/N H53041

1шт.

5a

H53033

LOCK VALVE

RELIEF VALVE ASSEMBLY - tube (Replaces H53025), Includes: Ref. 6-10

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

7

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

1шт.

Part of seal kit P/N H53041

1шт.

8

F138362

SPRING - relief valve

1шт.

9

H138362

SPOOL

POPPET - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

10a

H53025

LOCK VALVE

RELIEF VALVE ASSEMBLY - tube (replaces H53033), Includes: Ref. 11-15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

1шт.

Part of seal kit P/N H53041

1шт.

13

F37883

SPRING

- relief valve

1шт.

14

H138362

SPOOL

POPPET - relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H53041

SEAL ASSY.

KIT - seal, Includes: Refs. 3, 4, 5, 7 and 12

1шт.
