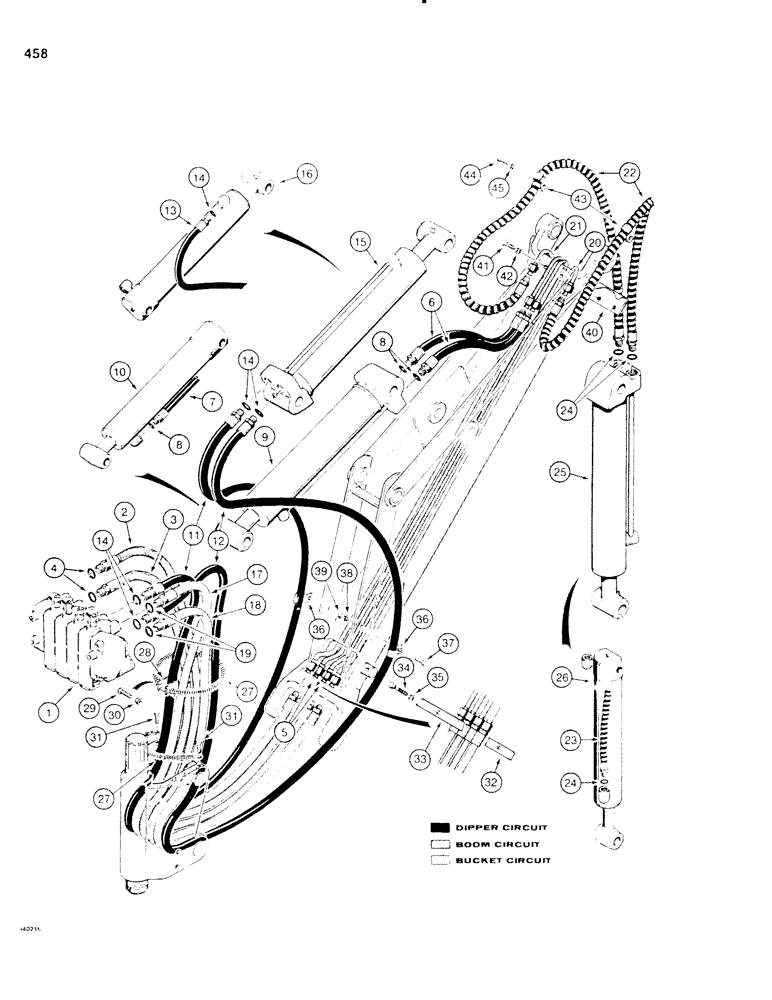

Запчасти Case SD100 (458) - BACKHOE HYDRAULIC CIRCUIT, BOOM, DIPPER, AND BUCKET, USE WITH H588566 FOUR SPOOL VALVE (35) - HYDRAULIC SYSTEMS

1

H588566

VALVE

CONTROL VALVE - backhoe, four spool, parts list figures 462 - 466

1шт.

2

H268557

HYDRAULIC HOSE,9.52 mm ID x 965.20 mm, SAE 100R1

- Boom or bucket, Top port 9.52 mm ID x 965.20 mm, SAE 100R1

1шт.

3

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- Boom or bucket, Bottom port, Includes Ref. 4 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

5

H593392

TUBE,0.5" OD

- boom, hose to hose

2шт.

6

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

Tube to Cylinder 9.52 mm ID x 381.00 mm, SAE 100R1

1-2шт.

7

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- Boom, Tube to cylinder, Used with G100936 cylinder only, if used, Includes Ref. 8, 9 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

9

REF

INSTRUCTION

CYLINDER - backhoe, for correct cylinder and parts list, see figures 472 - 480, if used

1шт.

10

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- backhoe, parts list figure 482, if used

1шт.

11

H268524

HYDRAULIC HOSE,9.52 mm ID x 1473.20 mm, SAE 100R1

- Dipper, Top port 9.52 mm ID x 1473.20 mm, SAE 100R1

1шт.

12

H268516

HYDRAULIC HOSE,9.52 mm ID x 1422.40 mm, SAE 100R1

- Dipper, Bottom port 9.52 mm ID x 1422.40 mm, SAE 100R1

1шт.

13

H357855

HOSE,0.38" ID x 75.00", SAE 100R1

Dipper, Bottom Port, Used with G100936 Cylinder Only, Includes: Ref. 14 0.38" ID x 75.00", SAE 100R1

1шт.

15

REF

INSTRUCTION

CYLINDER - backhoe, for correct cylinder and parts list, see figures 472 - 480, if used

1шт.

16

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- backhoe, parts list figure 482, if used

1шт.

17

H268557

HYDRAULIC HOSE,9.52 mm ID x 965.20 mm, SAE 100R1

- Boom or bucket, Top port 9.52 mm ID x 965.20 mm, SAE 100R1

1шт.

18

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- Boom or bucket, Bottom port, Includes Ref. 19 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

20

H593384

TUBE,12.7 mm OD

-bucket, right-hand, hose to hose

1шт.

21

H593384

TUBE,12.7 mm OD

- bucket, left-hand, hose to hose

1шт.

22

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

- Tube, Bucket, Tube to cylinder 9.52 mm ID x 1066.80 mm, SAE 100R1

1-2шт.

23

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

Bucket, Tube to cylinder, used with G100936 Cylinder Only, if used, Includes: Ref. 24 0.38" ID x 61.00", SAE 100R1

1шт.

25

REF

INSTRUCTION

CYLINDER - backhoe, for correct cylinder and parts list, see figures 472 - 480, if used

1шт.

26

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- backhoe, parts list figure 482, if used

1шт.

27

H52548

SPRING

- hose retainer

2шт.

28

H52571

CLAMP

- hose retainer

1шт.

29

182-209

SCREW,Sl Pan Hd, 1/4" - 20 x 1 1/2"

MACHINE SCREW - slotted, 1/4" - 20 NC x 1-1/2"

1шт.

30

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

31

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

32

H51748

CLAMP

- hose

1шт.

33

H52589

CLAMP

- hose

1шт.

34

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

H51763

CLAMP

- hose

2шт.

37

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

39

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

40

H51755

CLAMP

- tube

1шт.

41

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

43

H276758

CLAMP

- tube

2шт.

44

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

45

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

2шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
