Запчасти Case SD100 (456) - BACKHOE HYDRAULIC CIRCUIT, BOOM, DIPPER, AND BUCKET, USED ON BACKHOE SERIAL NUMBER 1515103 AND AFTER (35) - HYDRAULIC SYSTEMS

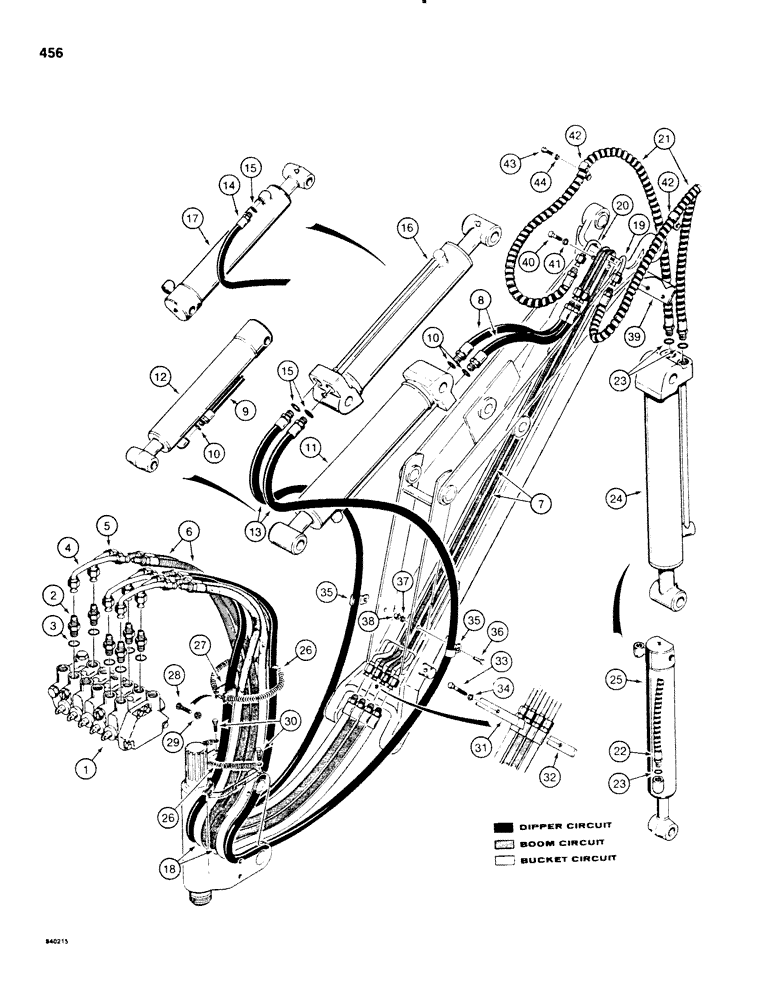

Схема запчастей Case SD100 - (456) - BACKHOE HYDRAULIC CIRCUIT, BOOM, DIPPER, AND BUCKET, USED ON BACKHOE SERIAL NUMBER 1515103 AND AFTER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

H560292

VALVE

CONTROL VALVE - backhoe, five spool, parts list figures 460, 464 and 466

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

6шт.

4

H560185

TUBE,0.5" OD x 7.094, 2" L

- front

3шт.

5

H560177

TUBE,0.5" OD

- rear

3шт.

6

H278994

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm

- Boom, Tube to tube 9.52 mm ID x 889.00 mm

2шт.

7

H593392

TUBE,0.5" OD

- boom, hose to hose

2шт.

8

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

Boom, Tube to Cylinder 9.52 mm ID x 381.00 mm, SAE 100R1

1-2шт.

9

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- Boom, Tube to cylinder, Used with G100936 cylinder only, if used, Includes Ref. 10 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

11

REF

INSTRUCTION

CYLINDER - backhoe, parts list figures 472 - 480, if used

1шт.

12

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- backhoe, parts list figure 482, if used

1шт.

13

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

Dipper Tube to Cylinder 0.38" ID x 55.00", SAE 100R1

1-2шт.

14

H360412

HOSE,0.38" ID x 75.00", SAE 100R1

Dipper, Used with G100936 Cylinder Only, if used, Includes: Ref. 15 0.38" ID x 75.00", SAE 100R1

1шт.

16

REF

INSTRUCTION

CYLINDER - backhoe, parts list figure 472 - 480, if used

1шт.

17

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- backhoe, parts list figure 482, if used

1шт.

18

H278994

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm

- Boom or bucket, Tube to tube 9.52 mm ID x 889.00 mm

2шт.

19

H593384

TUBE,12.7 mm OD

- bracket

1шт.

20

H593376

TUBE,0.5" OD

- bucket, left-hand, hose to hose

1шт.

21

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

- Bucket, Tube to cylinder 9.52 mm ID x 1066.80 mm, SAE 100R1

1шт.

22

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

Bucket, Tube to cylinder, used with G100936 Cylinder Only, if used, Includes: Ref. 23 0.38" ID x 61.00", SAE 100R1

1шт.

24

REF

INSTRUCTION

CYLINDER - backhoe, parts list figures 472 - 480, if used

1шт.

25

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- backhoe, parts list figure 482, if used

1шт.

26

H52548

SPRING

- hose retainer

2шт.

27

H52571

CLAMP

- hose retainer

1шт.

28

182-209

SCREW,Sl Pan Hd, 1/4" - 20 x 1 1/2"

MACHINE SCREW - slotted, 1/4" - 20 NC x 1-1/2"

1шт.

29

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

31

H51748

CLAMP

- hose

1шт.

32

H52589

CLAMP

- hose

1шт.

33

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

35

H51763

CLAMP

- hose

2шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

39

H51755

CLAMP

- tube

1шт.

40

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

42

H276758

CLAMP

- tube

2шт.

43

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

44

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
