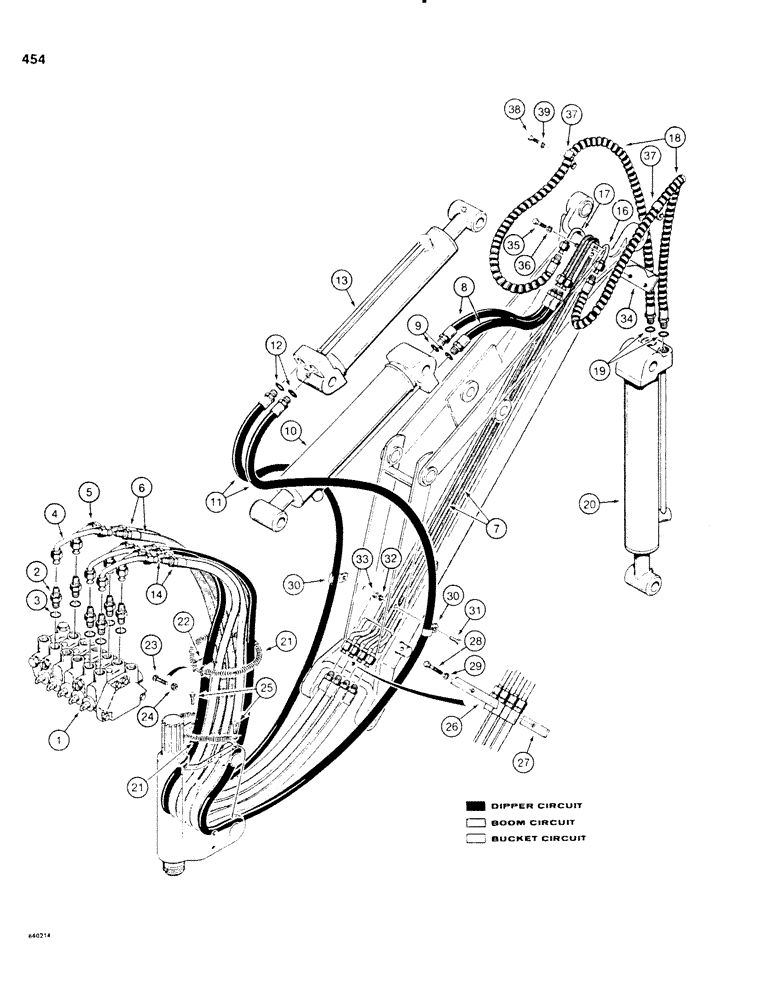

Запчасти Case SD100 (454) - BACKHOE HYDRAULIC CIRCUIT, BOOM, DIPPER, AND BUCKET, USED BEFORE BACKHOE SERIAL NUMBER 1515103 (35) - HYDRAULIC SYSTEMS

1

H560292

VALVE

CONTROL VALVE - backhoe, five spool, parts list figures 460, 464 and 466

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

6шт.

4

H560185

TUBE,0.5" OD x 7.094, 2" L

- front

3шт.

5

H560177

TUBE,0.5" OD

- rear

3шт.

6

H201194

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

Tube to Tube 9.52 mm ID x 889.00 mm, SAE 100R1

2шт.

7

H513697

TUBE,0.5" OD x 44.625, 1.5" L

- boom, hose to hose

2шт.

8

H52399

HOSE

- boom, 15" (381 mm) long, tube to cylinder, Includes: Ref. 9

2шт.

10

H514109

CYLINDER ASSY.

CYLINDER - backhoe, parts list figure 470

1шт.

11

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

Dipper, Tube to Cylinder, Includes: Ref. 12 0.38" ID x 55.00", SAE 100R1

2шт.

13

H514109

CYLINDER ASSY.

CYLINDER - backhoe, parts list figure 470

1шт.

14

H201194

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

Bucket, Tube to Tube 9.52 mm ID x 889.00 mm, SAE 100R1

2шт.

16

H593384

TUBE,12.7 mm OD

- bucket, right-hand, horse shoe end (or a 175 degree bend) (replaces H513689)

1шт.

17

H513671

TUBE,0.5" OD x 45.875, 1.375" L

- bucket, left-hand, hose to hose

1шт.

18

H51482

HOSE

- bucket, 24" (610 mm) long, tube to cylinder, Includes: Ref. 19

2шт.

20

H514109

CYLINDER ASSY.

CYLINDER - backhoe, parts list figure 470

1шт.

21

H52548

SPRING

- hose retainer

2шт.

22

H52571

CLAMP

- hose retainer

1шт.

23

182-209

SCREW,Sl Pan Hd, 1/4" - 20 x 1 1/2"

MACHINE SCREW - slotted, 1/4" - 20 NC x 1-1/2"

1шт.

24

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

H51748

CLAMP

- hose

1шт.

27

H52589

CLAMP

- hose

1шт.

28

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

30

H51763

CLAMP

- hose

2шт.

31

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

33

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

34

H51755

CLAMP

- tube

1шт.

35

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

36

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

37

H276758

CLAMP

- tube

2шт.

38

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
