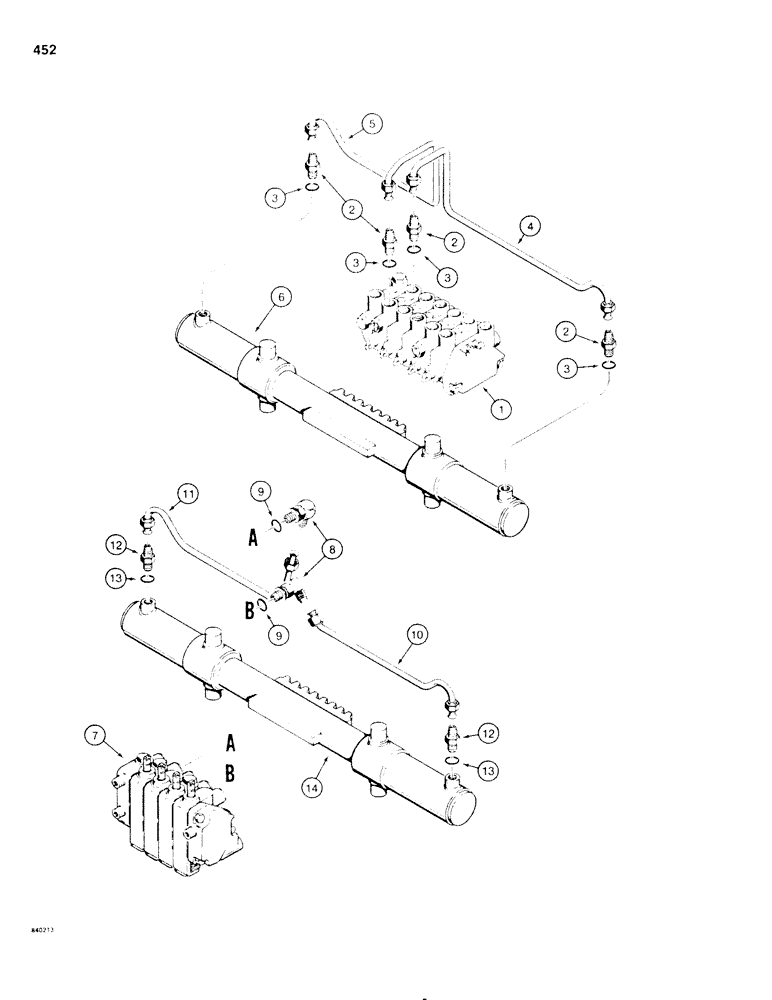

Запчасти Case SD100 (452) - BACKHOE SWING HYDRAULIC CIRCUIT USED WITH H560292 (35) - HYDRAULIC SYSTEMS

1

H560292

VALVE

CONTROL VALVE - backhoe, five spool, parts list figures 460, 464 and 466

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

4шт.

4

H560219

TUBE,0.5" OD

- swing cylinder, right hand

1шт.

5

H560227

TUBE,0.5" OD

- swing cylinder, left hand

1шт.

6

H514125

CYLINDER ASSY.

CYLINDER - swing, parts list figure 468

1шт.

7

H588566

VALVE

CONTROL VALVE - backhoe, four spool, parts list figures 462 - 466, used with H588566

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, used with H588566 four spool valve, Includes: Ref. 9

2шт.

10

H589887

TUBE,0.5" OD

- swing cylinder, right-hand, used with H588566 four spool valve

1шт.

11

H589887

TUBE,0.5" OD

- swing cylinder, left-hand, used with H588566 four spool valve

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, used with H588566 four spool valve, Incl. Ref 13 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

14

H514125

CYLINDER ASSY.

CYLINDER - swing, parts list figure 468, used with H588566 four spool valve

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow, used with H588566 four spool valve

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter, used with H588566 four spool valve

1шт.
