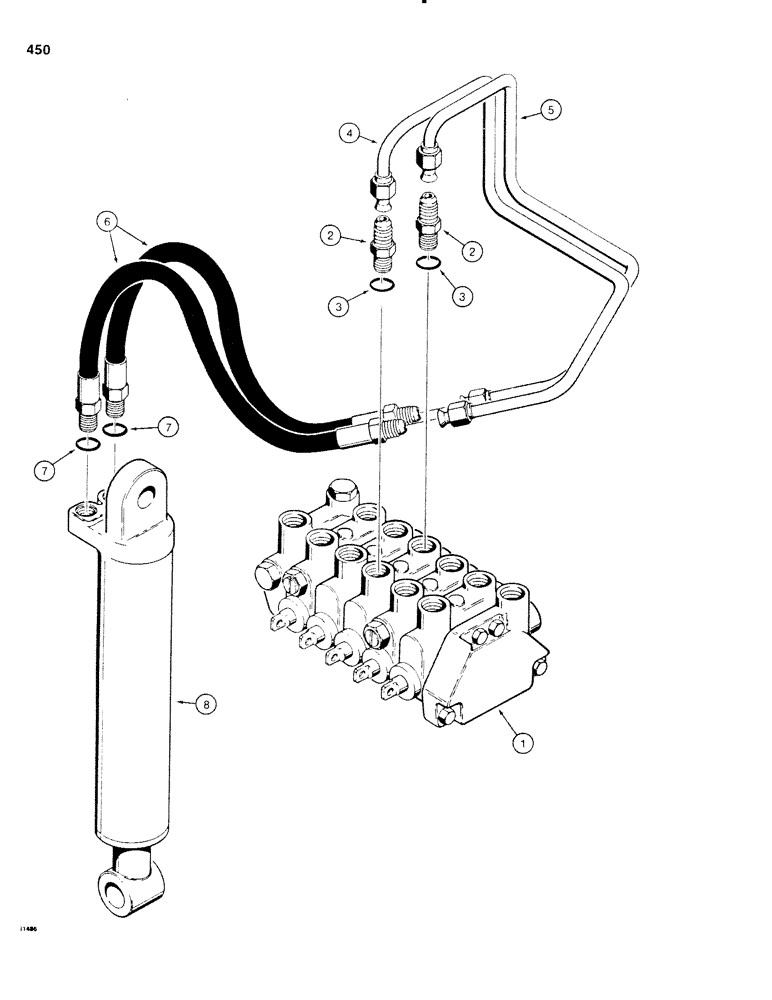

Запчасти Case SD100 (450) - STANDARD BACKFILL BLADE LIFT HYDRAULIC CIRCUIT, USED WITH H560292 BACKHOE VALVE ONLY (35) - HYDRAULIC SYSTEMS

1

H560292

VALVE

CONTROL VALVE - backhoe, five spool, parts list figure 460, 464 and 466

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

4

H560193

TUBE,0.5" OD

- blade lift, front, to closed end of cylinder

1шт.

5

H560201

TUBE,0.5" OD

- blade lift, rear, to rod end of cylinder

1шт.

6

H200402

HOSE

- blade lift, 10-1/2" (267 mm) long, Includes: Ref. 7

2шт.

8

H559435

CYLINDER BLOCK

CYLINDER - blade lift, parts list figure 278

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
