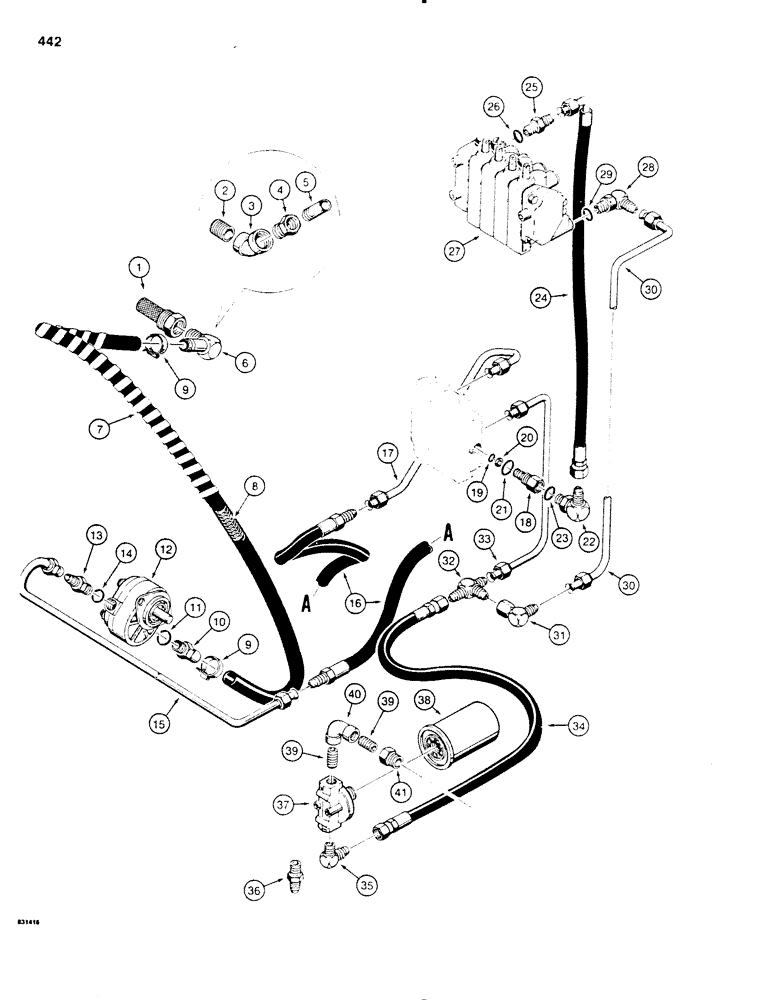

Запчасти Case SD100 (442) - BACKHOE PUMP, PRESSURE, AND RETURN HYDRAULIC CIRCUIT, USED WITH H588566 BACKHOE VALVE (35) - HYDRAULIC SYSTEMS

1

H599720

FILTER

SCREEN - suction filter, reservoir, 1" NPT

1шт.

2

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT x 1-1/2" long, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

3

221-370

ELBOW

- 45 degree, female, 1" NPT, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

4

221-604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducing, 1" NPT, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

5

H30650

NIPPLE, LUBE

NIPPLE - special, 1" NPT, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

6

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree, 1" NPT at screen, replace refs. 2 - 5, if used

1шт.

Used with direct drive transmissions, see figure 108.

1шт.

7

H169037

HOSE ASSY.

HOSE - suction, 44" (1118 mm) long

1шт.

8

H33233

VALVE SPRING

SPRING - hose

2-3шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

10

H30643

- special, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

12

H554907

PUMP

- hydraulic, Cessna No.24306-LAC, counterclockwise rotation, parts list figure 410

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

15

H570739

TUBE,0.625" OD

-pressure

1шт.

16

H195511

HOSE ASSY.

HOSE - pressure, 45" (1143 mm) long, Serial Range: tube-tube

1шт.

17

REF

INSTRUCTION

TUBE - pressure, hose to backfill blade valve, see figure 264 for correct part

1шт.

D61608

SLEEVE

PLUG ASSEMBLY - power beyond, Includes: Ref. 18-21

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond, Includes: Ref. 19-21

1шт.

19

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

20

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

21

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

22

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

H267112

HOSE ASSY.

HOSE - pressure, 26" (660 mm) long, 90 degree tube end, Serial Range: valve-valve

1шт.

25

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

27

H588566

VALVE

CONTROL VALVE - backhoe, four spool, parts list figures 462 - 466

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

30

H628727

TUBE,0.625" OD

- return, valve to tee

1шт.

31

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

32

218-595

TEE,7/8"-14, 37 Degree

- tube, male

1шт.

33

REF

INSTRUCTION

TUBE - return, backfill blade valve to tee, see figure 264 for correct part

1шт.

34

H200279

HOSE ASSY.

HOSE - return, 23" (584 mm) long, if used

1шт.

34

H213025

HOSE ASSY.

HOSE - return, 23" (584 mm) long, if used

1шт.

35

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male, if used

1шт.

36

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male, if used

1шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, Includes: Ref. 37, 38

1шт.

37

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

38

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

39

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2" NPT x 1-1/8" long

2шт.

40

221-377

ELBOW,90 Degree, 1/2" NPT

- 90 degree, female, 1/2" NPT

1шт.

41

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 1/2" NPT

1шт.
