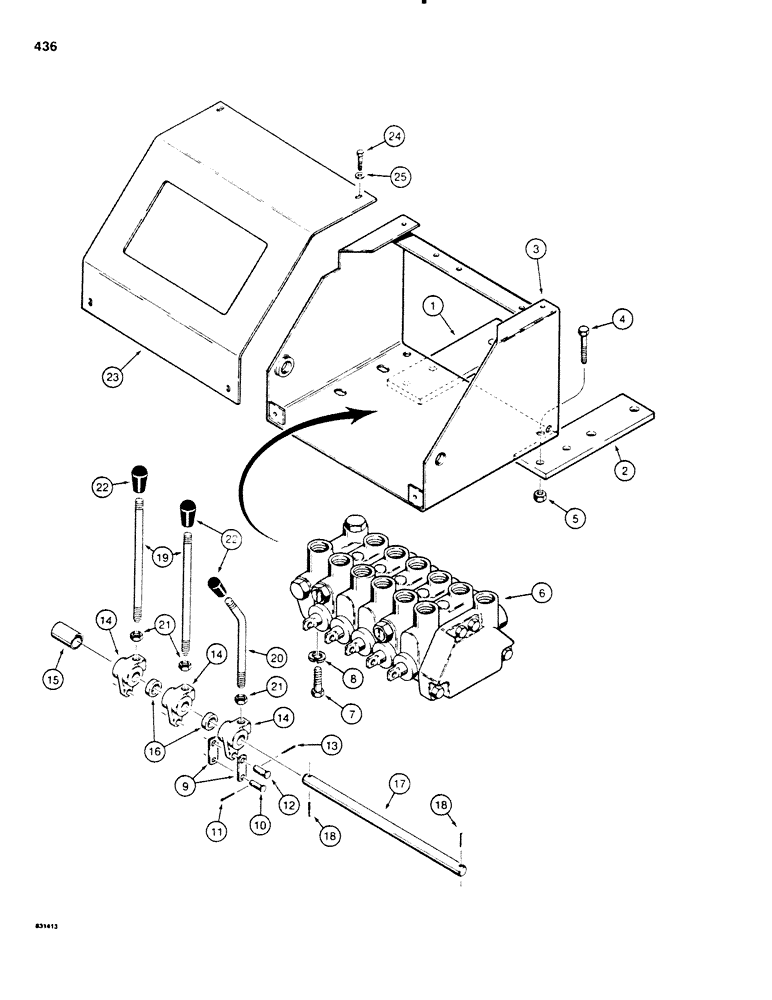

Запчасти Case SD100 (436) - H560292 BACKHOE VALVE MOUNTING AND CONTROLS (35) - HYDRAULIC SYSTEMS

1

H191882

PLATE

- console mounting, left-hand

1шт.

2

H191874

PLATE

- console mounting, right-hand

1шт.

3

H559856

CONSOLE - valve mounting

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

6

H560292

VALVE

CONTROL VALVE - backhoe, five spool, parts list figures 460 thru 466

1шт.

7

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

3шт.

8

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

9

H185066

DRAG LINK

LINK -, Serial Range: spool-lever

10шт.

10

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

5шт.

11

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

5шт.

12

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long

5шт.

13

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

5шт.

14

H275263

LEVER

- control handle

5шт.

15

H195099

SPACER

- lever, long

2шт.

16

H191908

SPACER

- lever, short

4шт.

17

H191866

SHAFT

- lever pivot

1шт.

18

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted, Shaft

2шт.

19

H191916

ROD

HANDLE - lever

4шт.

20

H191924

LEVER

HANDLE - lever, blade control

1шт.

21

87016560

JAM NUT,Jam, 3/8"-16, G5

5шт.

22

A14051

GRIP

KNOB - handle

5шт.

23

H191890

PLATE

COVER - console

1шт.

24

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4"

4шт.

25

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.
