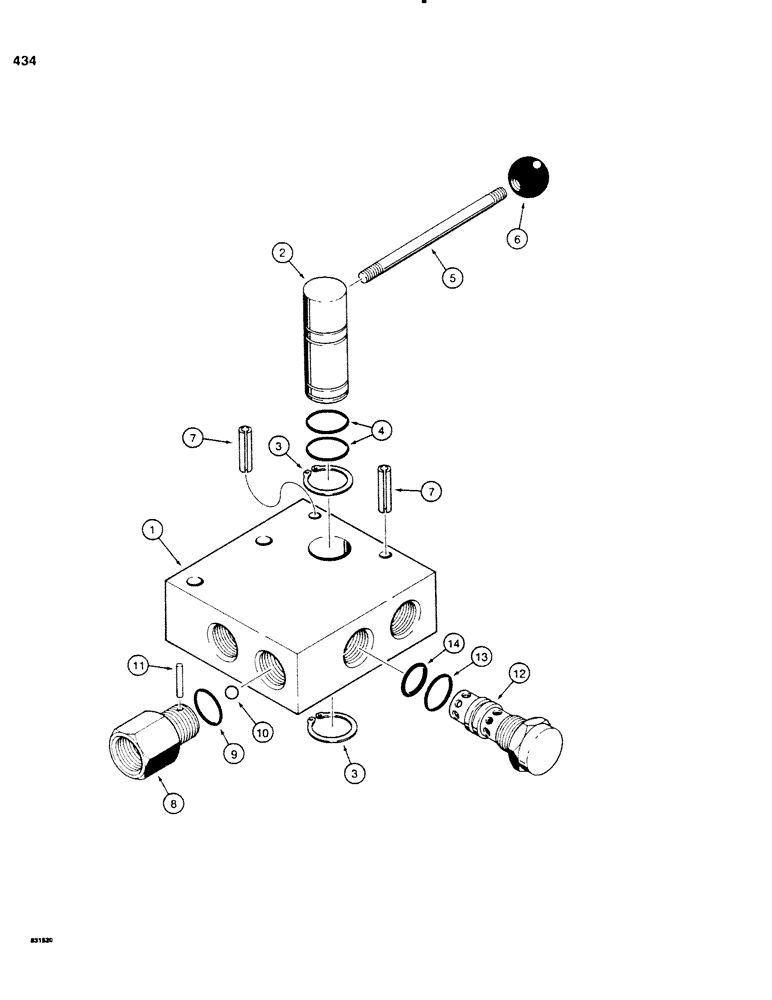

Запчасти Case SD100 (434) - H582064 PTO CONTROL VALVE (35) - HYDRAULIC SYSTEMS

H582064

VALVE

CONTROL VALVE - PTO, Includes: Ref. 1-14

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

B18206

SNAP RING,#87, Ext

RING, Snap, , spool #87, Ext

2шт.

4

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- spool retainer

2шт.

5

H249847

HANDLE

- valve

1шт.

6

H249839

KNOB

- handle

1шт.

7

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

H584557

VALVE

CHECK VALVE ASSEMBLY - valve, Includes: Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - check valve

1шт.

9

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- housing

1шт.

10

211-104

BALL

- steel, 3/8", check valve

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - nylon, check valve

1шт.

12

H584326

VALVE

RELIEF VALVE - control, 2000 psi

1шт.

13

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- relief valve, large

1шт.

14

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- relief valve, small

1шт.
