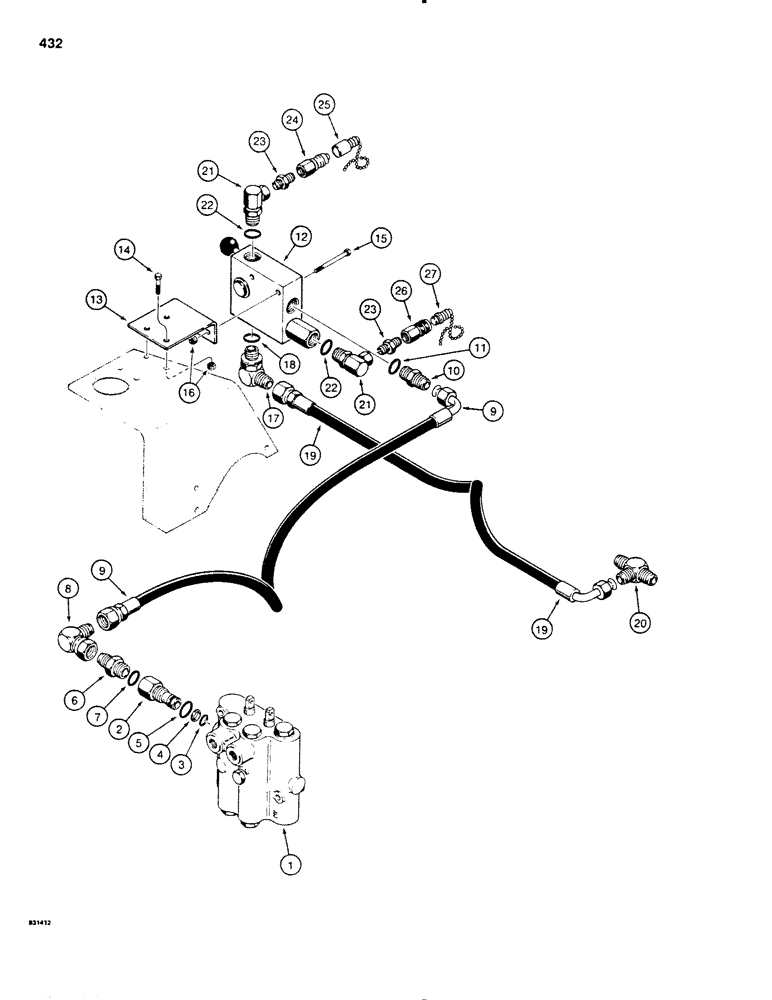

Запчасти Case SD100 (432) - PTO HYDRAULIC CIRCUIT, USED WITH BACKHOE AND BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

H550079

LOCK VALVE

CONTROL VALVE - Cessna No.31522-AL, parts list figure 52

1шт.

H919670

KIT - PTO, hydraulic, used with backhoe, machinery item, see figure 1 for ordering

1шт.

D61608

SLEEVE

PLUG ASSEMBLY - power beyond, Includes: Ref. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond

1шт.

3

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

4

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

5

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 7 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

9

H248682

HOSE ASSY.

HOSE - pressure, 14" (356 mm) long, 90 degree tube end

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 11 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

12

H582064

VALVE

CONTROL VALVE - PTO, parts list figure 434

1шт.

13

H248237

MOUNTING CLIP

BRACKET - PTO valve mounting

1шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 18

1шт.

19

H248773

HOSE

- return, 43" (1092) long, 90 degree tube end

1шт.

20

REF

INSTRUCTION

HOSE - pressure, to backfill blade valve, not included in kit, see figures 256 to 264 ref. 8 or 9

1шт.

21

218-5387

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 3/8" NPSM Fem

- 90 degree, adjustable, swivel, Includes: Ref. 22

2шт.

23

217-1192

ADAPTER,3/8"-18 NPTF x 3/8"-18 NPSM

- male

1шт.

24

H246009

NIPPLE, LUBE

COUPLER - male

1шт.

25

H248518

CAP

- dust, for male coupler

1шт.

26

H245993

COUPLING

COUPLER - female

1шт.

27

H248526

PLUG

- dust, for female coupler

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
