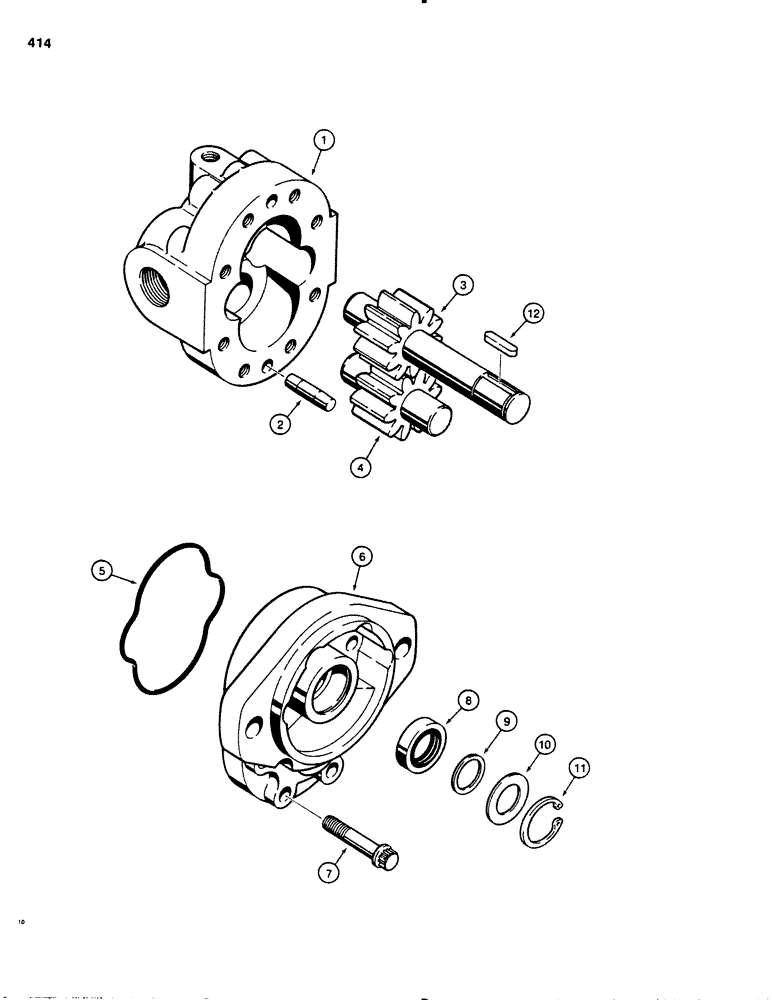

Запчасти Case SD100 (414) - H654814 HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

H654814

MOTOR

- hydra-borer, Cessna No.21306-DDE, Includes: Ref. 1-12

1шт.

1

H660316

HOUSING

- port end

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

DOWEL PIN - housing

2шт.

3

H660332

GEAR

- drive

1шт.

4

H660324

GEAR

- driven

1шт.

5

R20165

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

- housing seal

1шт.

6

H656660

FRONT PLATE

HOUSING - output shaft end

1шт.

7

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

BOLT- Ferry head, 5/16" - 18 NC x 1-1/2"

8шт.

8

H263608

SEAL

- shaft, output

1шт.

9

H418004

WASHER

WAHSER - backup

1шт.

10

H94490

WASHER

- special

1шт.

11

A36277

SNAP RING,1.125", Int, #112

seal 1.125", Int, #112

1шт.

12

H413575

KEY

- drive shaft

1шт.
