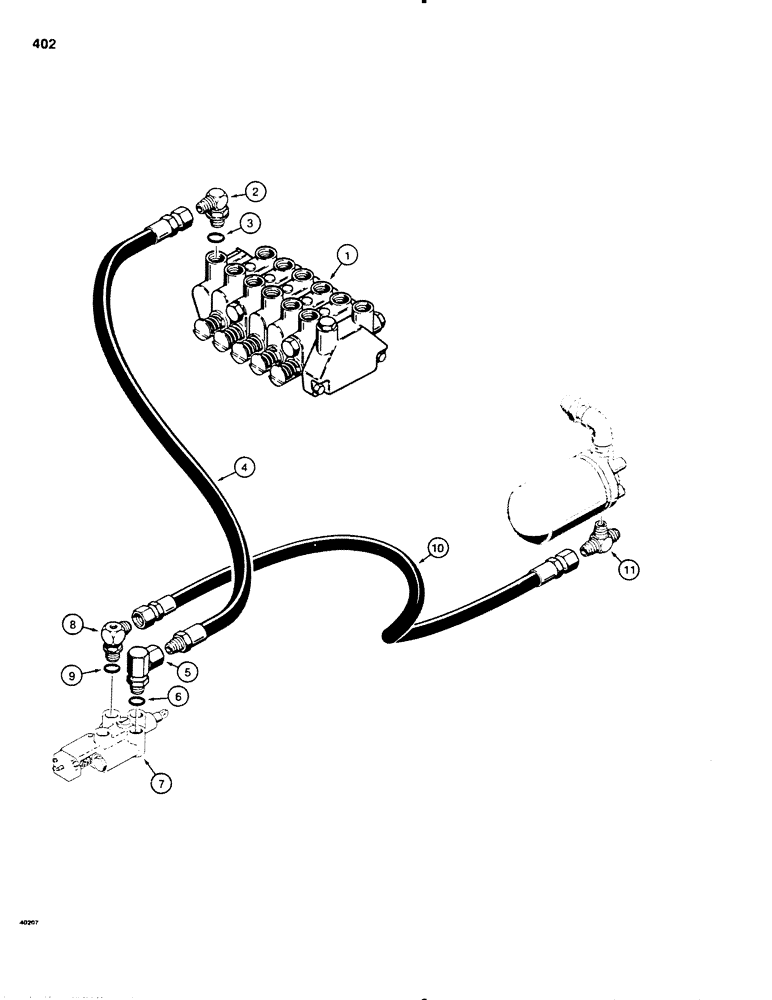

Запчасти Case SD100 (402) - HYDRA-BORER CONTROL VALVE HYDRAULIC CIRCUIT, USED WITH H560292 FIVE SPOOL BACKHOE VALVE (35) - HYDRAULIC SYSTEMS

1

H560292

VALVE

CONTROL VALVE - backhoe, five spool, part list figures 460, 464 and 466

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

4

H88567

HOSE - pressure, 47" (1194 mm) long, power beyond

1шт.

5

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- 90 degree, adjustable, swivel, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

7

H544718

LOCK VALVE

CONTROL VALVE - one spool, hydra-borer, parts list figure 408

1шт.

8

H211557

ADAPTER

ELBOW - 90 degree, special, male, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

10

H195958

HOSE,45.00", SAE 100R1

Return 45.00", SAE 100R1

1шт.

11

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

- male, return, see figure 386 or 390 for complete return to tank circuit

1шт.
