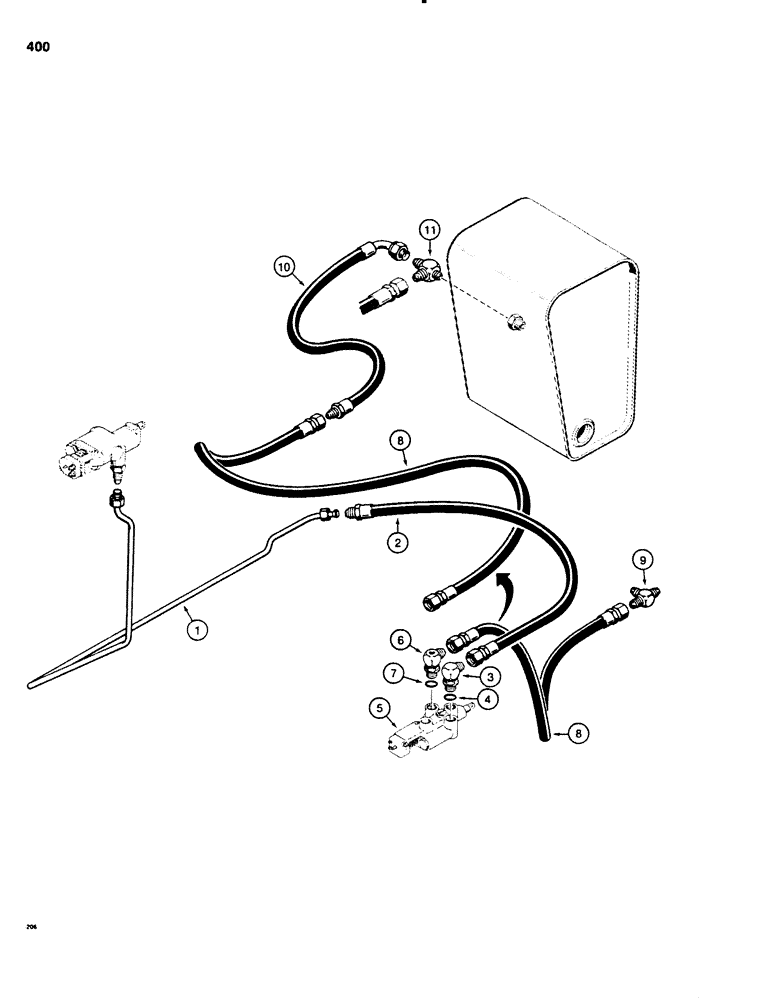

Запчасти Case SD100 (400) - HYDRA-BORER CONTROL VALVE HYDRAULIC CIRCUIT, USED WITH LINE LAYER AND/OR BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

TUBE - return, see figure 256, 258, 334, 336 or 338 for correct part

1шт.

2

H206474

HOSE

- pressure, 59" (1499 mm) long, Serial Range: valve-valve

1шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

5

H544718

LOCK VALVE

CONTROL VALVE - one spool, hydra-borer, part list figure 408

1шт.

6

H211557

ADAPTER

ELBOW - 90 degree special, male, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

8

H209783

HOSE ASSY.

HOSE - return, 46" (1168 mm) long

1шт.

9

218-594

TEE,3/4"-16, 37 Degree

- return, see figure 164 ref. 9 for return circuit, if used

1шт.

10

H281576

HOSE

- return, 89" (2261 mm) long, 90 degree tube end, hose to reservoir, if used

1шт.

11

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- return, to reservoir, see figures 168 - 174, if used

1шт.
