Запчасти Case SD100 (398) - HYDRA-BORER PUMP, PRESSURE, AND RETURN HYDRAULIC CIRCUIT, USED WITHOUT LINE LAYER & WITHOUT BACKHOE (35) - HYDRAULIC SYSTEMS

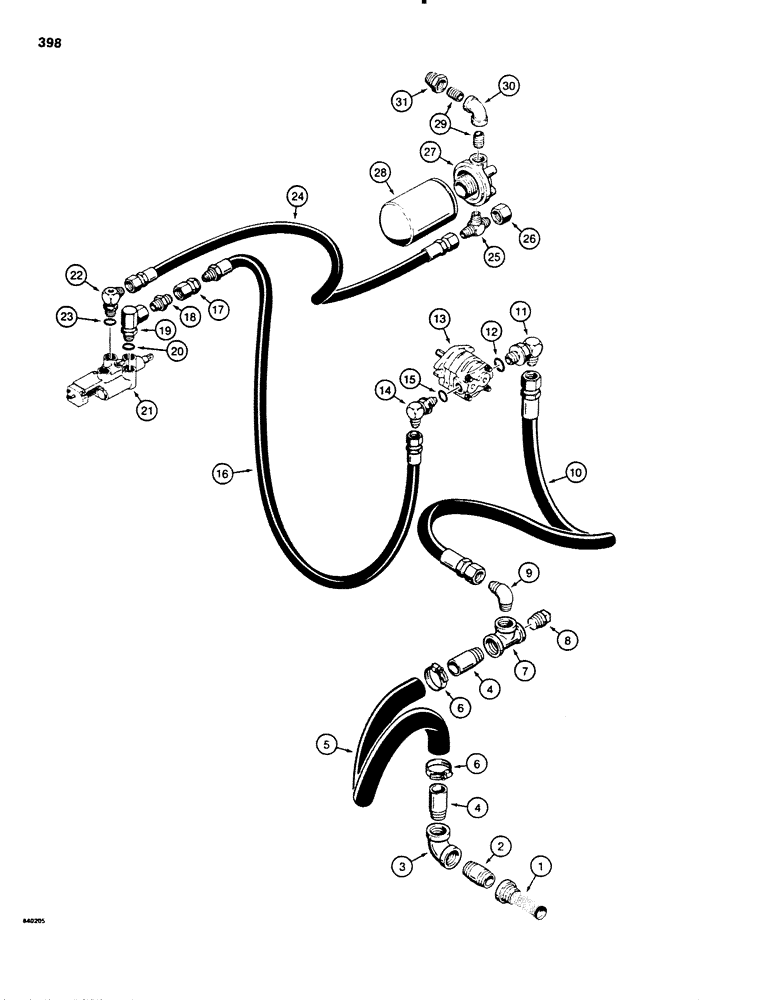

Схема запчастей Case SD100 - (398) - HYDRA-BORER PUMP, PRESSURE, AND RETURN HYDRAULIC CIRCUIT, USED WITHOUT LINE LAYER & WITHOUT BACKHOE (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

H599720

FILTER

SCREEN - suction filter, reservoir, 1" NPT

1шт.

1

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT x 1-1/2" long

1шт.

3

221-370

ELBOW

- 45 degree, female, 1" NPT

1шт.

4

H195271

NIPPLE, LUBE

NIPPLE - special, 1" NPT

2шт.

5

H208165

HOSE

- suction, 30" (762 mm) long

1шт.

6

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

7

221-453

TEE

- pipe, reducing

1шт.

8

221-1048

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PIPE PLUG - square head 3/4' NPT

1шт.

9

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male

1шт.

10

A140575

HOSE

Suction, Serial Range: Tee-Pump

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

13

H554907

PUMP

- hydraulic, Cessna No.24306-LAC, counterclockwise rotation parts list figure 410

1шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, male, Incl. Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

16

H207753

HOSE

- pressure, 65" (1651 mm) long

1шт.

17

H215848

ADAPTER

- straight, female, swivel

1шт.

18

217-1195

ADAPTER,1/2"-14 NPTF x 1/2"-14 NPSM

- straight, male

1шт.

19

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- 90 degree, adjustable, swivel, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

21

H544718

LOCK VALVE

CONTROL VALVE - one spoll, hydra-borer, parts, list figure 408

1шт.

22

H211557

ADAPTER

ELBOW - 90 degree, special, male, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

H195958

HOSE,45.00", SAE 100R1

Return 45.00", SAE 100R1

1шт.

25

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

- male, return

1шт.

26

218-756

CAP,37 Degree, 7/8"-14

Tee 37º, 7/8"-14

1шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, Includes: Ref. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

28

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

29

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2" NPT x 1-1/8" long

2шт.

30

221-377

ELBOW,90 Degree, 1/2" NPT

- 90 degree, female, 1/2" NPT

1шт.

31

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 1/2 " NPT

1шт.

Выбрано товаров: 32
