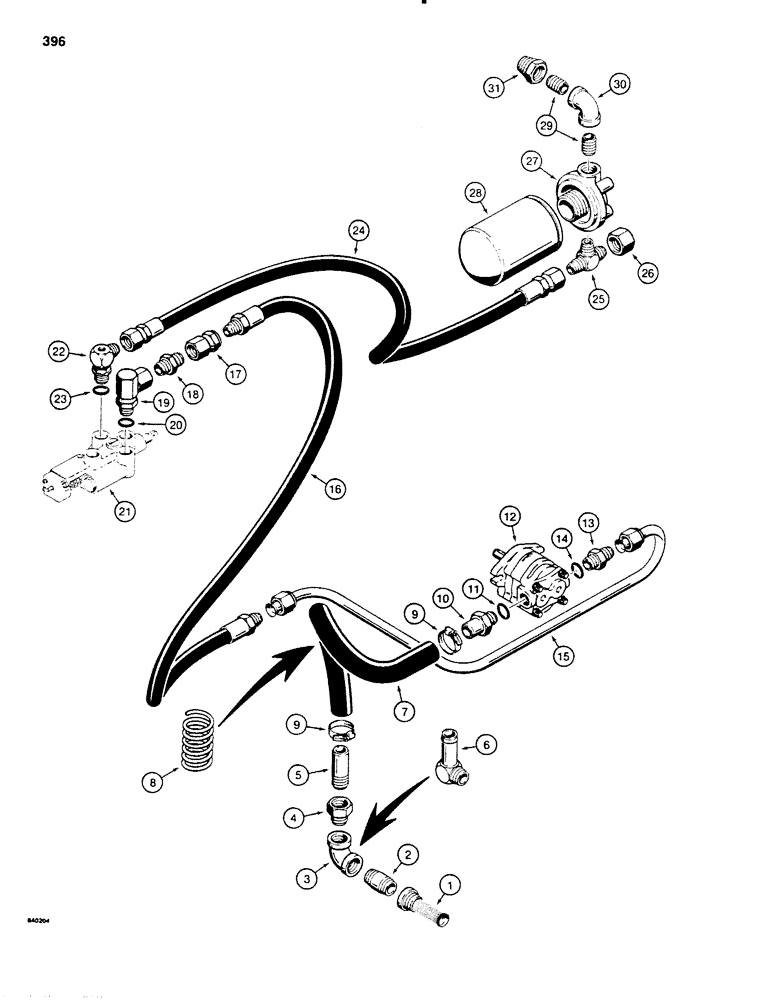

Запчасти Case SD100 (396) - HYDRA-BORER PUMP, PRESSURE, AND RETURN HYDRAULIC CIRCUIT, USED WITHOUT LINE LAYER & WITHOUT BACKHOE (35) - HYDRAULIC SYSTEMS

1

H599720

FILTER

SCREEN - suction filler, reservoir, 1" NPT

1шт.

2

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT x 1-1/2" long, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

3

221-370

ELBOW

- 45 degree, female 1" NPT, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

4

221-604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducing, 1" NPT to 3/4", if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

5

H30650

NIPPLE, LUBE

NIPPLE - special 1" NPT, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

6

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree, 1" NPT at screen, replaces Ref. 2 - 5, if used

1шт.

Used with direct drive transmissions, see figure 108.

1шт.

7

H169037

HOSE ASSY.

HOSE - suction, 44" (1118 mm) long

1шт.

8

H33233

VALVE SPRING

SPRING - hose

2-3шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

10

H30643

- special, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

H554907

PUMP

- hydraulic, Cessna No.24306-LAC, counterwise rotation, parts list figure 410

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

15

H560086

TUBE,0.625" OD x 12.75, 13.75" L

- pressure, 30 + 4 and 30 + 4 special only

1шт.

15

H570739

TUBE,0.625" OD

- pressure, 40 + 4 only

1шт.

16

H195511

HOSE ASSY.

HOSE - pressure, 45" (1143 mm) long, Serial Range: tube-tube

1шт.

17

H215848

ADAPTER

- straight, female, swivel

1шт.

18

217-1195

ADAPTER,1/2"-14 NPTF x 1/2"-14 NPSM

- straight, male

1шт.

19

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- 90 degree, adjustable, swivel, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

21

H544718

LOCK VALVE

CONTROL VALVE - one spool, hydra-borer, parts list figure 408

1шт.

22

H211557

ADAPTER

ELBOW - 90 degree. special, male, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

H195958

HOSE,45.00", SAE 100R1

Return 45.00", SAE 100R1

1шт.

25

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

- male return

1шт.

26

218-756

CAP,37 Degree, 7/8"-14

Tee 37º, 7/8"-14

1шт.

H568014

FILTER CARTRIDGE

FITLER ASSEMBLY - oil, Includes: Ref. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

28

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

29

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2" NPT x 1-1/8" long

2шт.

30

221-377

ELBOW,90 Degree, 1/2" NPT

- 90 degree, female, 1/2" NPT

1шт.

31

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 1/2" NPT

1шт.
