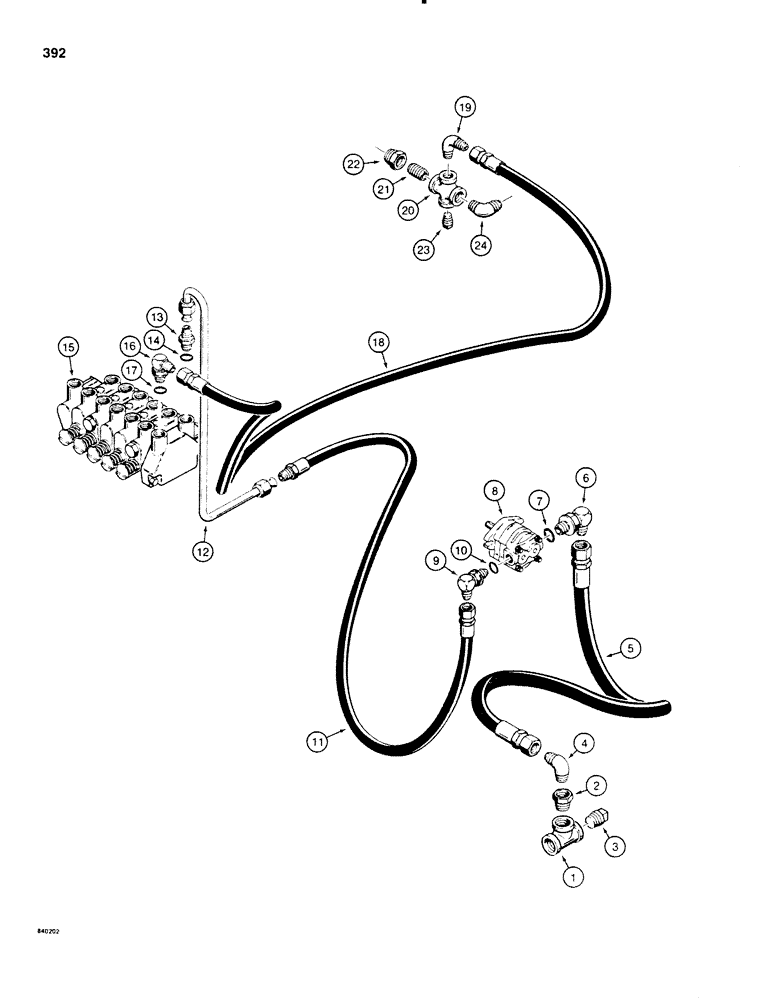

Запчасти Case SD100 (392) - HYDRA-BORER PUMP, PRESSURE, AND RETURN HYDRAULIC CIRCUIT, USED ON 30+4 SPECIAL S/N 3761 AND AFTER (35) - HYDRAULIC SYSTEMS

1

221-426

FITTING,1" NPT

TEE - pipe, , see figure 332 refs. 1 - 6 for complete suction circuit to resvoir 1" NPT

1шт.

2

221-1604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducing, 1" NPT TO 3/4" NPT

1шт.

3

221-1048

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PIPE PLUG - square head, 3/4" NPT, used without line layer, if used

1шт.

4

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male, replaces 221-1048 plug, used with line layer

1шт.

5

A140575

HOSE

Suction

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

8

H554907

PUMP

- hydraulic, Cessna No.24306-LAC, counterclockwise rotation, parts list figure 410

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

11

H207753

HOSE

- pressure, 65" (1651 mm) long, Serial Range: pump-tube

1шт.

12

H561069

TUBE - pressure, hose to H560292 valve

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - staright, male, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

15

H560292

VALVE

CONTROL VALVE - backhoe, five spool, parts list figures 460, 464 and 466

1шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, male, Incl. Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

H215798

HOSE - return, 69" (1753 mm) long, Serial Range: valve-filter

1шт.

19

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male

1шт.

20

221-510

CROSS - pipe, reducing, female

1шт.

21

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT x 1-3/8" long

1шт.

22

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 3/4" NPT

1шт.

23

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PIPE PLUG - square head, 1/2" NPT, used without backhoe, if used

1шт.

24

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male goes to H284356 hose on figure 332

1шт.
