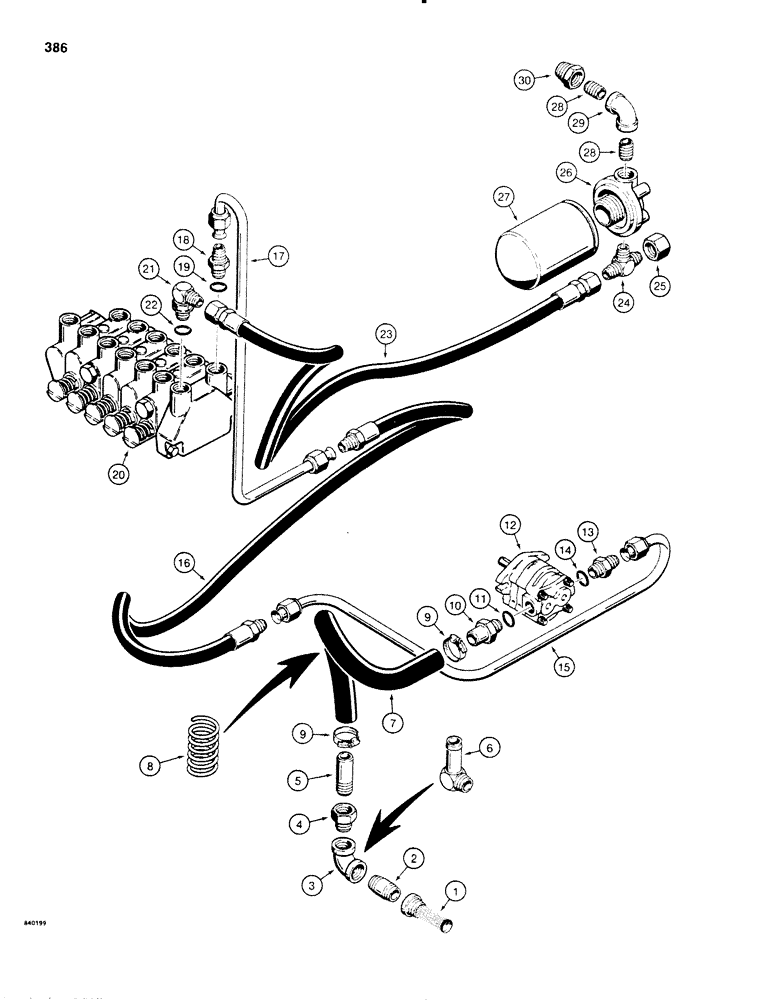

Запчасти Case SD100 (386) - HYDRA-BORER PUMP, PRESSURE, AND RETURN HYDRALIC CIRCUIT, MUST USE A STANDARD BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

H599720

FILTER

SCREEN - suction filter, reservoir, 1" NPT

1шт.

2

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT x 1-1/2" long, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

3

221-604

REDUCER,Hex, 1" x 3/4" NPT

ELBOW - 45 degree, female 1" NPT, if uses

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

4

221-604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducing, 1" NPT TO 3/4" NPT, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

5

H30650

NIPPLE, LUBE

NIPPLE - special, 1" NPT, if used

1шт.

Used with chain drive transmissions, see figure 106.

1шт.

6

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree 1" NPT at screen, replaces refs. 2 - 5, if used

1шт.

Used with direct drive transmissions, see figure 108.

1шт.

7

H169037

HOSE ASSY.

HOSE - suction, 44" (1118 mm) long

1шт.

8

H33233

VALVE SPRING

SPRING - hose

2-3шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

10

H30643

- special

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

12

H554907

PUMP

- hydraulic, Cessna No 24306 - LAC, counterclockwise rotation, parts list figure 410

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

15

H560086

TUBE,0.625" OD x 12.75, 13.75" L

- pressure 30+4 only1

1шт.

16

H195511

HOSE ASSY.

HOSE - pressure, 45" (1143 mm) long, Serial Range: tube-tube

1шт.

17

H560169

TUBE,0.625" OD

- pressure, hose to H560292 valve only

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

20

H560292

VALVE

CONTROL VALVE - backhoe, five spool, parts list figures 460, 464 and 466

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Incl. Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

23

H215798

HOSE - return 69" (1753 mm) long, Serial Range: valve-filter

1шт.

24

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

- male, return

1шт.

25

218-756

CAP,37 Degree, 7/8"-14

Tee, Used without backhoe, if used, Includes: Ref. 26, 27 37º, 7/8"-14

1шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLEY - oil

1шт.

26

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

27

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

28

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2" NPT x 1-1/8" long

2шт.

29

221-377

ELBOW,90 Degree, 1/2" NPT

- 90 degree, female, 1/2" NPT

1шт.

30

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 1/2" NPT

1шт.
