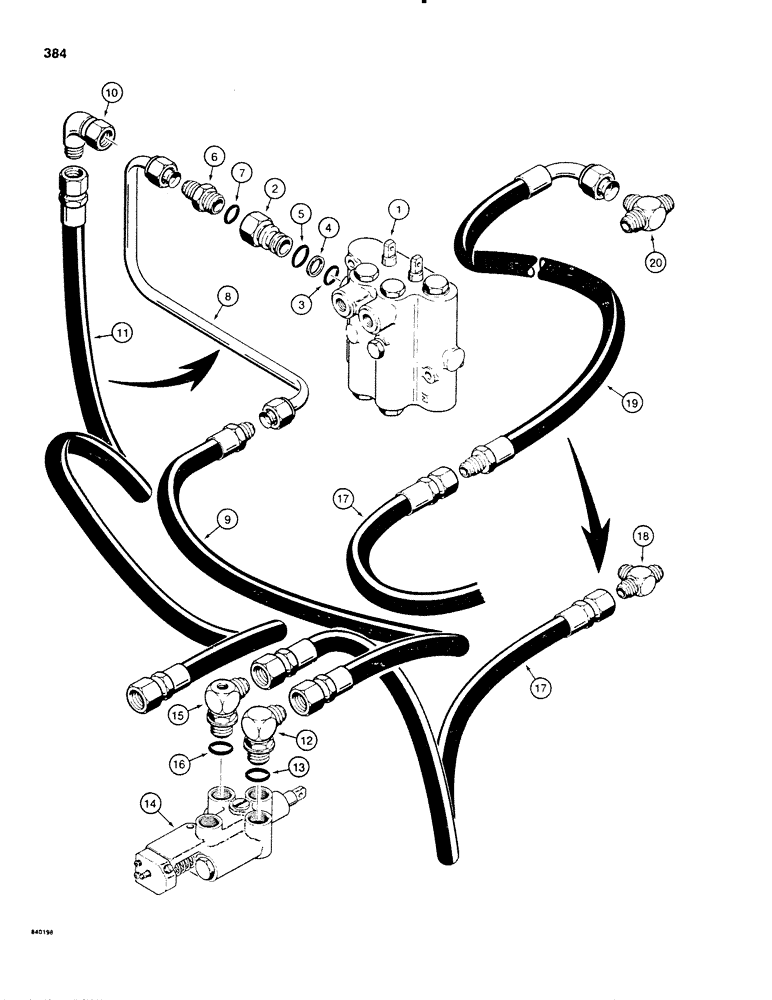

Запчасти Case SD100 (384) - HYDRA-BORER PRESSURE AND RETURN HYDRAULIC CIRCUIT, USES W/O LINE LAYER AND W/O BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

H50079

CONTROL VALVE - Cessna No. 31522-AL, parts list figure 52, see steering circuit figure 50

1шт.

D61608

SLEEVE

PLUG ASSEMBLY - power beyond, Includes: Ref. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond, Includes: Ref. 3-5

1шт.

3

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

4

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

5

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 7 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

7

128-5007

O-RING - adapter

1шт.

8

H560045

TUBE - pressure, valve to hose, if used 0.5" OD x 8.187, 3.75" L

1шт.

9

H206441

HOSE

- pressure, 46" (1168 mm) long, used with H560045 tube only

1шт.

10

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel

1шт.

11

L48222

HOSE

- pressure, 72" (1829 mm) long, used in place of H560045 and H206441, used with 218-5230

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjuster, male, Incl. Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

14

H544718

LOCK VALVE

CONTROL VALVE - one spool, hydra-bora, parts list figure 408

1шт.

15

H211557

ADAPTER

ELBOW - 90 degree, special, male, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

17

H209783

HOSE ASSY.

HOSE - return, 46" (1168 mm) long, used before 30+4 SN 4350 and before 40+4 SN 3200

1шт.

18

218-594

TEE,3/4"-16, 37 Degree

- return, see figure 164 ref. 9 for remainder of return circuit used before 30+4 SN 4350 and before 40+4 SN 3200

1шт.

19

H281576

HOSE

- 90 degree tube end, 89" (2261 mm) long, return, used on 30+4 SN 4350 and after and on 40+4 SN 3200 and after

1шт.

20

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- return, see figures 168 thru 174 for remainder of return circuit, used on 30+4 4350 and after and on 40+4 SN 3200 and after

1шт.
