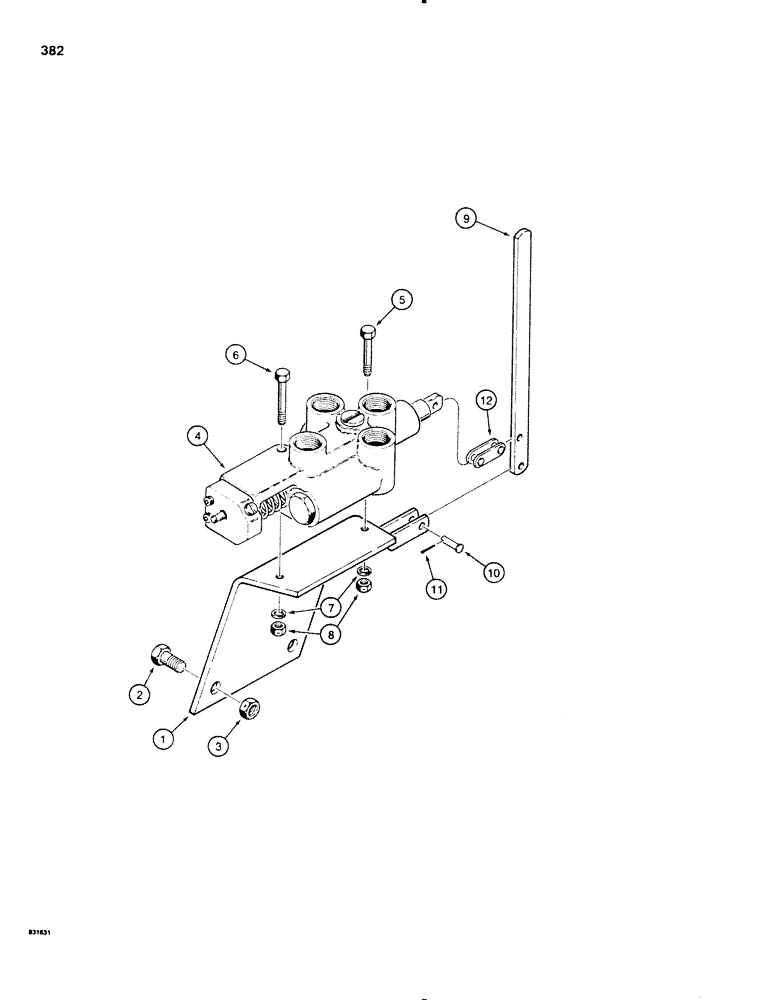

Запчасти Case SD100 (382) - HYDRA-BORER VALVE MOUNTING AND CONTROLS (35) - HYDRAULIC SYSTEMS

1

H504050

SUPPORT

BRACKET - valve mounting

1шт.

2

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, silf-locking, 1/2" - 13 NC

2шт.

4

H544718

LOCK VALVE

CONTROL VALVE - one spool, hydra-borer parts list figure 408

1шт.

5

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

9

H71415

LEVER

- control valve

1шт.

10

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special 3/16" x 57/64" long

1шт.

11

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

12

B12505

LINK

- connector, complete

1шт.
