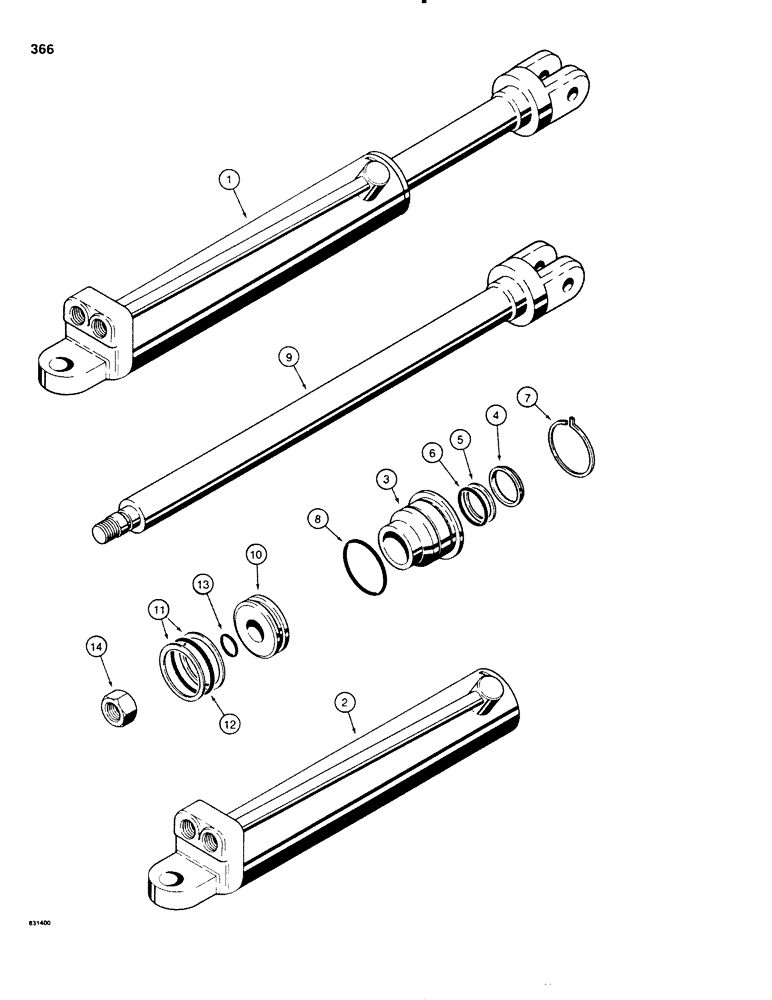

Запчасти Case SD100 (366) - H560730 LINE LAYER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

H560730

CYLINDER

ASSEMBLY - line layer lift, 2-1/2" ( 63.5 mm) ID x 7-1/4" (184.2 mm) stroke, Lantex No. 980-01, Includes: Ref. 2-14

1шт.

2

H207001

TUBE - cylinder

1шт.

3

H207043

GLAND

- cylinder

1шт.

4

H222935

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit P/N H207068

1шт.

5

H745687

WASHER

BACKUP RING - small O-ring, gland inner, piston rod

1шт.

Part of seal kit P/N H207068

1шт.

6

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - piston rod, small, gland inner

1шт.

Part of seal kit P/N H207068

1шт.

7

H207027

LOCK ASSY

RETAINING RING - gland

1шт.

Part of seal kit P/N H207068

1шт.

8

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland, outer

1шт.

Part of seal kit P/N H207068

1шт.

9

H207050

ROD

- PISTON, 1-1/2" (38.1 mm) diameter

1шт.

10

H207035

PISTON ASSY.

PISTON - cylinder

1шт.

11

A35810

RING

BACKUP RING - piston seal, outer

2шт.

Part of seal kit P/N H207068

1шт.

12

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL - piston, outer

1шт.

Part of seal kit P/N H207068

1шт.

13

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- piston, inner

1шт.

Part of seal kit P/N H207068

1шт.

14

131-370

LOCK NUT

NUT - hex, self-locking, 1" - 14 UNS

1шт.

H207068

SEAL

KIT - seal, Includes: Refs. 4 - 8, 11, 12 and 13

1шт.
