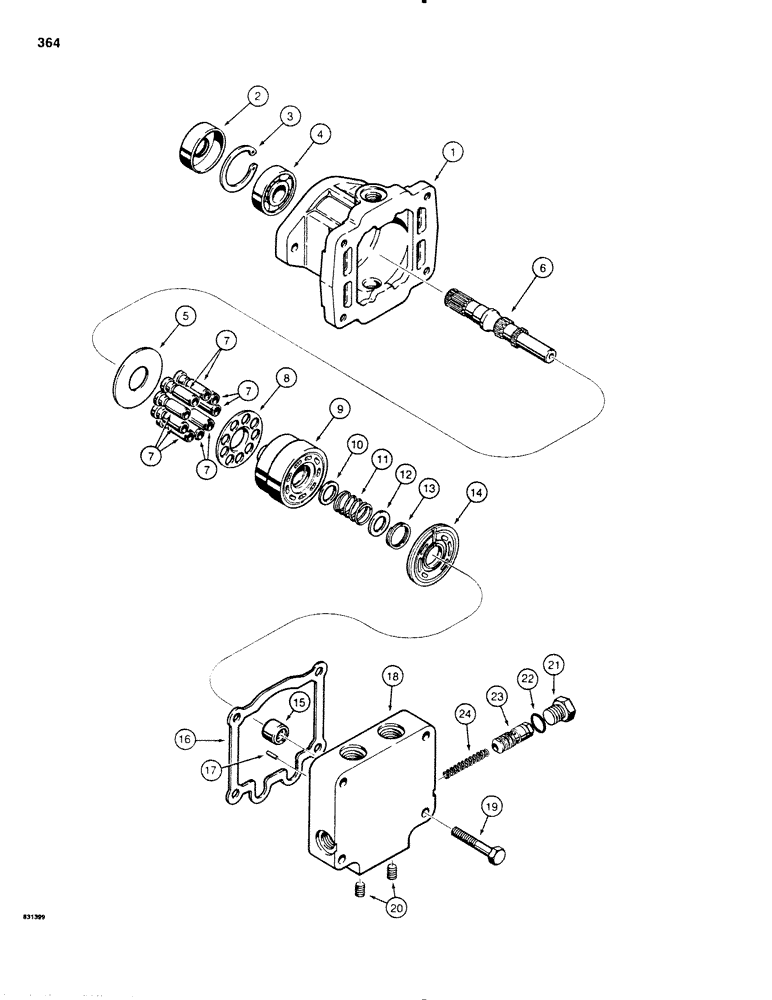

Запчасти Case SD100 (364) - H585463 AND H619676 LINE LAYER MOTORS (35) - HYDRAULIC SYSTEMS

H585463

MOTOR

ASSEMBLY - line layer, sundstrand No. 15-3011, no longer available, service with H619676 motor

1шт.

H619676

FASTENER

MOTOR ASSEMBLY - line layer, Sundstrand No. 15-3026, Includes: Ref. 1-24

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - output shaft end

1шт.

2

H755892

SEAL ASSY.

SEAL - shaft, output

1шт.

3

A31078

SNAP RING,2.062", Int, #206

Brg 2.062", Int, #206

1шт.

4

H757955

BEARING

- shaft, outer

1шт.

5

D63400

PLATE

- thrust

1шт.

6

H351478

SHAFT

- output

1шт.

D63398

BLOCK

KIT - cylinder block, motor, Includes: Ref. 7-13

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

THRUST WASHER - spring, inner

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - spring, outer

1шт.

13

NSS

NOT SOLD SEPARAT

SNAP RING - block

1шт.

14

H255042

VALVE

PLATE - valve, used in H585463 only

1шт.

14

H351494

PLATE - valve, used in H619676 only

1шт.

15

D65125

ROLLER BEARING,0.6699" ID x 0.937" OD x 0.62"

BEARING - shaft, inner

1шт.

16

H255059

GASKET

- housing

1шт.

17

D65124

PIN

- housing alignment

1шт.

18

H351486

END CAP - motor

1шт.

19

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

20

221-849

PLUG,Hex Soc, 1/8"-27

PIPE PLUG - hex socket head, 1/8" NPT

2шт.

21

214389

PLUG,3/4" - 16 ORB

Housing, Includes Ref. 22 Hex Hd, 3/4"-16 ORB

2шт.

23

H620823

VALVE

accelerator

2шт.

24

H249607

SPRING

- accelerator

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
