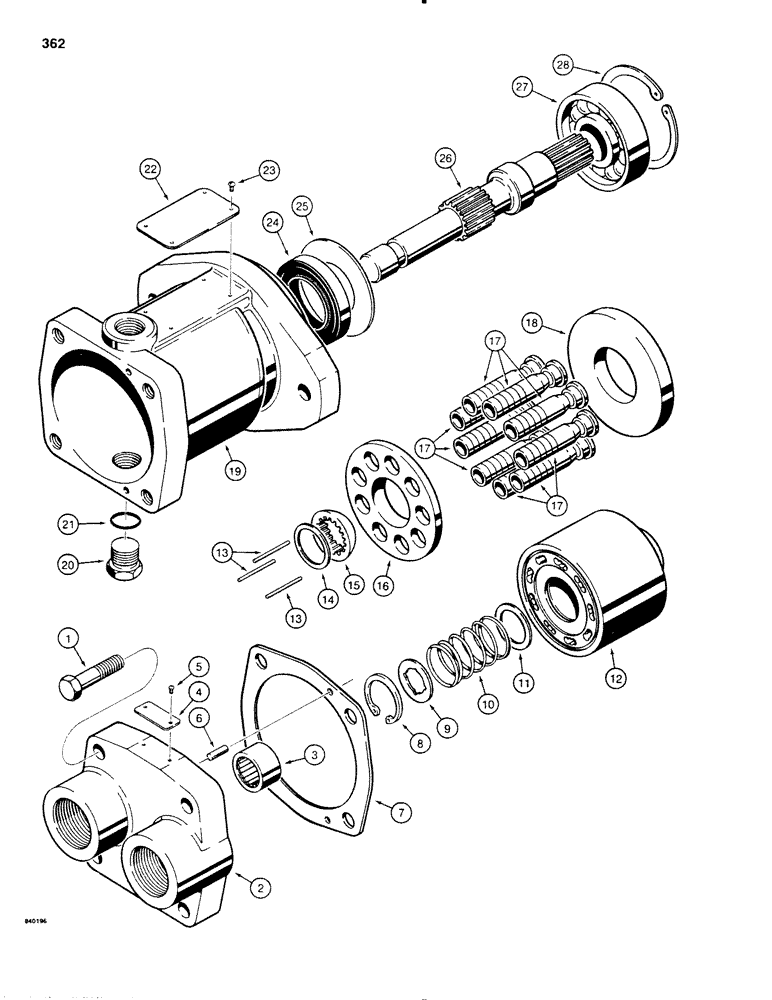

Запчасти Case SD100 (362) - H575282 LINE LAYER MOTOR (35) - HYDRAULIC SYSTEMS

H575282

SPARE PART

MOTOR ASSEMBLY - line layer, Vickers No. M-MFB6-UG-21, Includes: Ref. 1-28

1шт.

1

26-520

SCREW,Hex, 5/16"-18 x 1 1/4", G8

BOLT - hex head, 5/16" - 18 NC x 1-1/4" , grade 8

4шт.

H564351

PLATE

END CAP ASSEMBLY - motor, Includes: Ref. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

END CAP - motor

1шт.

3

H264945

BEARING - end cap, shaft, inner

1шт.

4

H264945

PLATE - end cap

1шт.

5

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

DRIVE SCREW - plate

2шт.

6

F37595

PIN

- housing alignment

2шт.

7

NSS

NOT SOLD SEPARAT

GASKET - housing

1шт.

H564336

KIT

ROTATING GROUP - motor, Includes: Ref. 8-18

1шт.

8

NSS

NOT SOLD SEPARAT

SNAP RING - block

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - lift limiter

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

11

NSS

NOT SOLD SEPARAT

THRUST WASHER - motor

1шт.

12

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - piston block

3шт.

14

NSS

NOT SOLD SEPARAT

WASHER - piston block

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - spherical

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON -motor

9шт.

18

NSS

NOT SOLD SEPARAT

SWASH-PLATE - thrust

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

20

76349

PLUG,9/16" - 18 ORB

Housing, Incl. Ref. 21 Hex Hd, 9/16"-18 ORB

1шт.

21

76349

PLUG,9/16" - 18 ORB

1шт.

22

NSS

NOT SOLD SEPARAT

NAME PLATE - motor

1шт.

23

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

DRIVE SCREW - plate

2шт.

24

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

25

L30558

WASHER

SPACER - bearing

1шт.

26

H207803

SHAFT

- output, motor

1шт.

27

H205351

BEARING

- shaft, outer

1шт.

28

D46211

SNAP RING,#78, Ext

RING, Snap, , output shaft, outer #78, Ext

1шт.
