Запчасти Case SD100 (358) - LINE LAYER VARIABLE DISPLACEMENT PUMPS (35) - HYDRAULIC SYSTEMS

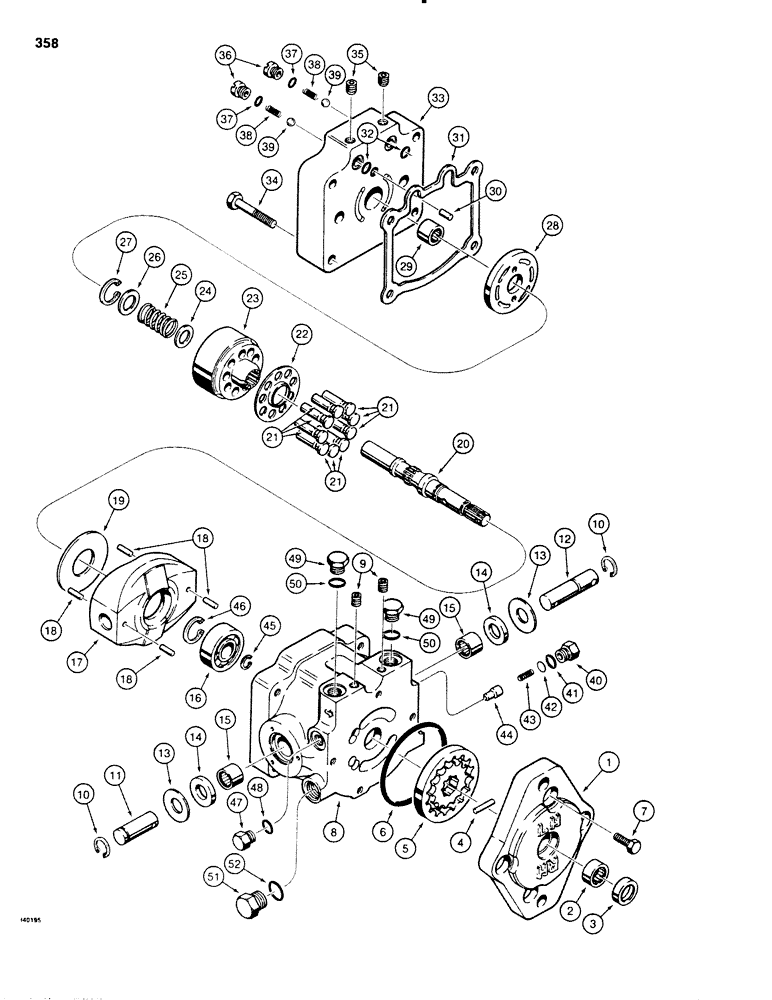

Схема запчастей Case SD100 - (358) - LINE LAYER VARIABLE DISPLACEMENT PUMPS (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

H602276

PUMP

ASSEMBLY - line layer, Sundstrand No. 15-2030, no longer available, order H646950 below, if used

1шт.

H646950

PUMP

ASSEMBLY - line layer, Sundstrand No. 1502043, if used

1шт.

H631937

PUMP

ASSEMBLY - line layer, sundstrand, same as H646950 plus three tapped holes for mounting control bracket H351585 (see figure 298), if used, Includes: Refs. 1-52

1шт.

H619858

KIT

PUMP KIT - charge, Includes: Ref. 1-7

1шт.

1

N7059

HOUSING

- charge pump

1шт.

2

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

- input shaft, outer

1шт.

3

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- input shaft

1шт.

4

N7060

AXLE PIN

PIN - pump drive

1шт.

5

H657395

PLATE

GEROTOR - charge pump

1шт.

6

W15848

O-RING,3.487" ID x 3.693" OD x 0.103"

- housing seal

1шт.

7

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

D63401

HOUSING

- pump, H602276 pump only, not shown

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - pump, H631937 and H646950 pumps only

1шт.

Part of housing kit P/N N7058

1шт.

9

F23401

PIPE PLUG - housing, special

2шт.

10

D65126

SNAP RING,#68, Ext

RING, Snap, , trunnion shaft #68, Ext

2шт.

11

D63408

SHAFT

- trunnion, control

1шт.

12

D63404

SHAFT

- trunnion

1шт.

13

H249599

WASHER

- special

2шт.

14

H755884

SEAL

- lip, trunnion shaft

2шт.

15

H756155

NEEDLE BEARING

- trunnion shaft

2шт.

16

D65122

BALL BEARING

- input shaft, middle

1шт.

17

D63399

PLATE

SWASH PLATE - pistons

1шт.

37

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, plug

1шт.

18

138-2062

PIN,3/16" x 5/8", Coiled

Trunnion shaft 3/16" x 5/8", Coiled

4шт.

41

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, plug

1шт.

Part of housing kit P/N N7058

1шт.

19

D63400

PLATE

THRUST PLATE - swash plate (replaces H63400)

1шт.

20

H351460

SHAFT

- input, used in H602276 pump only, not shown

1шт.

Ref. 20 and Ref. 29 are interchangable if both are replaced as a set

1шт.

20a

H437096

SHAFT

- input, used in H631937 and H646950 pump only (replaces N8345)

1шт.

D63398

BLOCK

KIT - cylinder block, pump, Includes: Ref. 21-27

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

23

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder

1шт.

24

NSS

NOT SOLD SEPARAT

THRUST WASHER - spring

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - spring, outer

1шт.

27

NSS

NOT SOLD SEPARAT

SNAP RING - block

1шт.

28

H255042

VALVE

PLATE - valve

1шт.

29

H437095

NEEDLE BEARING

ROLLER BEARING - shaft, inner (replaces D65125)

1шт.

Ref. 20 and Ref. 29 are interchangable if both are replaced as a set

1шт.

30

D65124

PIN

- housing alignment

1шт.

31

H255059

GASKET

- housing

1шт.

32

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- end cap

2шт.

33

D63397

CYLINDER END CAP

END CAP - pump

1шт.

34

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

4шт.

35

F23137

PLUG

PIPE PLUG - end cap, special

2шт.

Part of housing kit P/N N7058

1шт.

H591537

KIT

- check valve, Includes: Ref. 36-39

1-2шт.

36

D63410

PLUG

- check valve

1шт.

38

D63409

VALVE SPRING

SPRING - check valve

1шт.

39

211-12

BALL,7/16 Dia

- steel, check valve

1шт.

40

N7061

PLUG

- relief valve

1шт.

Part of housing kit P/N N7058

1шт.

42

D63406

SHIM

- relief valve

1шт.

Part of housing kit P/N N7058

1шт.

43

D63407

VALVE SPRING

SPRING - relief valve

1шт.

Part of housing kit P/N N7058

1шт.

44

D63413

CONE

PLUNGER - relief valve

1шт.

Part of housing kit P/N N7058

1шт.

45

D46211

SNAP RING,#78, Ext

RING, Snap, , input shaft, additional parts used in H631937 and H646950 pumps only #78, Ext

1шт.

46

16242

SNAP RING,1.852", Int, #185

Ring, Snap, , input shaft, bearing additional parts used in H631937 and H646950 pumps only 1.852", Int, #185

1шт.

47

129998

PLUG,1/2" - 20 ORB

Housing additional parts used in H631937 and H646950 pumps only, Incl. Ref. 48 Hex Hd, 1/2"-20 ORB

1шт.

Part of housing kit P/N N7058

1шт.

48

2185004

O-RING - plug additional parts used in H631937 and H646950 pumps only

1шт.

49

76349

PLUG,9/16" - 18 ORB

Housing additional parts used in H631937 and H646950 pumps only, Incl. Ref. 50 Hex Hd, 9/16"-18 ORB

2шт.

Part of housing kit P/N N7058

1шт.

50

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug, additional parts used in H631937 and H646950 pumps only

1шт.

51

214389

PLUG,3/4" - 16 ORB

Housing additional parts used in H631937 and H646950 pumps only, Includes Ref. 52 Hex Hd, 3/4"-16 ORB

1шт.

Part of housing kit P/N N7058

1шт.

N7058

HOUSING

KIT - housng, Includes: Refs. 8, 35, 40 - 44, 47, 49 and 51, used with H631937 and H646950 pumps only

1шт.

52

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug additional parts used in H631937 and H646950 pumps only

1шт.
