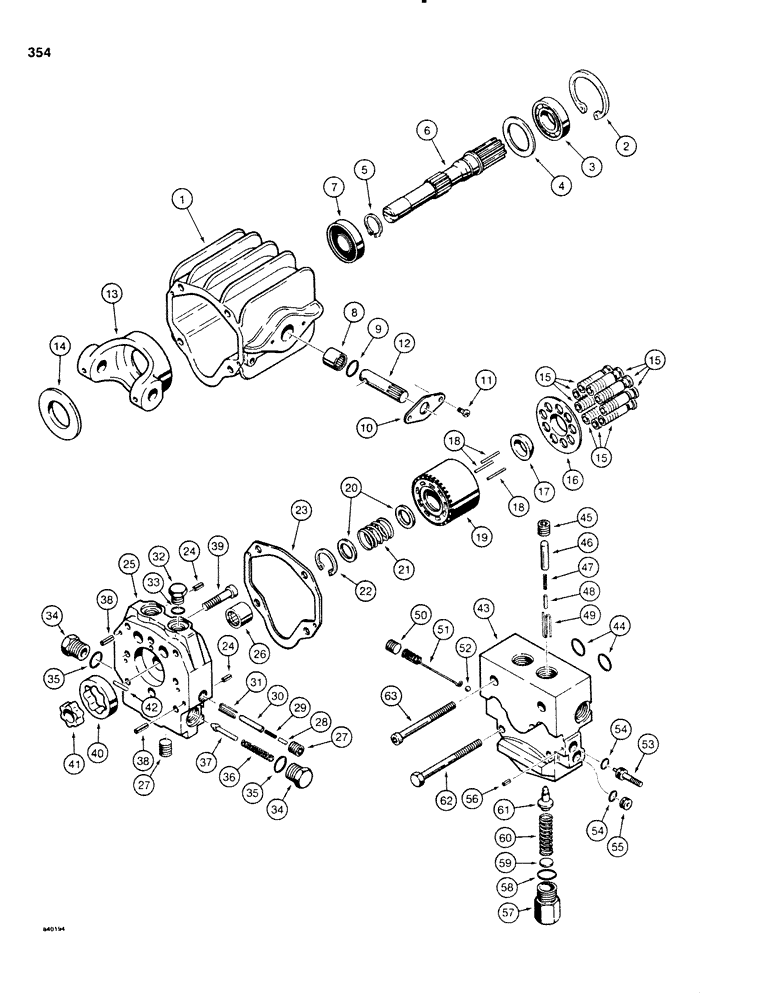

Запчасти Case SD100 (354) - H577536 LINE LAYER PUMP (35) - HYDRAULIC SYSTEMS

H577536

PUMP

ASSEMBLY - line layer, vickers No. TA6H-25B-10L-522, Includes: Ref. 1-63

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

2

A31078

SNAP RING,2.062", Int, #206

Brg, outer 2.062", Int, #206

1шт.

3

H256149

BEARING

- input shaft

1шт.

4

L30558

WASHER

SPACER - input bearing

1шт.

5

D46211

SNAP RING,#78, Ext

RING, Snap, , input shaft, outer #78, Ext

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - input

1шт.

7

D46213

SEAL

- input shaft

1шт.

Part of seal kit P/N H587535

1шт.

8

T32720

BEARING

- swash-plate bearing

2шт.

9

16202

O-RING,40544" ID x 13" OD x 1"

- swash-plate shaft

2шт.

Part of seal kit P/N H587535

1шт.

10

H256222

PLATE

- cover, swash-plate bearing

2шт.

11

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

MACHINE SCREW - Philips head, No. 10 - 24 NC x 3/8"

4шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - swash-plate

2шт.

13

H256214

YOKE

- swash-plate

1шт.

H588079

KIT

- cylinder block, pump, Includes: Ref. 14-22

1шт.

14

NSS

NOT SOLD SEPARAT

SWASH-PLATE - pistons

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - pistons

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - spherical

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - piston block

3шт.

19

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

THRUST WASHER - spring

2шт.

21

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

22

NSS

NOT SOLD SEPARAT

SNAP RING - block

1шт.

23

H204172

GASKET

- housing

1шт.

Part of seal kit P/N H587535

1шт.

24

138-215

LOCK PIN,3/16" x 3/8", Slotted

PIN, , housing alignment 3/16" x 3/8", Slotted

2шт.

H588038

VALVE PLATE ASSEMBLY - pump, Includes: Ref. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - input shaft, inner

1шт.

27

221-841

PLUG

- pipe, hex socket head

3шт.

28

H203760

VALVE SPRING

PIN - check valve

2шт.

29

H203760

VALVE SPRING

SPRING - check valve

2шт.

30

H203752

SPOOL

CHECK VALVE - pump

2шт.

31

H203745

GUIDE

- spring, check valve

2шт.

32

76349

PLUG,9/16" - 18 ORB

Check valve, Incl. Ref. 33 Hex Hd, 9/16"-18 ORB

2шт.

33

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.

Part of seal kit P/N H587535

1шт.

34

H204024

PLUG

- check

2шт.

36

H204040

SPRING

- check valve

1шт.

37

H204099

SPOOL

CHECK VALVE - pump

1шт.

38

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Housing alignment 3/16" x 1/2", Slotted

2шт.

39

61524

SCREW - hex socket head, 5/16" - 18 NC x 1-1/2"

2шт.

H204339

SEAL ASSY.

KIT - gerotor, Includes: Ref. 40-42

1шт.

40

NSS

NOT SOLD SEPARAT

ROTOR - outer

1шт.

41

NSS

NOT SOLD SEPARAT

ROTOR - inner

1шт.

42

H204081

KEY

- rotor

1шт.

43

H261925

HOUSING - transfer block

1шт.

44

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- housing

2шт.

Part of seal kit P/N H587535

1шт.

45

H203737

PLUG

- check valve, internal

2шт.

46

H203745

GUIDE

- spring, check valve

2шт.

47

H203752

SPOOL

CHECK VALVE - pump

2шт.

48

H203760

VALVE SPRING

SPRING - check valve

2шт.

49

H203778

AXLE PIN

PIN - check valve

2шт.

50

221-841

PLUG

- pipe, hex socket head

1шт.

51

H203984

VALVE SPRING

SPRING - push valve

1шт.

52

211-7

BALL,1/4" Dia

- push valve 1/4" Dia

1шт.

53

H203794

PLUNGER

- push valve

1шт.

54

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- plunger and plug

2шт.

55

D59070

PLUG

- special

1шт.

56

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, , Plunger lock 1/8" x 5/16", Slotted

1шт.

57

H203877

CAP

- relief valve

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- cap

1шт.

Part of seal kit P/N H587535

1шт.

59

H203869

SHIM,.020" Thk

Relief valve .020" Thk

1шт.

60

H256206

SPRING

- relief valve

1шт.

61

H203836

SPOOL

POPPET - relief valve

1шт.

62

26-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

- hex head, 5/16" - 18 NC x 4"

2шт.

63

61-556

BOLT - hex socket head, 5/16" - 18 NC x 3-1/2" Hex Soc Hd, 5/16"-18 x 3 1/2"

2шт.

H587535

SEAL ASSY.

KIT - seal, Includes: Refs. 7, 9, 23, 33, 35, 44 and 58

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

2шт.

Part of seal kit P/N H587535

1шт.
