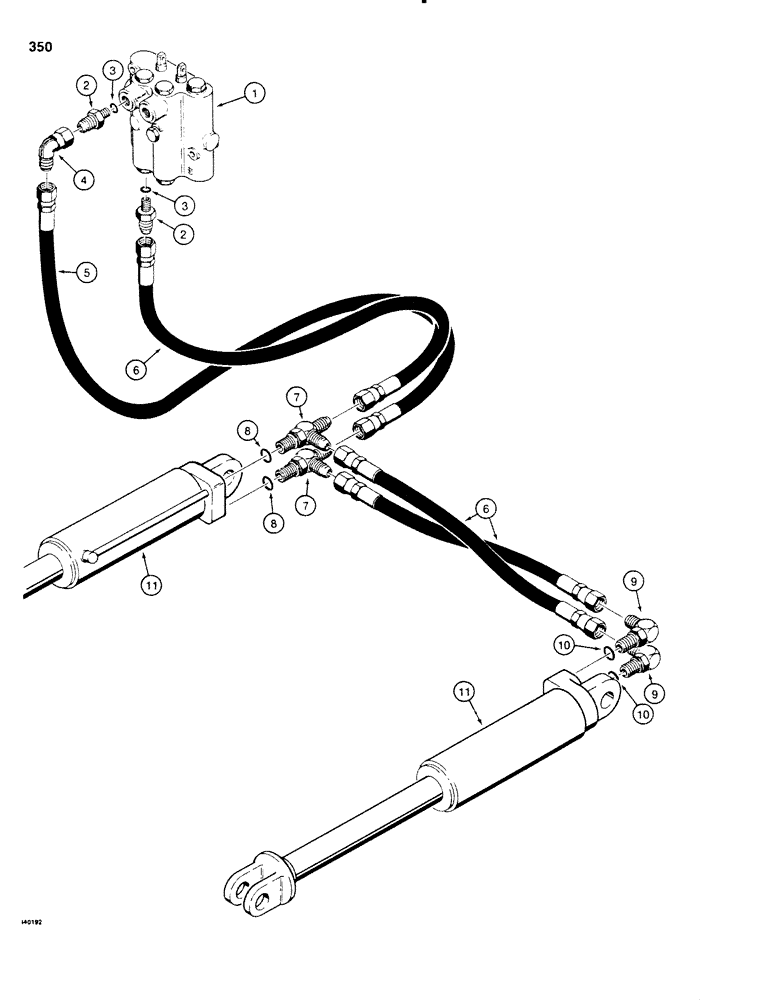

Запчасти Case SD100 (350) - LINE LAYER LIFT HYDRAULIC CIRCUIT, USED BEFORE SERIAL NUMBER 3700 (35) - HYDRAULIC SYSTEMS

1

H550079

LOCK VALVE

CONTROL VALVE - Cessna No. 31522-AL, parts list figure 52

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel, used with H174672 hose

1шт.

5

H174672

HYDRAULIC HOSE,9.52 mm ID x 609.60 mm, SAE 100R1

To closed End of Cylinder 9.52 mm ID x 609.60 mm, SAE 100R1

1шт.

6

R30835

HOSE ASSY.

HOSE - 19" (483 mm) long, to rod and closed, Serial Range: end-cylinder

3шт.

7

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes Ref. 8 3/4"-16, 37º x 3/4"-18, O-Ring Run

2шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 10

2шт.

11

H560730

CYLINDER

- line layer lift, parts list figure 366

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
