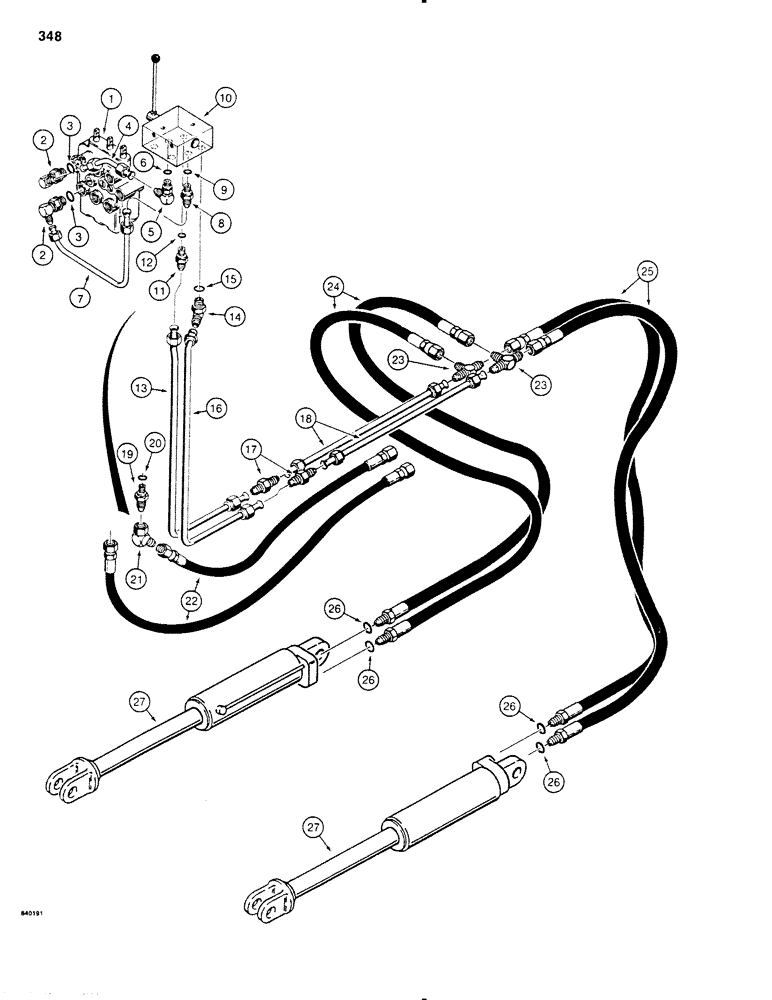

Запчасти Case SD100 (348) - LINE LAYER LIFT HYDRAULIC CIRCUIT, USED WITH H616763 SELECTOR VALVE AND THREE SPOOL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

H595041

VALVE

CONTROL VALVE - three spool, Cessna No. 30503-AAE, parts list figure 272

1шт.

2

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

4

H629659

TUBE,0.5" OD x 2.22, 2.22" L

- to "B" port on selector valve, top

1шт.

5

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, male, Includes: Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

H629675

TUBE,0.5" OD

- to "A" port on selector valve, bottom

1шт.

8

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

H616763

LOCK VALVE

SELECTOR VALVE - rotational, parts list figure 274

1шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, valve No. 2 port, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

13

H629667

TUBE,0.5" OD

- from No. 2 port to connector, if used

1шт.

14

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree. adjustable, male, valve No. 1 port, if used, Includes: Ref. 15

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

16

H629683

TUBE,0.5" OD

- from No. 1 port to connector, if used

1шт.

17

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, male, if used

2шт.

18

H562173

TUBE,0.5" OD x 18" L

- tube to hose, if used

2шт.

19

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, valve No. 1 port, used with ref. 22, if used, Includes: Ref. 20

1шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

21

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, swivel, valve No. 1 port, used with ref. 19 and 22, if used

1шт.

22

H205955

HYDRAULIC HOSE,9.52 mm ID x 1193.80 mm, SAE 100R1

Used with Ref. 19 and 20 in Place of Ref. 13 to 18, If Used 9.52 mm ID x 1193.80 mm, SAE 100R1

2шт.

23

218-594

TEE,3/4"-16, 37 Degree

- tube

2шт.

24

H240861

HOSE

- 13" (330 mm) long, to left-hand cylinder, if used

2шт.

25

H199364

HOSE

- 19" (483 mm) long, to right- hand cylinder or both cylinders, Includes: Ref. 26

2-4шт.

27

H560730

CYLINDER

- line layer lift, parts list figure 366

2шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
