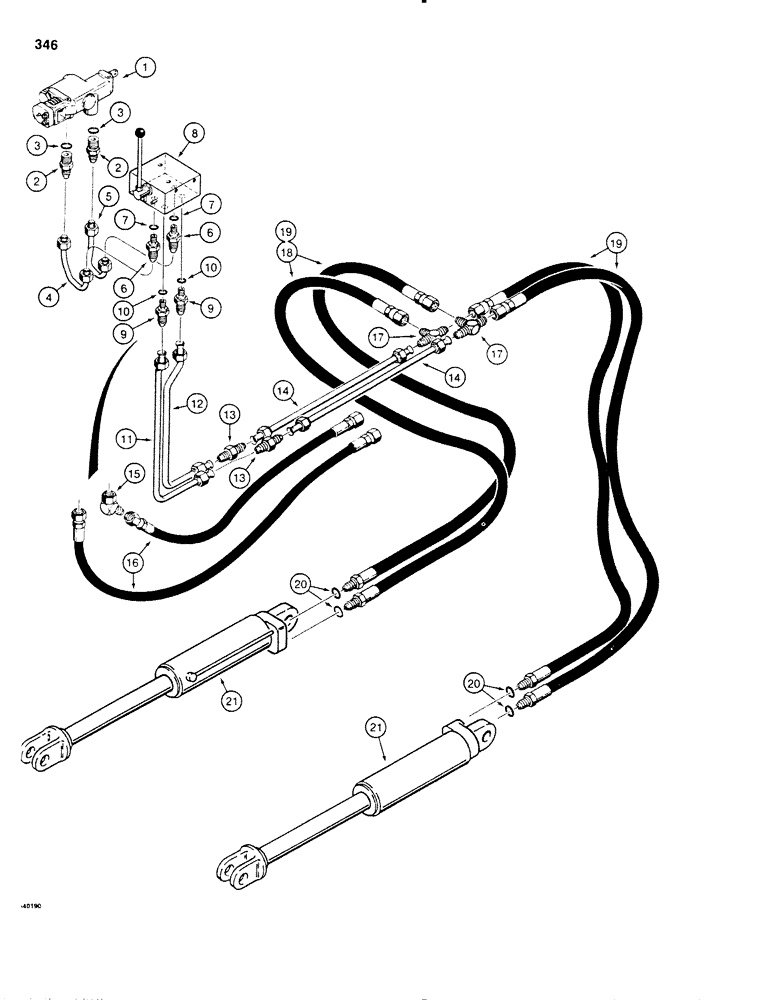

Запчасти Case SD100 (346) - LINE LAYER LIFT HYDRAULIC CIRCUIT, USED WITH H616763 SELECTOR VALVE AND ONE SPOOL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

H537647

LOCK VALVE

CONTROL VALVE - one spool, Cessna No. 30501-AZ, parts list figure 270

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

H616805

TUBE,0.5" OD x 4.88, 1.12" L

- valve to selector, rear

1шт.

5

H616813

TUBE,0.5" OD x 5.25, 1.12" L

- valve to selector, front

1шт.

6

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, Includes: Ref. 7

2шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

H616763

LOCK VALVE

SELECTOR VALVE - rotational, parts list figure 274

1шт.

9

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, Includes: Ref. 10

2шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

11

H562140

TUBE,0.5" OD x 15.25, 6.25" L

- valve to rod end of cylinder, if used

1шт.

12

H562157

TUBE,0.5" OD

- valve to closed end of cylinder, if used

1шт.

13

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, male, if used

2шт.

14

H562173

TUBE,0.5" OD x 18" L

- tube to hose, if used

2шт.

15

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, swivel, used with ref. 16, if used

1шт.

16

H205955

HYDRAULIC HOSE,9.52 mm ID x 1193.80 mm, SAE 100R1

Used in Place of Ref 11 to 14, If Used 9.52 mm ID x 1193.80 mm, SAE 100R1

2шт.

17

218-594

TEE,3/4"-16, 37 Degree

- tube

2шт.

18

H240861

HOSE

- 13" (330 mm) long, to left-hand cylinder. if used

2шт.

19

H199364

HOSE

- 19" (483 mm) long, to right-hand cylinder or both cylinders, Includes: Ref. 20

2-4шт.

21

H560730

CYLINDER

- line layer lift, parts list figure 366

2шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
