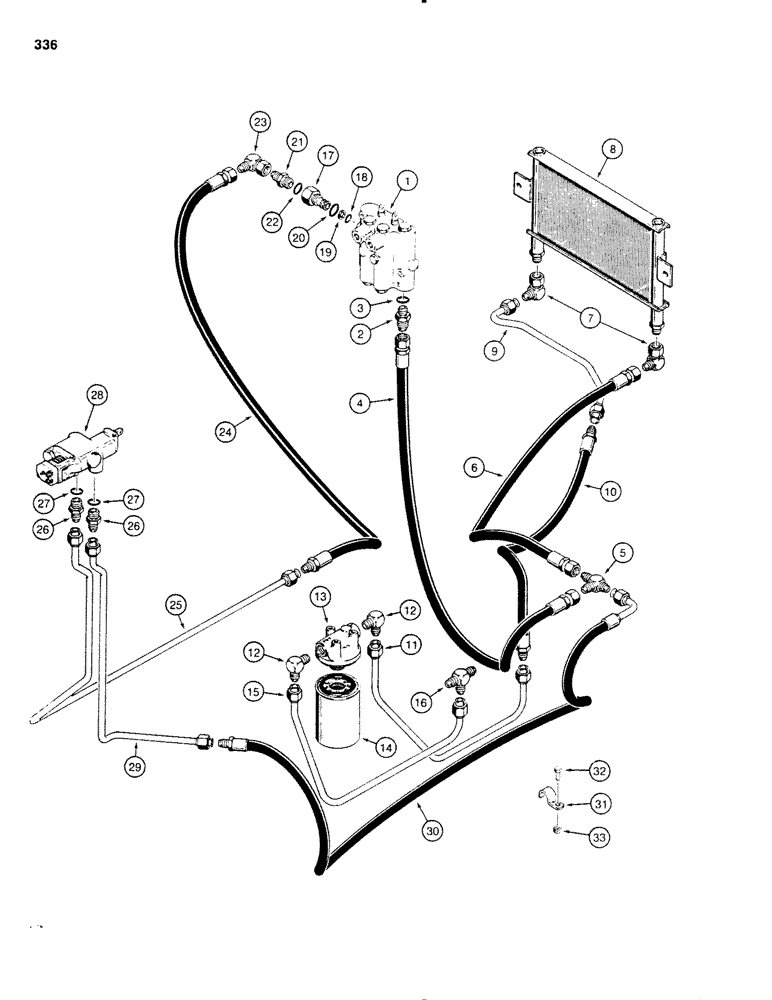

Запчасти Case SD100 (336) - LINE LAYER EQUIPMENT AND OIL COOLER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H550079

LOCK VALVE

CONTROL VALVE - Cessna No. 31522-AL, parts list figure 52

1шт.

2

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

1шт.

4

H215772

HOSE

- return, 39" (991 mm) long

1шт.

5

218-594

TEE,3/4"-16, 37 Degree

- tube

1шт.

6

H262048

HOSE ASSY.

HOSE - return, 39" (991 mm) long, Serial Range: tee-cooler

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

2шт.

8

H559609

COOLER, OIL

OIL COOLER - hydraulic, see figure 292 for mounting

1шт.

9

H560961

TUBE,0.5" OD

- cooler to hose

1шт.

10

H202606

HOSE ASSY.

HOSE - return, 20" (508 mm) long, Serial Range: tube-tube

1шт.

11

H571257

TUBE,0.5" OD

- hose to filter inlet

1шт.

12

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male

2шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, Includes: Ref. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

14

H311654

FILTER, ENGINE OIL

ELEMENT - filter hydraulic

1шт.

15

H580209

TUBE,0.625" OD x 15, 9.75" L

- return, filter to tee

1шт.

16

REF

INSTRUCTION

TEE - propulsion motor return, see figure 86

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - power beyond, Includes: Ref. 18-20

1шт.

18

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

19

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

20

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

21

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 22 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

23

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

24

H202101

ELECTRICAL WIRE

HOSE - pressure, 28" (711 mm) long

1шт.

25

H579565

TUBE,0.5" OD

- pressure, hose to valve, if used

1шт.

26

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 27 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

28

H537647

LOCK VALVE

CONTROL VALVE - one spool, Cessna No. 30501-AZ, parts list figure 270

1шт.

29

H579573

TUBE,0.5" OD

- return, valve to hose

1шт.

30

H241547

HOSE

- 90 degree tube end, 23" (584 mm) long, return

1шт.

31

H51763

CLAMP

- tube

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

33

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut - hex, self-locking, 5/16" - 18 NC

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
