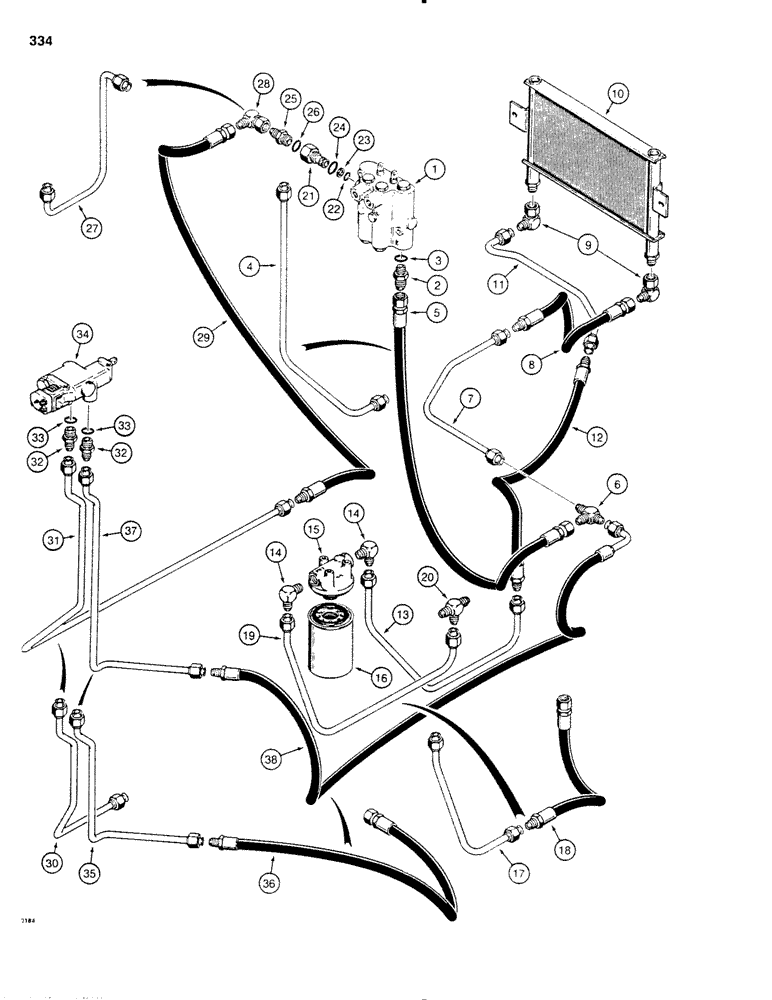

Запчасти Case SD100 (334) - LINE LAYER EQUIPMENT AND OIL COOLER HYD. CIRCUIT, USED BEFORE 30+4 S/N 4700 AND BEFORE 40+4 S/N 3600 (35) - HYDRAULIC SYSTEMS

1

H550079

LOCK VALVE

CONTROL VALVE - Cessna No. 31522-AL, parts list figure 52

1шт.

2

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

1шт.

4

H560052

TUBE,0.5" OD x 15.375, 6.437" L

- return, used on earlier tractors, if used

1шт.

5

H215772

HOSE

- return, 39" (991 mm) long, if used

1шт.

6

218-594

TEE,3/4"-16, 37 Degree

- tube

1шт.

7

H571216

TUBE,0.5" OD

- tee to hose , used on early 30+4 tractors only, if used

1шт.

7

H569905

TUBE - tee to hose, if used 0.5" OD

1шт.

8

H202317

HOSE - return, 25-1/2" (648 mm) long, Serial Range: tube-cooler

1шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

2шт.

10

H559609

COOLER, OIL

OIL COOLER - hydraulic, see figure 292 for mounting

1шт.

11

H560961

TUBE,0.5" OD

- cooler to hose

1шт.

12

H190058

HOSE

- return, 18" (457 mm) long, tube to tube, 30+4 only

1шт.

12

H202168

HOSE ASSY.

HOSE - return, 26" (660 mm) long, tube to tube, 40+4 only

1шт.

13

H571257

TUBE,0.5" OD

- hose to filter inlet, 30+4 only

1шт.

13

H569863

TUBE,0.5" OD

- hose to filter inlet, 40+4 only

1шт.

14

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male, Includes: Ref. 15, 16

2шт.

15

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

16

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

17

H571950

TUBE,0.5" OD

- return, filter to hose, 30+4 only

1шт.

18

H195263

HOSE

- tube to return tee, 9" (229 mm) long, 30+4 only

1шт.

19

H569939

TUBE,0.5" OD

- return, filter to tee, 40+45 only

1шт.

20

REF

INSTRUCTION

TEE - propulsion motor return, see figure 84

1шт.

D61608

SLEEVE

PLUG ASSEMBLY - power beyond

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

H587345

SEAL ASSY.

SEAL KIT - plug, power beyond, Includes: Ref. 22-24

1шт.

22

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

-small

1шт.

23

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

24

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

25

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

-adapter

1шт.

27

H560045

TUBE - pressure, valve to hose, if used 0.5" OD x 8.187, 3.75" L

1шт.

28

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel, used with H202101 hose only

1шт.

29

H202101

ELECTRICAL WIRE

HOSE - pressure, 28" (711 mm) long, used in place of H560045 tube

1шт.

30

H562116

TUBE,0.5" OD

- pressure, hose to valve, if used

1шт.

31

H579565

TUBE,0.5" OD

- pressure, hose to valve, if used

1шт.

32

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 33 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

34

H537647

LOCK VALVE

CONTROL VALVE - one spool, Cessna No. 30501-AZ, parts list figure 270

1шт.

35

H562124

TUBE,0.5" OD

- return, valve to hose, if used

1шт.

36

H196097

HOSE,0.38" ID x 54.00"

Nipple, Pipe 0.38" ID x 54.00"

1шт.

37

H579573

TUBE,0.5" OD

- return, valve to hose, if used

1шт.

38

H241547

HOSE

- 90 degree tube end, 23" (584 mm) long, return, if used

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
