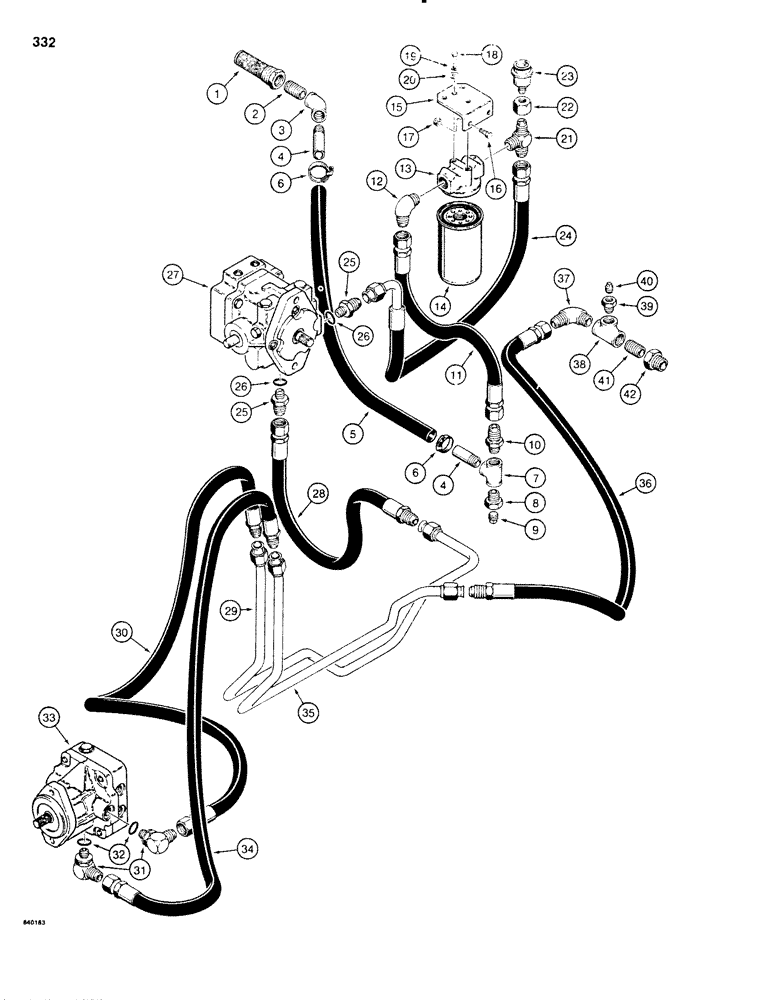

Запчасти Case SD100 (332) - LINE LAYER HYDRAULIC SUCTION AND RETURN CIRCUIT, USED ON 30+4 SPECIAL SERIAL NUMBER 3761 AND AFTER (35) - HYDRAULIC SYSTEMS

1

H599720

FILTER

SCREEN -suction filter, reservoir, 1" NPT

1шт.

2

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT x 1-1/2" long

1шт.

3

221-370

ELBOW

- 45 degree, female, 1" NPT

1шт.

4

H195271

NIPPLE, LUBE

NIPPLE - special

2шт.

5

H208165

HOSE

- suction, 30" (762 mm) long

1шт.

6

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

7

221-426

FITTING,1" NPT

TEE - pipe, 1" NPT

1шт.

8

221-1604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducing, 1" NPT to 3/4" NPT

1шт.

9

221-48

PLUG

PIPE PLUG - square head, 3/4" NPT

1шт.

10

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER - straight, male

1шт.

11

H256560

HYDRAULIC HOSE,19.05 mm ID x 482.60 mm, SAE 100R1

- Suction 19.05 mm ID x 482.60 mm, SAE 100R1

1шт.

12

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male

1шт.

13

H616508

FILTER HEAD

BASE - filter, hydraulic

1шт.

14

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter, hydraulic

1шт.

15

H191528

BRACKET

- filter mounting

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

20

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

21

218-1105

TEE,1 1/16"-12, 37º x 7/8"-14, 37º x 3/4"-14, NPTF Br

- suction

1шт.

22

H207134

CYLINDER END CAP

CAP - special

1шт.

23

H287466

GAUGE ASSY.

INDICATOR - vacuum, tee

1шт.

24

H267112

HOSE ASSY.

HOSE - suction, 26" (660 mm) long with 90 degree tube end

1шт.

25

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, male, Includes: Ref. 26

2шт.

27

REF

INSTRUCTION

PUMP ASSEMBLY -line layer, Sunstrand, parts list figure 358

1шт.

28

H287607

HOSE

- drain, 19" (457 mm) long, Serial Range: pump-tube

1шт.

29

H603233

TUBE ASSY.,0.75" OD

TUBE - drain, hose to hose

1шт.

30

H296004

HYDRAULIC HOSE,19.05 mm ID x 1651.00 mm, SAE 100R2

- Drain 19.05 mm ID x 1651.00 mm, SAE 100R2

1шт.

31

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, male, Includes: Ref. 32

2шт.

33

REF

INSTRUCTION

MOTOR ASSEMBLY - line layer, sundstrand, parts list figure 364

1шт.

34

H284380

HOSE - motor drain, 52" (1321 mm) long

1шт.

35

H603241

TUBE,0.75" OD

- motor drain, hose to hose

1шт.

36

H284356

HOSE

- drain, 41" (1041 mm) long

1шт.

37

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male

1шт.

38

221-453

TEE

- pipe, reducing

1шт.

39

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - pipe, reducing, 3/4" NPT to 1/2" NPT

1шт.

40

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PIPE PLUG - square head, 1/2" NPT

1шт.

41

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT x 1-1/2" long

1шт.

42

221-609

REDUCER,Hex, 1 1/4" x 1" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 1" NPT

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
