Запчасти Case SD100 (328) - LINE LAYER HYDRAULIC SUCTION AND RETURN CIRCUIT, USED BEFORE 30+4 SPECIAL SERIAL NUMBER 3751 (35) - HYDRAULIC SYSTEMS

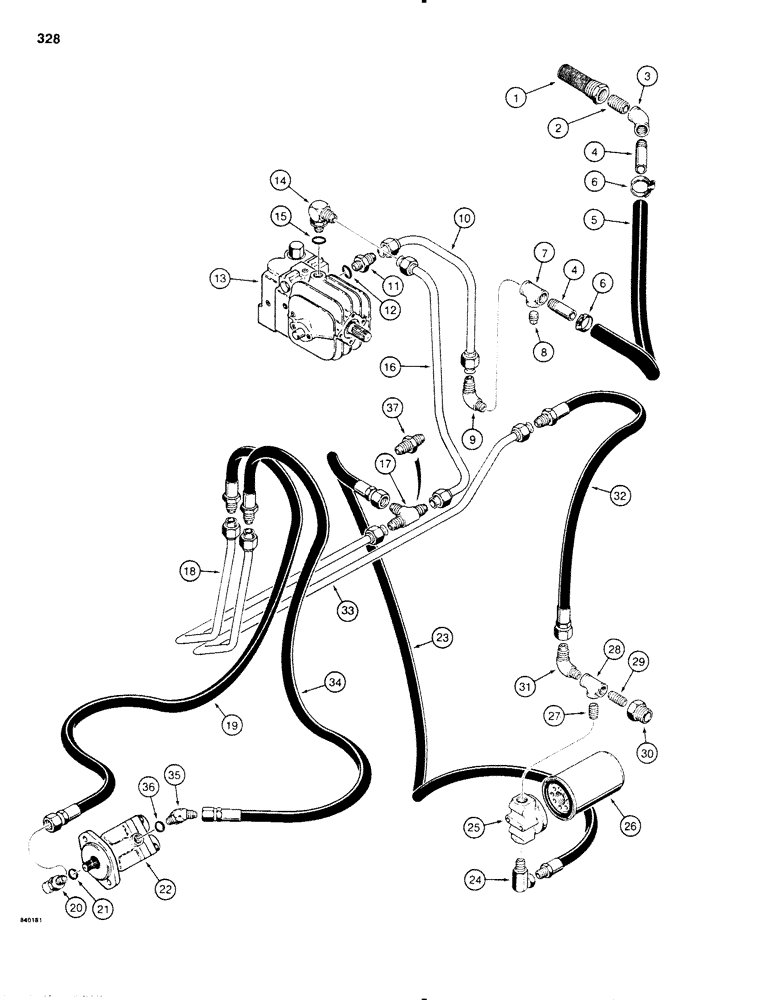

Схема запчастей Case SD100 - (328) - LINE LAYER HYDRAULIC SUCTION AND RETURN CIRCUIT, USED BEFORE 30+4 SPECIAL SERIAL NUMBER 3751 (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

H599720

FILTER

SCREEN - suction filter, reservoir, 1" NPT

1шт.

2

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT x 1-1/2" long

1шт.

3

221-370

ELBOW

- 45 degree, female, 1" NPT

1шт.

4

H195271

NIPPLE, LUBE

NIPPLE - special

2шт.

5

H208165

HOSE

- suction, 30" (762 mm) long

1шт.

6

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

7

221-453

TEE

- pipe, reducing

1шт.

8

221-48

PLUG

PIPE PLUG - square head, 3/4" NPT

1шт.

9

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male

1шт.

10

H563452

TUBE - suction, hose to pump, Includes: Ref. 11, 12 0.625" OD x 8.25, 4" L

1шт.

11

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

13

H577536

PUMP

ASSEMBLY - line layer, Vickers, parts list figure 354

1шт.

14

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 15

1шт.

16

H572263

TUBE - pump drain 0.625" OD

1шт.

17

218-595

TEE,7/8"-14, 37 Degree

- tube, male, if used, see ref. 37

1шт.

18

H563502

TUBE - motor drain 0.625" OD

1шт.

19

H209098

HOSE ASSY.

HOSE - motor drain, 48" (1219 mm) long, if used

1шт.

19

H238865

HOSE

- motor drain, 48" (1219 mm) long, nylon, if used

1шт.

20

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, male, Includes: Ref. 21

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

22

H575282

SPARE PART

MOTOR ASSEMBLY - line layer, vickers, parts list figure 362

1шт.

23

H88567

HOSE - motor drain, 47" (1194 mm) long, if used, see ref. 37

1шт.

24

218-962

ELBOW,90 Degree, .093" Restrictor

- 90 degree, .093" orifice, if used, see ref. 37

1шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, Includes: Ref. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

26

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

27

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 3/4" NPT x 1-1/8" long, if used

1шт.

28

221-443

TEE

- pipe

1шт.

29

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT x 1-3/8" long

1шт.

30

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 3/4" NPT

1шт.

31

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male

1шт.

32

H205963

HOSE - motor drain, 27" (686 mm) long, Serial Range: tee-tube

1шт.

33

H563510

TUBE,0.5" OD

- motor drain, hose to hose

1шт.

34

H209114

HOSE

- motor drain, 69" (1753 mm) long, Serial Range: tube-motor

1шт.

35

218-5325

ELBOW,45 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 45 degree, adjustable, swivel, Includes: Ref. 36

1шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

37

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - tube, used in place of refs. 17, 23, and 24 when tractor is equipped with a backhoe, if used

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
