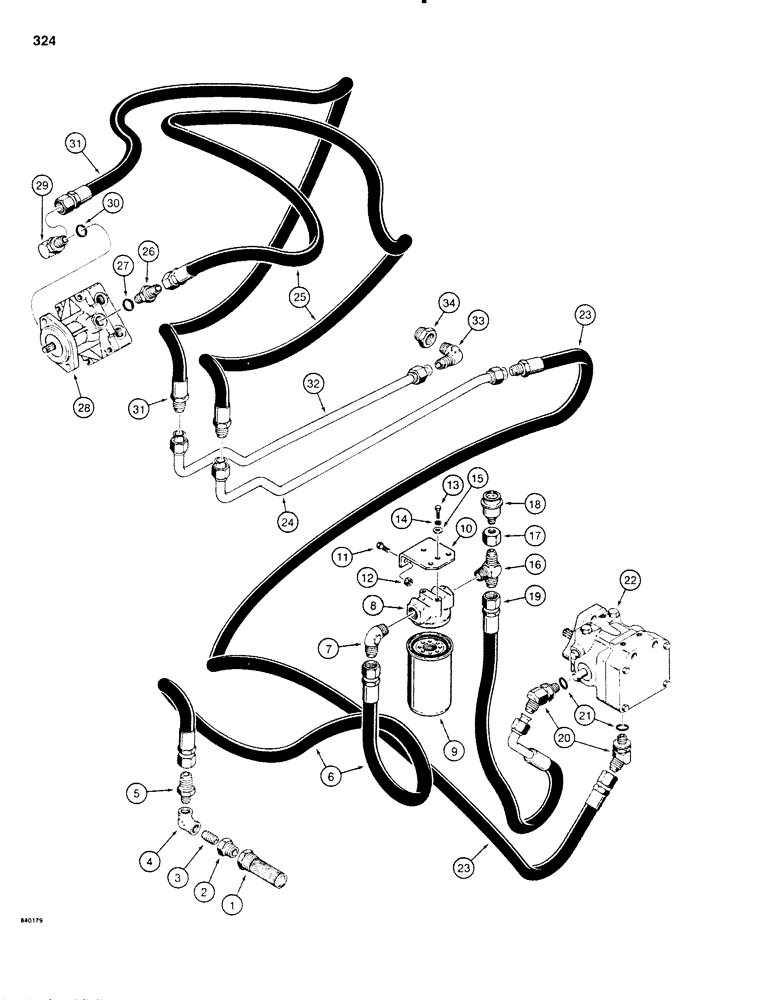

Запчасти Case SD100 (324) - LINE LAYER HYDRAULIC SUCTION AND RETURN CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H599720

FILTER

SCREEN - suction filter, reservoir

1шт.

2

221-1604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducting, 1" NPT to 3/4" NPT

1шт.

3

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT x 3/8" long

1шт.

4

221-369

ELBOW UNION,45 Degree, 3/4" NPT

ELBOW - 90 degree pipe, female, 3/4" NPT

1шт.

5

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

6

H265454

HOSE - suction, 34" (864 mm) long

7шт.

7

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male

1шт.

8

H616508

FILTER HEAD

BASE - filter, hydraulic

1шт.

9

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter, hydraulic

1шт.

10

H191528

BRACKET

- filter mounting

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

16

218-1105

TEE,1 1/16"-12, 37º x 7/8"-14, 37º x 3/4"-14, NPTF Br

- suction

1шт.

17

H207134

CYLINDER END CAP

CAP - special

1шт.

18

H287466

GAUGE ASSY.

INDICATOR - vacuum, tee

1шт.

19

H267112

HOSE ASSY.

HOSE - suction, 26" (660 mm) long

1шт.

20

218-5325

ELBOW,45 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 45 degree, adjustable, swivel, Includes: Ref. 21

2шт.

22

REF

INSTRUCTION

PUMP ASSEMBLY - line layer, Sundstrand, parts list figure 358

1шт.

23

H284356

HOSE

- drain, 41" (1041 mm) long

1шт.

24

H601997

TUBE,0.75" OD

- drain

1шт.

25

H296004

HYDRAULIC HOSE,19.05 mm ID x 1651.00 mm, SAE 100R2

- Drain 19.05 mm ID x 1651.00 mm, SAE 100R2

1шт.

26

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, male, Includes: Ref. 27

1шт.

28

REF

INSTRUCTION

MOTOR ASSEMBLY - line layer, sundstrand, parts list figure 364

1шт.

29

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, male, Includes: Ref. 30

1шт.

31

H284380

HOSE - motor drain, 52" (1321 mm) long

1шт.

32

H602003

TUBE,0.75" OD

- motor drain

1шт.

33

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male

1шт.

34

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - pipe, recducing, 1-1/4" NPT to 3/4" NPT

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
