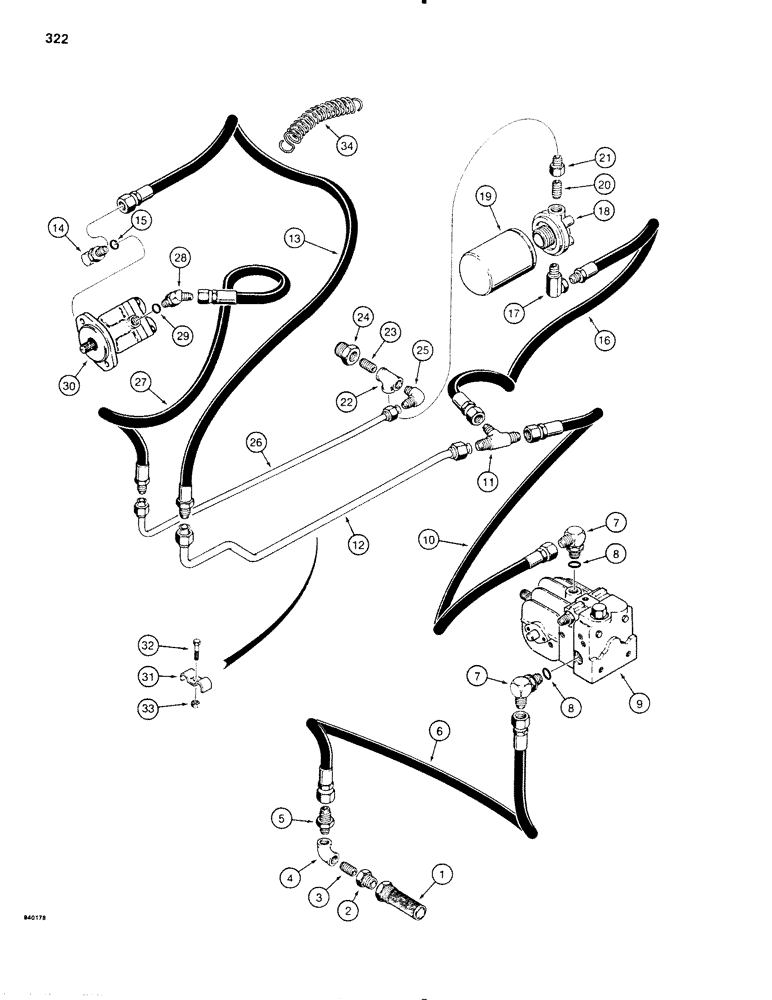

Запчасти Case SD100 (322) - LINE LAYER HYD. SUCTION & RETURN CIRCUIT, USED ON 30+4 S/N 4700 TO 5465 & ON 40+4 S/N 3600 TO 4045 (35) - HYDRAULIC SYSTEMS

1

H599720

FILTER

SCREEN - suction filter, reservoir

1шт.

2

221-1604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducing, 1" NPT to 3/4" NPT

1шт.

3

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT

1шт.

4

221-369

ELBOW UNION,45 Degree, 3/4" NPT

ELBOW - 90 degree pipe, female, 3/4" NPT

1шт.

5

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

6

H195958

HOSE,45.00", SAE 100R1

Suction, 30+4 only 45.00", SAE 100R1

1шт.

6

R25281

HOSE

- suction, 50" (1270 mm) long, 40+4 only

1шт.

7

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, Includes: Ref. 8

2шт.

9

H577536

PUMP

ASSEMBLY - line layer, Vickers, parts list figure 354

1шт.

10

R25281

HOSE

- pump drain, 50" (1270 mm) long, 30+4 only

1шт.

10

H195941

HOSE

- pump drain, 55" (1397 mm) long, 40+4 only

1шт.

11

218-595

TEE,7/8"-14, 37 Degree

- tube, male

1шт.

12

H562439

TUBE,0.625" OD

- motor drain to tee

1шт.

13

H209098

HOSE ASSY.

HOSE - motor drain, 48" (1219 mm) long

1шт.

14

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree. adjustable

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

16

H55152

HOSE ASSY.

HOSE - DRAIN, 16" (406 mm) long, Includes: Ref. 17

1шт.

17

218-962

ELBOW,90 Degree, .093" Restrictor

- 90 degree, .093" orifice

1шт.

18

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

19

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

20

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2" NPT x 1-1/8" long, if used

1шт.

20

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - pipe, 1/2" NPT x 2-1/2" long, if used

1шт.

21

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - pipe, reducing, 3/4" NPT to 1/2" NPT

1шт.

22

221-425

FITTING,3/4" NPT

TEE - pipe, 3/4" NPT

1шт.

23

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT x 1-3/8" long

1шт.

24

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - pipe, reducing, 1-1/4" NPT to 3/4" NPT

1шт.

25

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, male

1шт.

26

H562421

TUBE,0.5" OD

- motor drain

1шт.

27

H209114

HOSE

- motor drain, 69" (1753 mm) long

1шт.

28

218-5325

ELBOW,45 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 45 degree, adjustable, swivel, Includes: Ref. 29

1шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

30

H575282

SPARE PART

MOTOR ASSEMBLY - line layer, Vickers, parts list figure 362

1шт.

31

H59345

CLAMP

- tube

3шт.

32

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

33

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

34

H52548

SPRING

- hose carrier, if used

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
