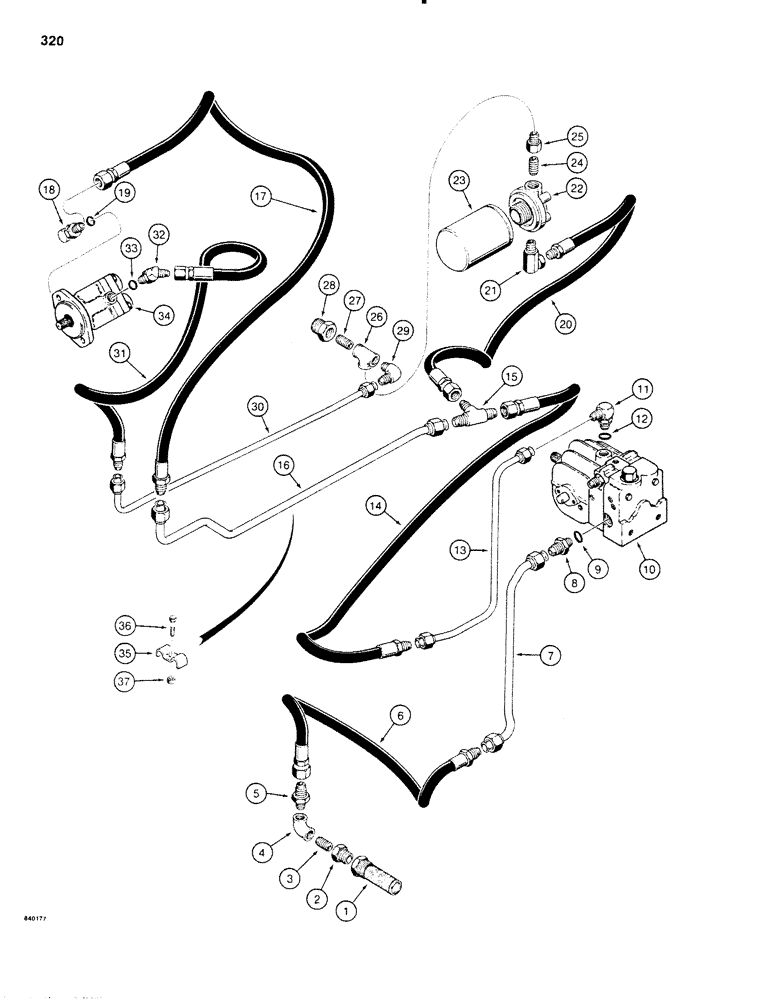

Запчасти Case SD100 (320) - LINE LAYER HYDRAULIC SUCTION AND RETURN CIRCUIT, USED BEFORE 30+4 S/N 4700 AND BEFORE 40+4 S/N 3600 (35) - HYDRAULIC SYSTEMS

1

H599720

FILTER

SCREEN - suction filter, reservoir

1шт.

2

221-1604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, reducing, 1" NPT to 3/4" NPT

1шт.

3

221-221

PIPE,Nipple, 3/4" NPT x 5"

1шт.

4

221-369

ELBOW UNION,45 Degree, 3/4" NPT

ELBOW - 90 degree pipe, female, 3/4" NPT

1шт.

5

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight mali

1шт.

6

H202119

HOSE ASSY.

HOSE - suction, 27" (626 mm) long, 30+4 only

1шт.

6

D24565

HOSE

- suction, 24" (610 mm) long, 40+4 only

1шт.

7

H562603

TUBE,0.625" OD

- suction, hose to pump, 30+4 only

1шт.

7

H569830

TUBE - suction, hose to pump, 40+4 only 0.625" OD x 16.375, 2.75" L

1шт.

8

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male, Incl. Ref. 9 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

10

H577536

PUMP

ASSEMBLY - line layer, Vickers, parts list figure 354

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 12

1шт.

13

H571240

TUBE,0.5" OD

- pump drain, 30+4 only

1шт.

13

H571265

TUBE - pump drain, 40+4 only 0.5" OD

1шт.

14

H209106

HOSE - pump drain, 22" (599 mm) long

1шт.

15

218-595

TEE,7/8"-14, 37 Degree

- tube, male

1шт.

16

H562439

TUBE,0.625" OD

- motor drain

1шт.

17

H209098

HOSE ASSY.

HOSE - motor drain, 48" (1219 mm) long

1шт.

18

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, Includes: Ref. 19

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

20

H55152

HOSE ASSY.

HOSE - drain, 16" (406 mm) long

1шт.

21

218-962

ELBOW,90 Degree, .093" Restrictor

- 90 degree, .093" orifice

1шт.

22

NSS

NOT SOLD SEPARAT

BASE - filter, hydraulic

1шт.

23

H311654

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic

1шт.

24

221-44

NIPPLE - pipe, 1/2" NPT

1шт.

25

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - pipe, reducing

1шт.

26

221-425

FITTING,3/4" NPT

TEE - pipe, 3/4" NPT

1шт.

27

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" NPT

1шт.

28

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - pipe, reducing

1шт.

29

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, male

1шт.

30

H562421

TUBE,0.5" OD

- motor drain

1шт.

31

H209114

HOSE

- motor drain, 69" (1753 mm) long

1шт.

32

218-5325

ELBOW,45 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 45 degree, adjustable, swivel, Includes: Ref. 33

1шт.

33

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

34

H575282

SPARE PART

MOTOR ASSEMBLY - line layer, Vickers, parts list figure 362

1шт.

35

H59345

CLAMP

- tube

1шт.

36

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

37

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
