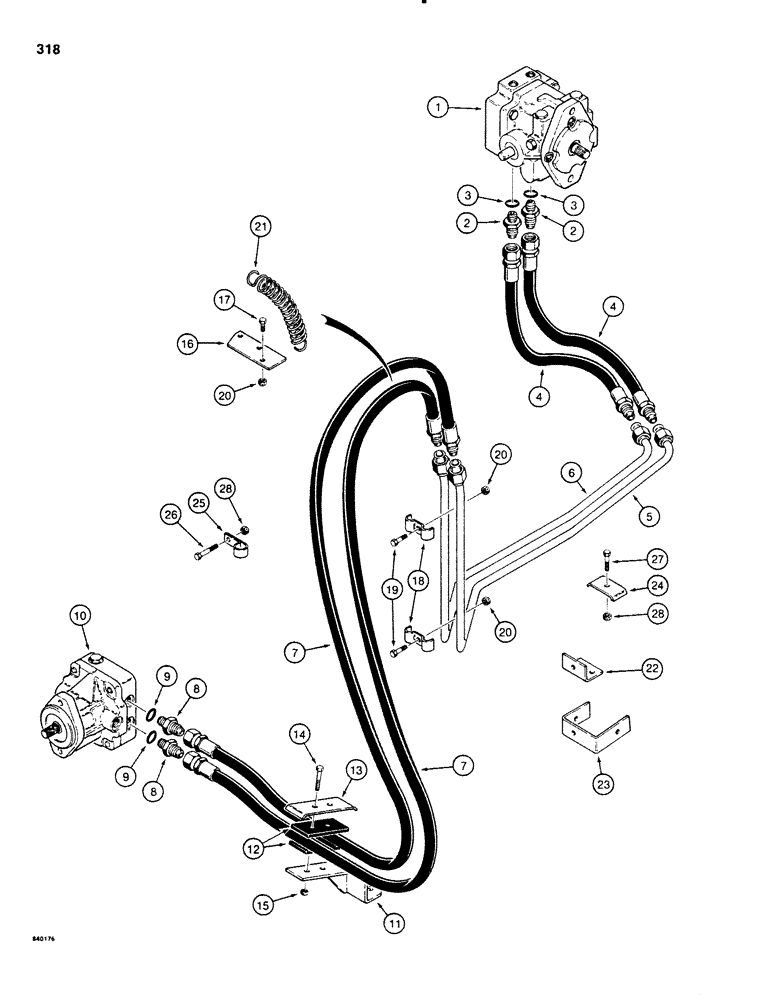

Запчасти Case SD100 (318) - LINE LAYER HYDRAULIC PUMP TO MOTOR PRESSURE CIRCUIT, USED ON 30+4 SPECIAL SERIAL NO. 3761 AND AFTER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP ASSEMBLY - line layer Sundstrand, parts list figure 358
1шт.
2
218-5066
HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB
CONNECTOR, HYD., , straight, male, Incl. Ref. 3 7/8"-14, 37º x 3/4"-16, O-Ring
2шт.
4
D24565
HOSE
- pressure, 24" (610 mm) long, Serial Range: pump-tube
2шт.
5
H603225
TUBE ASSY.,0.625" OD
TUBE - pressure, hose to hose
1шт.
6
H603217
TUBE,0.625" OD
- pressure, hose to hose
1шт.
7
H202036
HYDRAULIC HOSE,12.70 mm ID x 1752.60 mm, SAE 100R2
Tube to Motor 12.70 mm ID x 1752.60 mm, SAE 100R2
2шт.
8
218-5066
HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB
CONNECTOR, HYD., , straight, male, Incl. Ref. 9 7/8"-14, 37º x 3/4"-16, O-Ring
2шт.
10
REF
INSTRUCTION
MOTOR ASSEMBLY - line layer, Sundstrand, parts list figure 364
1шт.
11
H57558
BRACKET - hose support, see figure 372 for mounting
1шт.
12
H202259
PAD
CUSHION - rubber
2шт.
13
H202234
CLAMP
- hose, motor return
1шт.
14
113-121
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
16
H240556
PLATE - hose support, if used
1шт.
17
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
18
H59345
CLAMP
- tube
2шт.
19
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
2шт.
21
H52548
SPRING
- hose carrier, if used
1шт.
22
H287367
BRACKET - tube clamp, if used
1шт.
23
H287359
BRACKET - tube clamp, if used
1шт.
24
H239061
CLAMP
- hose or tube, if used
4шт.
25
H242818
CLAMP
- hose, motor return, if used
1шт.
26
113-121
BOLT,Hex, 5/16" - 18 x 2", Gr 5
If used Hex, 5/16"-18 x 2", G5
1шт.
27
113-122
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
If used Hex, 5/16"-18 x 1 1/2", G5
4шт.
3
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, adapter
1шт.
9
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, adapter
1шт.
Выбрано товаров: 28
